Resistors / Metal Glaze/Thick Film Resistors / MCR01MRTF5602
Datasheets
MCR01MRTF5602 by: ROHM Semiconductor

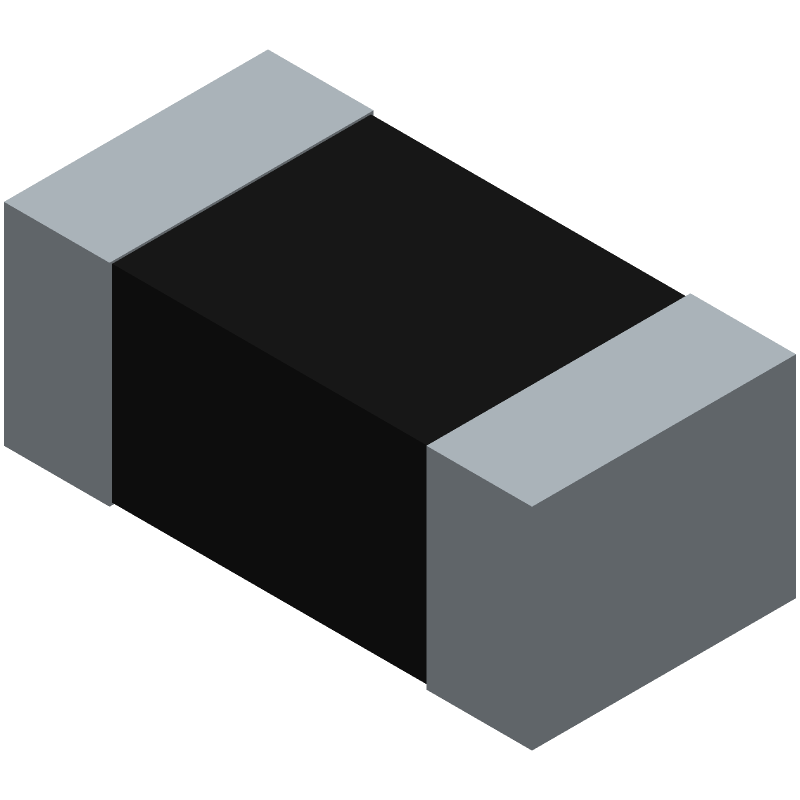

Fixed Resistor, Metal Glaze/thick Film, 0.063W, 56000ohm, 50V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0402, CHIP

Part Details for MCR01MRTF5602 by ROHM Semiconductor

Results Overview of MCR01MRTF5602 by ROHM Semiconductor

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

MCR01MRTF5602 Information

MCR01MRTF5602 by ROHM Semiconductor is a Metal Glaze/Thick Film Resistor.
Metal Glaze/Thick Film Resistors are under the broader part category of Resistors.

Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.

Price & Stock for MCR01MRTF5602

Part # Distributor Description Stock Price Buy
DISTI # MCR01MRTF5602
Avnet Asia Res Thick Film 0402 56K Ohm 1% 1/16W ?100ppm/?C Molded SMD Paper T/R (Alt: MCR01MRTF5602) RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 24 Weeks, 0 Days 0
RFQ
CoreStaff Co Ltd RoHS(Ship within 1day) - D/C 2023 Date Code: 2023 49800
  • 1 $0.0080
  • 4,000 $0.0040
  • 5,000 $0.0040
  • 10,000 $0.0040
  • 20,000 $0.0030
  • 30,000 $0.0030
$0.0030 / $0.0080 Buy Now
LCSC 63mW Thick Film Resistors 50V 100ppm/ 1% 56k 0402 Chip Resistor - Surface Mount ROHS 4100
  • 100 $0.0032
  • 1,000 $0.0024
  • 3,000 $0.0019
  • 10,000 $0.0017
  • 50,000 $0.0015
$0.0015 / $0.0032 Buy Now

Part Details for MCR01MRTF5602

MCR01MRTF5602 CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

MCR01MRTF5602 Part Data Attributes

Parametric Data
MCR01MRTF5602 ROHM Semiconductor
Buy Now Datasheet
Compare Parts:
MCR01MRTF5602 ROHM Semiconductor Fixed Resistor, Metal Glaze/thick Film, 0.063W, 56000ohm, 50V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0402, CHIP
Rohs Code Yes
Part Life Cycle Code Obsolete
Ihs Manufacturer ROHM CO LTD
Package Description CHIP
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8533.21.00.30
Samacsys Manufacturer ROHM Semiconductor
Construction Chip
JESD-609 Code e3
Mounting Feature SURFACE MOUNT
Number of Terminals 2
Operating Temperature-Max 155 °C
Operating Temperature-Min -55 °C
Package Height 0.35 mm
Package Length 1 mm
Package Shape RECTANGULAR PACKAGE
Package Style SMT
Package Width 0.5 mm
Packing Method TR, PAPER, 7 INCH
Rated Power Dissipation (P) 0.063 W
Rated Temperature 70 °C
Reference Standard TS 16949
Resistance 56000 Ω
Resistor Type FIXED RESISTOR
Size Code 0402
Surface Mount YES
Technology METAL GLAZE/THICK FILM
Temperature Coefficient 100 ppm/°C
Terminal Finish Tin (Sn) - with Nickel (Ni) barrier
Terminal Shape WRAPAROUND
Tolerance 1%
Working Voltage 50 V

Alternate Parts for MCR01MRTF5602

This table gives cross-reference parts and alternative options found for MCR01MRTF5602. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MCR01MRTF5602, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
CR-02FP6---56K Viking Tech Corp Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.125W, 56000ohm, 50V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0402, CHIP MCR01MRTF5602 vs CR-02FP6---56K
RMCS0402FT56K0 SEI Stackpole Electronics Inc Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.063W, 56000ohm, 50V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0402, CHIP, ROHS COMPLIANT MCR01MRTF5602 vs RMCS0402FT56K0
MCWR04X5602FTL SPC Multicomp $0.0204 Fixed Resistor, Metal Glaze/thick Film, 0.0625W, 56000ohm, 50V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0402, CHIP MCR01MRTF5602 vs MCWR04X5602FTL
WR04X5602FDLV Walsin Technology Corporation Check for Price Fixed Resistor, 0.0625W, 56000ohm, 50V, 1% +/-Tol, -100,100ppm/Cel, 0402, MCR01MRTF5602 vs WR04X5602FDLV
CR0402TT100Y56K+/-1% Precision Resistive Products Inc Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.0625W, 56000ohm, 50V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0402, CHIP, LEAD FREE MCR01MRTF5602 vs CR0402TT100Y56K+/-1%
CR0402-16W-5602FT VENKEL LTD Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.063W, 56000ohm, 50V, 1% +/-Tol, -100,100ppm/Cel, 0402 MCR01MRTF5602 vs CR0402-16W-5602FT
232270685603L YAGEO Corporation Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.0625W, 56000ohm, 50V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0402, CHIP, ROHS COMPLIANT MCR01MRTF5602 vs 232270685603L
RMCH10K563FTH Kamaya Inc Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.125W, 56000ohm, 50V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0402, CHIP MCR01MRTF5602 vs RMCH10K563FTH
RMNW10K5602FTH Kamaya Inc Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.1W, 56000ohm, 50V, 1% +/-Tol, -100,100ppm/Cel, 0402, MCR01MRTF5602 vs RMNW10K5602FTH
9C04021A5602FKPF3 YAGEO Corporation Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.0625W, 56000ohm, 50V, 1% +/-Tol, -100,100ppm/Cel, 0402, MCR01MRTF5602 vs 9C04021A5602FKPF3
