Resistors / Metal Glaze/Thick Film Resistors / MCR03EZPFX3601
Datasheets
MCR03EZPFX3601 by: ROHM Semiconductor

Fixed Resistor, Metal Glaze/thick Film, 0.1W, 3600ohm, 50V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0603, CHIP

Part Details for MCR03EZPFX3601 by ROHM Semiconductor

Results Overview of MCR03EZPFX3601 by ROHM Semiconductor

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

MCR03EZPFX3601 Information

MCR03EZPFX3601 by ROHM Semiconductor is a Metal Glaze/Thick Film Resistor.
Metal Glaze/Thick Film Resistors are under the broader part category of Resistors.

Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.

Price & Stock for MCR03EZPFX3601

Part # Distributor Description Stock Price Buy
Bristol Electronics   35000
RFQ
DISTI # MCR03EZPFX3601
Avnet Abacus Res Thick Film 0603 36K Ohm 1 110W 100ppmC Molded SMD SMD Paper TR (Alt: MCR03EZPFX3601) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 112 Weeks, 0 Days Abacus - 0
Buy Now

Part Details for MCR03EZPFX3601

MCR03EZPFX3601 CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

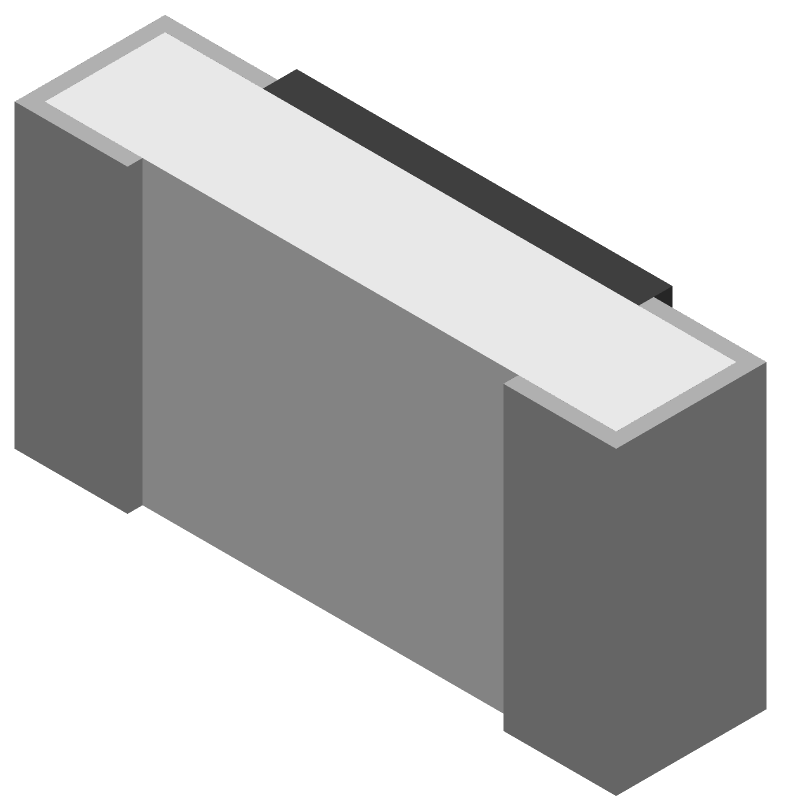

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

MCR03EZPFX3601 Part Data Attributes

Parametric Data
MCR03EZPFX3601 ROHM Semiconductor
Buy Now Datasheet
Compare Parts:
MCR03EZPFX3601 ROHM Semiconductor Fixed Resistor, Metal Glaze/thick Film, 0.1W, 3600ohm, 50V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0603, CHIP
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer ROHM CO LTD
Package Description CHIP
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8533.21.00.30
Samacsys Manufacturer ROHM Semiconductor
Construction Rectangular
JESD-609 Code e3
Mounting Feature SURFACE MOUNT
Number of Terminals 2
Operating Temperature-Max 155 °C
Operating Temperature-Min -55 °C
Package Height 0.45 mm
Package Length 1.6 mm
Package Shape RECTANGULAR PACKAGE
Package Style SMT
Package Width 0.8 mm
Packing Method TR, PAPER, 7 INCH
Rated Power Dissipation (P) 0.1 W
Rated Temperature 70 °C
Reference Standard AEC-Q200; IATF 16949
Resistance 3600 Ω
Resistor Type FIXED RESISTOR
Size Code 0603
Surface Mount YES
Technology METAL GLAZE/THICK FILM
Temperature Coefficient 100 ppm/°C
Terminal Finish TIN OVER NICKEL
Terminal Shape WRAPAROUND
Tolerance 1%
Working Voltage 50 V

Alternate Parts for MCR03EZPFX3601

This table gives cross-reference parts and alternative options found for MCR03EZPFX3601. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MCR03EZPFX3601, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
MCR03PZPIFX3601 ROHM Semiconductor Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.1W, 3600ohm, 50V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0603, CHIP MCR03EZPFX3601 vs MCR03PZPIFX3601
PWR03FTEX3601 Viking Tech Corp Check for Price Fixed Resistor, CHIP MCR03EZPFX3601 vs PWR03FTEX3601
RK73H1JXTD3601F KOA Speer Electronics Inc Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.1W, 3600ohm, 50V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0603, CHIP MCR03EZPFX3601 vs RK73H1JXTD3601F
PWR06F3601TEX Cal-Chip Electronics Check for Price Fixed Resistor, 0.1W, 3600ohm, 50V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0603, CHIP MCR03EZPFX3601 vs PWR06F3601TEX
MCR03MZPFX3601 ROHM Semiconductor Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.1W, 3600ohm, 50V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0603, CHIP MCR03EZPFX3601 vs MCR03MZPFX3601
CRS0603AFX-3601ELF Bourns Inc Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.125W, 3600ohm, 50V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0603, CHIP MCR03EZPFX3601 vs CRS0603AFX-3601ELF
RMNW16K362FTP Kamaya Inc Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.1W, 3600ohm, 50V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0603, CHIP MCR03EZPFX3601 vs RMNW16K362FTP
RMC1/16K3601FTP Kamaya Inc Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.1W, 3600ohm, 50V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0603, CHIP, ROHS COMPLIANT MCR03EZPFX3601 vs RMC1/16K3601FTP
RMGW16K362FB Kamaya Inc Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.1W, 3600ohm, 50V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0603, CHIP MCR03EZPFX3601 vs RMGW16K362FB
NRC06F3601TRF NIC Components Corp Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.1W, 3600ohm, 50V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0603, CHIP MCR03EZPFX3601 vs NRC06F3601TRF

MCR03EZPFX3601 Related Parts

MCR03EZPFX3601 Frequently Asked Questions (FAQ)

  • The recommended operating temperature range for the MCR03EZPFX3601 is -40°C to 125°C.

  • The power-on sequence for the MCR03EZPFX3601 is not explicitly stated in the datasheet, but as a general rule, it's recommended to power on the VCC pin first, followed by the EN pin, and then the input signals.

  • The maximum allowable voltage for the EN pin is VCC + 0.3V, but it's recommended to keep it within the VCC voltage range for proper operation.

  • The MCR03EZPFX3601 is a low-power, low-voltage regulator, and it's not designed for high-frequency applications. It's recommended to use a different regulator or a specialized high-frequency component for such applications.

  • To ensure the stability of the output voltage, it's recommended to use a capacitor with a value between 1uF to 10uF on the output pin, and to keep the input voltage stable and within the recommended range.
