Part Details for MP8759GD-Z by Monolithic Power Systems
Results Overview of MP8759GD-Z by Monolithic Power Systems
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
MP8759GD-Z Information
MP8759GD-Z by Monolithic Power Systems is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for MP8759GD-Z
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
MP8759GD-Z
|
Avnet Americas | DC/DC Switching Regulator, Adjustable, Synchronous Buck (Step Down), Single Output, 600mV to 5.5V, 8 A, 700 kHz, 12 Pins, QFN - Tape and Reel (Alt: MP8759GD-Z) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 24 Weeks, 0 Days Container: Reel | 0 |
|
$1.1921 / $1.3104 | Buy Now |
|
|
Bristol Electronics | 2660 |
|
RFQ | ||
|
DISTI #
MP8759GD-Z
|
Avnet Silica | DCDC Switching Regulator Adjustable Synchronous Buck Step Down Single Output 600mV to 55V 8 A 700 kHz 12 Pins QFN (Alt: MP8759GD-Z) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 26 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
|
Vyrian | Other Function Semiconductors | 22811 |
|
RFQ |
Part Details for MP8759GD-Z

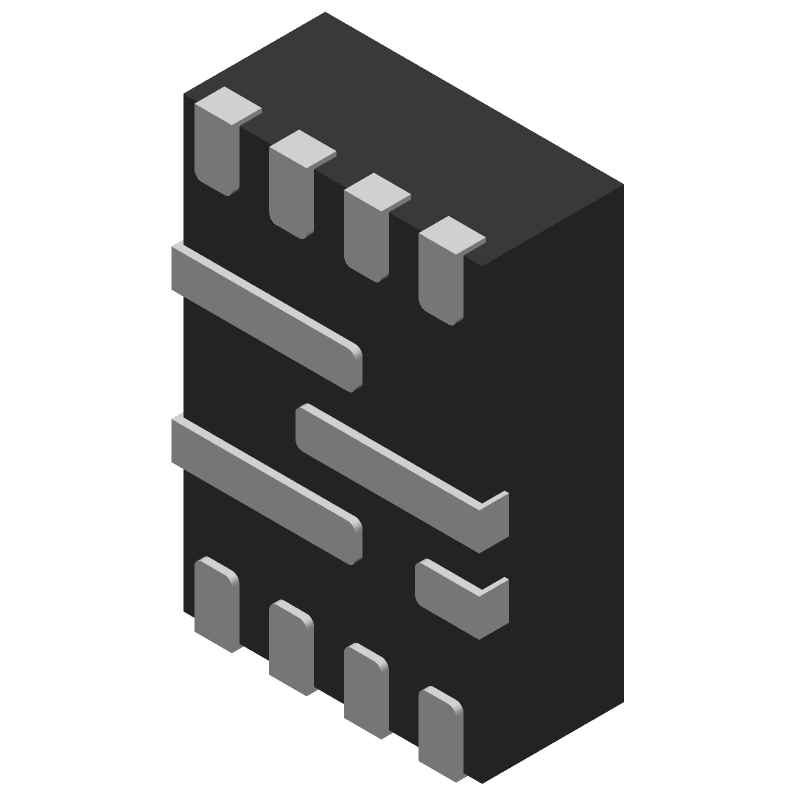

MP8759GD-Z CAD Models
MP8759GD-Z Part Data Attributes
|
|
MP8759GD-Z
Monolithic Power Systems
Buy Now
Datasheet
|
Compare Parts:
MP8759GD-Z
Monolithic Power Systems
Switching Regulator,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MONOLITHIC POWER SYSTEMS INC | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 24 Weeks | |
| Samacsys Manufacturer | Monolithic Power Systems (MPS) | |
| Analog IC - Other Type | SWITCHING REGULATOR | |
| Control Technique | PULSE WIDTH MODULATION | |
| Input Voltage-Max | 24 V | |
| Input Voltage-Min | 4.5 V | |
| Input Voltage-Nom | 12 V | |
| JESD-30 Code | R-XQCC-N12 | |
| Length | 3 mm | |
| Number of Functions | 1 | |
| Number of Terminals | 12 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 13.5 A | |
| Output Voltage-Max | 5.5 V | |
| Output Voltage-Min | 0.6 V | |
| Package Body Material | UNSPECIFIED | |
| Package Code | VQCCN | |
| Package Equivalence Code | LCC12,.08X.12,20 | |
| Package Shape | RECTANGULAR | |
| Package Style | CHIP CARRIER, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Seated Height-Max | 1 mm | |
| Supply Current-Max (Isup) | 0.135 mA | |
| Surface Mount | YES | |
| Switcher Configuration | BUCK | |
| Switching Frequency-Max | 700 kHz | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Width | 2 mm |
