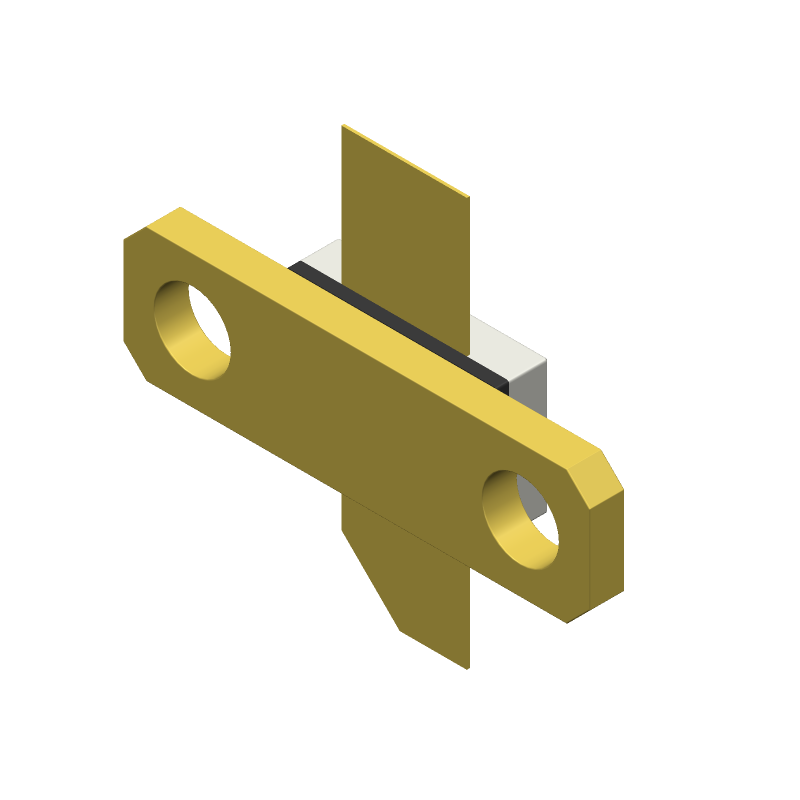

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MRFE6VS25LR5 by NXP Semiconductors
Results Overview of MRFE6VS25LR5 by NXP Semiconductors
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Industrial Automation
MRFE6VS25LR5 Information
MRFE6VS25LR5 by NXP Semiconductors is an RF Power Field-Effect Transistor.
RF Power Field-Effect Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for MRFE6VS25LR5
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
47W6731
|
Newark | Wideband Rf Power Ldmos Transistor, 1.8-2000 Mhz, 25 W, 50 V/ Reel Rohs Compliant: Yes |Nxp MRFE6VS25LR5 RoHS: Compliant Min Qty: 50 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$72.3800 / $76.8000 | Buy Now |
|
DISTI #
MRFE6VS25LR5
|
Avnet Americas | Transistor RF FET N-CH 133V 1.8MHz to 2000MHz 2-Pin NI-360H T/R - Tape and Reel (Alt: MRFE6VS25LR5) RoHS: Compliant Min Qty: 50 Package Multiple: 50 Container: Reel | 0 |
|
$65.1945 / $67.4055 | Buy Now |
|
DISTI #
MRFE6VS25LR5
|
Richardson RFPD | RF POWER TRANSISTOR RoHS: Compliant Min Qty: 50 | 0 |
|
$75.9500 | Buy Now |
|
DISTI #
MRFE6VS25LR5
|
Avnet Silica | Transistor RF FET NCH 133V 18MHz to 2000MHz 2Pin NI360H TR (Alt: MRFE6VS25LR5) RoHS: Compliant Min Qty: 50 Package Multiple: 50 Lead time: 54 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
MRFE6VS25LR5
|
EBV Elektronik | Transistor RF FET NCH 133V 18MHz to 2000MHz 2Pin NI360H TR (Alt: MRFE6VS25LR5) RoHS: Compliant Min Qty: 50 Package Multiple: 50 Lead time: 54 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
Part Details for MRFE6VS25LR5
MRFE6VS25LR5 CAD Models
MRFE6VS25LR5 Part Data Attributes
|
|
MRFE6VS25LR5
NXP Semiconductors
Buy Now
Datasheet
|
Compare Parts:
MRFE6VS25LR5
NXP Semiconductors
RF POWER, FET
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Not Recommended | |
| Ihs Manufacturer | NXP SEMICONDUCTORS | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.29.00 | |
| Samacsys Manufacturer | NXP | |
| Case Connection | SOURCE | |
| Configuration | SINGLE | |
| DS Breakdown Voltage-Min | 133 V | |
| FET Technology | METAL-OXIDE SEMICONDUCTOR | |
| Highest Frequency Band | ULTRA HIGH FREQUENCY BAND | |
| JESD-30 Code | R-PDFM-F2 | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Mode | ENHANCEMENT MODE | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | FLANGE MOUNT | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity/Channel Type | N-CHANNEL | |
| Power Gain-Min (Gp) | 24.5 dB | |
| Surface Mount | YES | |
| Terminal Form | FLAT | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 40 | |
| Transistor Element Material | SILICON |
