MTC1528S05 by: XP Power

DC-DC Regulated Power Supply Module, 1 Output, 15W, Hybrid, PACKAGE-14

Part Details for MTC1528S05 by XP Power

Results Overview of MTC1528S05 by XP Power

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Healthcare Medical Imaging Automotive

MTC1528S05 Information

MTC1528S05 by XP Power is a Power Supply Module.
Power Supply Modules are under the broader part category of Power Circuits.

A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.

Price & Stock for MTC1528S05

Part # Distributor Description Stock Price Buy
DISTI # 40P3833
Newark Dc-Dc Converter, Iso Pol, 1 O/P, 12W, 2.4A, 5V, Power Supply Applications:-, Dc/Dc Converter Type:Dip, Input Ratio:3:1, Output Power Max:12W, No. Of Outputs:1 Output, Output Voltage - Output 1:5V, Output Current - Output 1:2.4A Rohs Compliant: No |Xp Power MTC1528S05 RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 1 $330.9300
  • 5 $321.0000
  • 10 $311.0700
  • 25 $297.8400
  • 100 $277.9800
$277.9800 / $330.9300 Buy Now
DISTI # 70810561
RS DC-DC Converter, 15W mil-spec DC-DC Converter Single Output | XP Power MTC1528S05 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 46 Weeks, 0 Days Container: Bulk 15
  • 1 $360.7100
  • 5 $331.8600
$331.8600 / $360.7100 Buy Now
DISTI # MTC1528S05
Avnet Abacus 15W milspec DCDC converter single output (Alt: MTC1528S05) RoHS: Compliant Min Qty: 12 Package Multiple: 12 Lead time: 45 Weeks, 0 Days Abacus - 0
Buy Now

Part Details for MTC1528S05

MTC1528S05 CAD Models

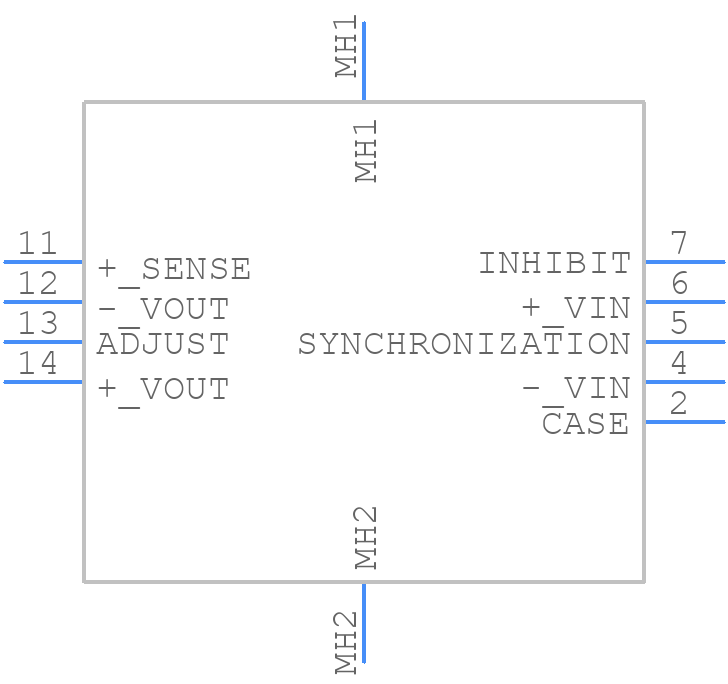

  • Part Symbol
