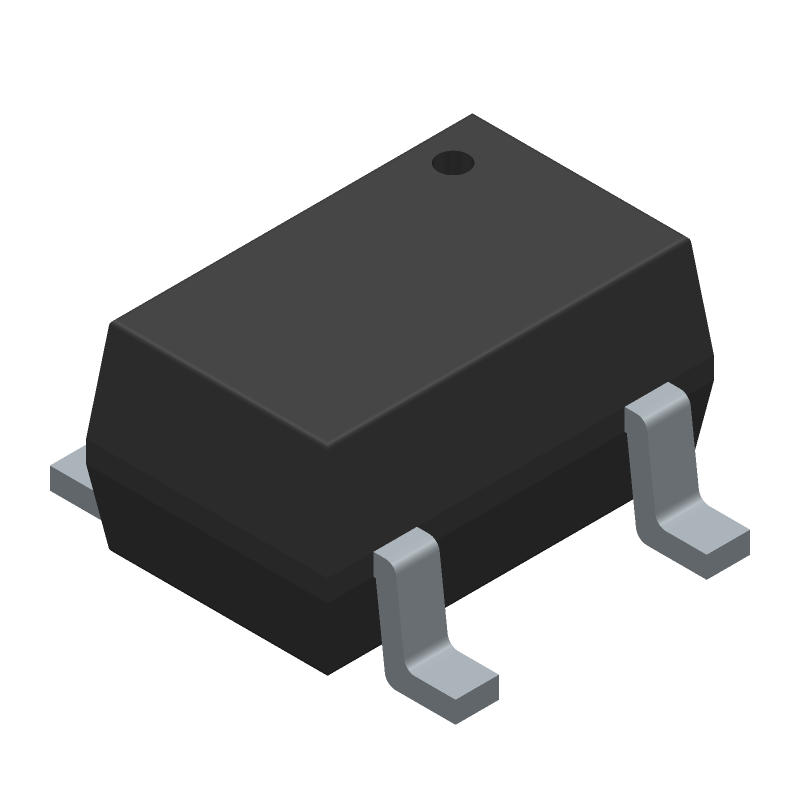

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for NC7SV08P5X by onsemi
Overview of NC7SV08P5X by onsemi
- Distributor Offerings: (24 listings)
- Number of FFF Equivalents: (1 cross)
- CAD Models: (Available)
- Number of Functional Equivalents: (6 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Price & Stock for NC7SV08P5X
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
31Y3151
|
Newark | And Gate, Single, 2 I/P, Sc-70-5, Logic Family/Base Number:Nc7S08, Logic Type:And Gate, Output Current:24Ma, No. Of Inputs:2, Supply Voltage Min:900Mv, Supply Voltage Max:3.6V, Logic Case Style:Sc-70, No. Of Pins:5Pins, Logic Ic Rohs Compliant: Yes |Onsemi NC7SV08P5X Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 34837 |
|
$0.1080 / $0.4370 | Buy Now |
|
DISTI #
26AC2604
|
Newark | Ulp-A 2-Input And Gate Rohs Compliant: Yes |Onsemi NC7SV08P5X Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.0560 | Buy Now |
|
DISTI #
29H0703
|
Newark | Single And Gate, 2I/P, Sc-70-5, Full Reel, Logic Function:And Gate, No. Of Elements:Single, No. Of Inputs:2Inputs, No. Of Pins:5Pins, Logic Case Style:Sc-70, Product Range:7S08, Logic Ic Family:7Sv, Supply Voltage Min:900Mv Rohs Compliant: Yes |Onsemi NC7SV08P5X Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.0780 / $0.0880 | Buy Now |
|
DISTI #
55R1150
|
Newark | Single And Gate, 2I/P, Sc-70-5, Logic Function:And Gate, No. Of Elements:Single, No. Of Inputs:2Inputs, No. Of Pins:5Pins, Logic Case Style:Sc-70, Product Range:7S08, Logic Ic Family:7Sv, Supply Voltage Min:900Mv, Output Current:24Marohs Compliant: Yes |Onsemi NC7SV08P5X Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 0 |
|
$0.1640 | Buy Now |
|
DISTI #
NC7SV08P5XCT-ND
|
DigiKey | IC GATE AND 1CH 2-INP SC88A Min Qty: 1 Lead time: 15 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
3663 In Stock |
|
$0.0646 / $0.4200 | Buy Now |
|
DISTI #
NC7SV08P5X
|
Avnet Americas | AND Gate 1-Element 2-IN CMOS 5-Pin SC-70 T/R - Tape and Reel (Alt: NC7SV08P5X) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 15 Weeks, 0 Days Container: Reel | 6000 |
|
$0.0466 / $0.0556 | Buy Now |
|
DISTI #
NC7SV08P5X
|
Avnet Americas | AND Gate 1-Element 2-IN CMOS 5-Pin SC-70 T/R - Tape and Reel (Alt: NC7SV08P5X) RoHS: Compliant Min Qty: 6250 Package Multiple: 1 Lead time: 0 Weeks, 2 Days Container: Reel | 12000 Partner Stock |
|
RFQ | |
|
DISTI #
NC7SV08P5X
|
Avnet Americas | AND Gate 1-Element 2-IN CMOS 5-Pin SC-70 T/R - Tape and Reel (Alt: NC7SV08P5X) RoHS: Compliant Min Qty: 15000 Package Multiple: 3000 Lead time: 15 Weeks, 0 Days Container: Reel | 0 |
|
$0.0466 / $0.0556 | Buy Now |
|
DISTI #
NC7SV08P5X
|
Avnet Americas | AND Gate 1-Element 2-IN CMOS 5-Pin SC-70 T/R - Tape and Reel (Alt: NC7SV08P5X) RoHS: Compliant Min Qty: 15000 Package Multiple: 3000 Lead time: 15 Weeks, 0 Days Container: Reel | 0 |
|
$0.0466 / $0.0556 | Buy Now |
|
DISTI #
512-NC7SV08P5X
|
Mouser Electronics | Logic Gates 2-Input AND Gate RoHS: Compliant | 10259 |
|
$0.0640 / $0.4200 | Buy Now |
Part Details for NC7SV08P5X
NC7SV08P5X CAD Models
NC7SV08P5X Part Data Attributes
|
|
NC7SV08P5X
onsemi
Buy Now
Datasheet
|
Compare Parts:
NC7SV08P5X
onsemi
TinyLogic ULP-A 2-Input AND Gate, 3000-REEL
|
| Pbfree Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Package Description | SC-70, 6 PIN | |
| Manufacturer Package Code | 419AC | |
| Reach Compliance Code | compliant | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 2 Days | |
| Samacsys Manufacturer | onsemi | |
| Family | AUP/ULP/V | |
| JESD-30 Code | R-PDSO-G5 | |
| JESD-609 Code | e4 | |
| Length | 2 mm | |
| Load Capacitance (CL) | 30 pF | |
| Logic IC Type | AND GATE | |
| Max I(ol) | 0.002 A | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Inputs | 2 | |
| Number of Terminals | 5 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP5/6,.08 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 260 | |
| Prop. Delay@Nom-Sup | 14.6 ns | |
| Propagation Delay (tpd) | 14.6 ns | |
| Qualification Status | Not Qualified | |
| Schmitt Trigger | NO | |
| Seated Height-Max | 1.1 mm | |
| Supply Voltage-Max (Vsup) | 3.6 V | |
| Supply Voltage-Min (Vsup) | 0.9 V | |
| Supply Voltage-Nom (Vsup) | 3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 1.25 mm |
Alternate Parts for NC7SV08P5X
This table gives cross-reference parts and alternative options found for NC7SV08P5X. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of NC7SV08P5X, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Description | Manufacturer | Compare |
|---|---|---|---|
| NC7SV08P5X | AND Gate, AUP/ULP/V Series, 1-Func, 2-Input, CMOS, PDSO5, 1.25 MM, ROHS COMPLIANT, EIAJ, SC-88A, SC-70, 5 PIN | Fairchild Semiconductor Corporation | NC7SV08P5X vs NC7SV08P5X |
