Logic Gates NC7SZ14P5X

NC7SZ14P5X
Description: TinyLogic UHS Inverter with Schmitt Trigger Input, 3000-REEL

Overview of NC7SZ14P5X by onsemi

Note: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Where used in Applications: Education and Research Industrial Automation Electronic Manufacturing

Price & Stock for NC7SZ14P5X by onsemi

Part # Manufacturer Description Stock Price Buy
DISTI # 84H6497
Newark Inverter Logic Ic, Logic Type:Inverter Schmitt Trigger, Output Current:32Ma, No. Of Inputs:1, Supply Voltage Range:1.65V To 5.5V, Logic Case Style:Sc-70, No. Of Pins:5, Operating Temperature Range:-40°C To +85°C Rohs Compliant: Yes |Onsemi NC7SZ14P5X Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 3,000 $0.0550
  • 6,000 $0.0450
  • 12,000 $0.0390
  • 18,000 $0.0360
  • 30,000 $0.0320
$0.0320 / $0.0550 Buy Now
DISTI # 38C7584
Newark Inverter, Schmitt Trigger, Sc-70-5, Logic Function:Inverter, No. Of Elements:Single, No. Of Inputs:1Inputs, No. Of Pins:5Pins, Logic Case Style:Sc-70, Product Range:7S14, Logic Ic Family:7Sz, Supply Voltage Min:1.65V, Msl:- Rohs Compliant: Yes |Onsemi NC7SZ14P5X Min Qty: 9000 Package Multiple: 1 Date Code: 0 Container: Cut Tape 0
  • 1,000 $0.0670
$0.0670 Buy Now
DISTI # 26AC2622
Newark Uhs Inverter Schmitt Rohs Compliant: Yes |Onsemi NC7SZ14P5X Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 1 $0.0270
$0.0270 Buy Now
DISTI # NC7SZ14P5XCT-ND
DigiKey IC INVERT SCHMITT 1CH 1IN SC70-5 Min Qty: 1 Lead time: 18 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) 26454
In Stock
  • 1 $0.3200
  • 10 $0.2630
  • 25 $0.2200
  • 100 $0.1222
  • 250 $0.1076
  • 500 $0.0917
  • 1,000 $0.0623
  • 3,000 $0.0562
  • 6,000 $0.0489
  • 15,000 $0.0415
  • 30,000 $0.0391
  • 75,000 $0.0367
  • 150,000 $0.0318
$0.0318 / $0.3200 Buy Now
DISTI # NC7SZ14P5X
Avnet Americas Inverter Schmitt Trigger 1-Element 5-Pin SC-88A T/R - Tape and Reel (Alt: NC7SZ14P5X) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 15 Weeks, 0 Days Container: Reel 21000
  • 3,000 $0.0263
  • 6,000 $0.0256
  • 12,000 $0.0249
  • 18,000 $0.0242
  • 24,000 $0.0235
  • 30,000 $0.0228
  • 300,000 $0.0221
$0.0221 / $0.0263 Buy Now
DISTI # NC7SZ14P5X
Avnet Americas Inverter Schmitt Trigger 1-Element 5-Pin SC-88A T/R - Tape and Reel (Alt: NC7SZ14P5X) RoHS: Compliant Min Qty: 30000 Package Multiple: 3000 Lead time: 53 Weeks, 1 Days Container: Reel 0
  • 30,000 $0.0267
  • 36,000 $0.0260
  • 66,000 $0.0253
  • 150,000 $0.0246
  • 300,000 $0.0238
$0.0238 / $0.0267 Buy Now
DISTI # NC7SZ14P5X
Avnet Americas Inverter Schmitt Trigger 1-Element 5-Pin SC-88A T/R - Tape and Reel (Alt: NC7SZ14P5X) RoHS: Compliant Min Qty: 30000 Package Multiple: 3000 Lead time: 53 Weeks, 1 Days Container: Reel 0
  • 30,000 $0.0267
  • 36,000 $0.0260
  • 66,000 $0.0253
  • 150,000 $0.0246
  • 300,000 $0.0238
$0.0238 / $0.0267 Buy Now
DISTI # 512-NC7SZ14P5X
Mouser Electronics Inverters UHS Inverter RoHS: Compliant 18344
  • 1 $0.3200
  • 10 $0.2200
  • 100 $0.0920
  • 1,000 $0.0630
  • 3,000 $0.0480
  • 9,000 $0.0410
  • 24,000 $0.0390
  • 45,000 $0.0360
$0.0360 / $0.3200 Buy Now
Future Electronics NC7SZ14 Series 5.5 V TinyLogic® UHS Inverter with Schmitt Trigger Input-SC-70-5 RoHS: Compliant pbFree: Yes Min Qty: 3000 Package Multiple: 3000 Lead time: 18 Weeks Container: Reel 9000
Reel
  • 3,000 $0.0362
  • 12,000 $0.0346
  • 30,000 $0.0336
  • 75,000 $0.0326
  • 120,000 $0.0312
$0.0312 / $0.0362 Buy Now
Future Electronics NC7SZ14 Series 5.5 V TinyLogic® UHS Inverter with Schmitt Trigger Input-SC-70-5 RoHS: Compliant pbFree: Yes Min Qty: 30000 Package Multiple: 3000 Lead time: 6 Weeks Container: Reel 0
Reel
  • 3,000 $0.0362
  • 12,000 $0.0346
  • 30,000 $0.0336
  • 75,000 $0.0326
  • 120,000 $0.0312
$0.0312 / $0.0362 Buy Now
DISTI # SMC-NC7SZ14P5X
Sensible Micro Corporation AS6081 Certified Vendor, Ships Same day, 1 Year Warranty RoHS: Compliant Min Qty: 25 Lead time: 0 Weeks, 1 Days Date Code: 1008 Container: Tape & Reel 3000
  • 100 $0.0284
  • 500 $0.0284
  • 1,000 $0.0284
$0.0284 RFQ
DISTI # NC7SZ14P5X
Avnet Asia Inverter Schmitt Trigger 1-Element 5-Pin SC-88A T/R (Alt: NC7SZ14P5X) RoHS: Compliant Min Qty: 15000 Package Multiple: 3000 Lead time: 18 Weeks, 0 Days 0
  • 15,000 $0.0512
  • 30,000 $0.0454
  • 45,000 $0.0395
  • 75,000 $0.0383
  • 150,000 $0.0371
  • 375,000 $0.0360
  • 750,000 $0.0348
$0.0348 / $0.0512 Buy Now
DISTI # NC7SZ14P5X
Avnet Silica Inverter Schmitt Trigger 1-Element 5-Pin SC-88A T/R (Alt: NC7SZ14P5X) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 19 Weeks, 0 Days Silica - 0
Buy Now
DISTI # NC7SZ14P5X
EBV Elektronik Inverter Schmitt Trigger 1-Element 5-Pin SC-88A T/R (Alt: NC7SZ14P5X) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 20 Weeks, 0 Days EBV - 0
Buy Now
Flip Electronics Stock, ship today 3000
  • 1 $0.0300
$0.0300 RFQ
LCSC Schmitt Trigger 1 5.9ns5V50pF 1uA 1.65V5.5V SC-70-5 Inverters ROHS 9398
  • 5 $0.0803
  • 50 $0.0656
  • 150 $0.0582
  • 500 $0.0527
  • 3,000 $0.0413
  • 6,000 $0.0391
$0.0391 / $0.0803 Buy Now

CAD Models for NC7SZ14P5X by onsemi
You need to Sign In or Sign Up to download CAD models.

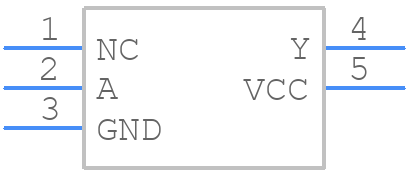

  • Part Symbol
    Part Symbol
  • Footprint
    footprint

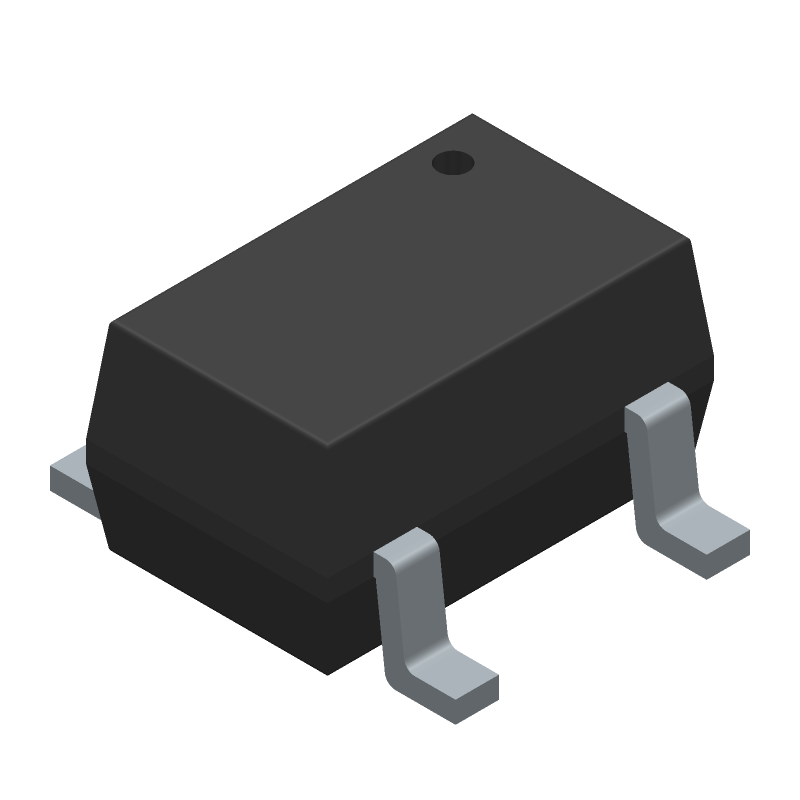

  • 3D Model
    3D Model
25 Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

Part Data Attributes for NC7SZ14P5X by onsemi
Parametric Data

NC7SZ14P5X
onsemi
Buy Now
-
-
Pbfree Code
Yes
Part Life Cycle Code
Active
Ihs Manufacturer
ONSEMI
Package Description
SC-70, 5 PIN
Manufacturer Package Code
419A-02
Reach Compliance Code
compliant
HTS Code
8542.39.00.01
Factory Lead Time
15 Weeks
Samacsys Manufacturer
onsemi
Family
LVC/LCX/Z
JESD-30 Code
R-PDSO-G5
JESD-609 Code
e3
Length
2 mm
Load Capacitance (CL)
50 pF
Logic IC Type
INVERTER
Max I(ol)
0.024 A
Moisture Sensitivity Level
1
Number of Functions
1
Number of Inputs
1
Number of Terminals
5
Operating Temperature-Max
85 °C
Operating Temperature-Min
-40 °C
Package Body Material
PLASTIC/EPOXY
Package Code
TSSOP
Package Equivalence Code
TSSOP5/6,.08
Package Shape
RECTANGULAR
Package Style
SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Packing Method
TR
Peak Reflow Temperature (Cel)
260
Prop. Delay@Nom-Sup
7.5 ns
Propagation Delay (tpd)
15.6 ns
Qualification Status
Not Qualified
Schmitt Trigger
YES
Seated Height-Max
1.1 mm
Supply Voltage-Max (Vsup)
5.5 V
Supply Voltage-Min (Vsup)
1.65 V
Supply Voltage-Nom (Vsup)
1.8 V
Surface Mount
YES
Technology
CMOS
Temperature Grade
INDUSTRIAL
Terminal Finish
MATTE TIN
Terminal Form
GULL WING
Terminal Pitch
0.65 mm
Terminal Position
DUAL
Time@Peak Reflow Temperature-Max (s)
30
Width
1.25 mm
Want to compare parts?
  1. NC7SZ14P5X
    onsemi
    TinyLogic UHS Inverter with Schmitt Trigger Input, 3000-REEL
    VS

Alternate Parts for NC7SZ14P5X

This table gives cross-reference parts and alternative options found for NC7SZ14P5X. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of NC7SZ14P5X, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
Part Number Description Manufacturer Compare
NL17SZ14EDFT2G Inverter onsemi NC7SZ14P5X vs NL17SZ14EDFT2G
NC7SZ14P5_NL Inverter, LVC/LCX/Z Series, 1-Func, 1-Input, CMOS, PDSO5, 1.25 MM, LEAD FREE, EIAJ, SC-88A, SC-70, 5 PIN Fairchild Semiconductor Corporation NC7SZ14P5X vs NC7SZ14P5_NL
SN74LVC1G14MDCKREP IC LVC/LCX/Z SERIES, 1-INPUT INVERT GATE, PDSO5, PLASTIC, SOP-5, Gate Texas Instruments NC7SZ14P5X vs SN74LVC1G14MDCKREP
SN74LVC1G14DCKTE4 Single 1.65-V to 5.5-V inverter with Schmitt-Trigger inputs 5-SC70 -40 to 125 Texas Instruments NC7SZ14P5X vs SN74LVC1G14DCKTE4
935268595118 Inverter, LVC/LCX/Z Series, 1-Func, 1-Input, CMOS, PDSO5 Nexperia NC7SZ14P5X vs 935268595118
935268595115 Inverter, LVC/LCX/Z Series, 1-Func, 1-Input, CMOS, PDSO5 Nexperia NC7SZ14P5X vs 935268595115
74LVC1G14SE-7 Inverter, LVC/LCX/Z Series, 1-Func, 1-Input, CMOS, PDSO5, SOT-353, 5 PIN Diodes Incorporated NC7SZ14P5X vs 74LVC1G14SE-7
74LVC1G14GW,125 74LVC1G14 - Single Schmitt-trigger inverter@en-us TSSOP 5-Pin Nexperia NC7SZ14P5X vs 74LVC1G14GW,125
NC7SZ14P5X_NL Inverter, LVC/LCX/Z Series, 1-Func, 1-Input, CMOS, PDSO5, 1.25 MM, ROHS COMPLIANT, EIAJ, SC-88, SC-70, 5 PIN Fairchild Semiconductor Corporation NC7SZ14P5X vs NC7SZ14P5X_NL
SN74LVC1G14DCKRE4 Single 1.65-V to 5.5-V inverter with Schmitt-Trigger inputs 5-SC70 -40 to 125 Texas Instruments NC7SZ14P5X vs SN74LVC1G14DCKRE4
Part Number Description Manufacturer Compare
NL17SZ14EDFT2G Inverter onsemi NC7SZ14P5X vs NL17SZ14EDFT2G
SN74LVC1G14DCKTE4 Single 1.65-V to 5.5-V inverter with Schmitt-Trigger inputs 5-SC70 -40 to 125 Texas Instruments NC7SZ14P5X vs SN74LVC1G14DCKTE4
NC7SZ14P5_NL Inverter, LVC/LCX/Z Series, 1-Func, 1-Input, CMOS, PDSO5, 1.25 MM, LEAD FREE, EIAJ, SC-88A, SC-70, 5 PIN Fairchild Semiconductor Corporation NC7SZ14P5X vs NC7SZ14P5_NL
74LX1G14CTR TTL/H/L SERIES, 1-INPUT INVERT GATE, PDSO5, SOT-323, 5 PIN STMicroelectronics NC7SZ14P5X vs 74LX1G14CTR
NL17SZ14DFT2G Single Inverter with Schmitt Trigger Input, SC-88A (SC-70-5 / SOT-353), 3000-REEL onsemi NC7SZ14P5X vs NL17SZ14DFT2G
SN74LVC1G14MDCKREP IC LVC/LCX/Z SERIES, 1-INPUT INVERT GATE, PDSO5, PLASTIC, SOP-5, Gate Texas Instruments NC7SZ14P5X vs SN74LVC1G14MDCKREP
SN74LVC1G14DCKT Single 1.65-V to 5.5-V inverter with Schmitt-Trigger inputs 5-SC70 -40 to 125 Texas Instruments NC7SZ14P5X vs SN74LVC1G14DCKT
935268595115 Inverter, LVC/LCX/Z Series, 1-Func, 1-Input, CMOS, PDSO5 Nexperia NC7SZ14P5X vs 935268595115
74LVC1G14SE-7 Inverter, LVC/LCX/Z Series, 1-Func, 1-Input, CMOS, PDSO5, SOT-353, 5 PIN Diodes Incorporated NC7SZ14P5X vs 74LVC1G14SE-7
SN74LVC1G14DCKRG4 Single Schmitt-Trigger Inverter 5-SC70 -40 to 125 Texas Instruments NC7SZ14P5X vs SN74LVC1G14DCKRG4
