NCP1014ST65T3G by: onsemi

High Voltage Switching Regulator for Offline SMPS, SOT-223 (TO-261) 4 LEAD, 4000-REEL

Part Details for NCP1014ST65T3G by onsemi

Results Overview of NCP1014ST65T3G by onsemi

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

NCP1014ST65T3G Information

NCP1014ST65T3G by onsemi is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.

A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.

Price & Stock for NCP1014ST65T3G

Part # Distributor Description Stock Price Buy
DISTI # 81Y6890
Newark Current Mode Pwm Controller, Sot-223-4, Power Supply Controller Type:Single Ended Controller, No. Of Channels:1Channels, Control Mode:Current Mode Control, Supply Voltage Min:-, Supply Voltage Max:-, Ic Case/Package:Sot-223 Rohs Compliant: Yes |Onsemi NCP1014ST65T3G RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 0
Buy Now
DISTI # 42K1785
Newark Ic, smps Controller, current-Mode, sot-223,3Pin, plastic |Onsemi NCP1014ST65T3G RoHS: Not Compliant Min Qty: 4000 Package Multiple: 1 Date Code: 0 Container: Reel 0
Buy Now
Rochester Electronics Switching Regulator, Current-mode, 1A, 71kHz Switching Freq-Max, PSSO4 RoHS: Compliant Status: Obsolete Min Qty: 1 166719
  • 100 $0.9290
  • 500 $0.8361
  • 1,000 $0.7711
  • 10,000 $0.6875
  • 100,000 $0.5760
$0.5760 / $0.9290 Buy Now
Chip 1 Exchange INSTOCK 1490
RFQ
Chip 1 Exchange INSTOCK 1490
RFQ
Vyrian Other Function Semiconductors 1488
RFQ
Win Source Electronics IC CTLR/MOSFET 65KHZ SOT223 14271
  • 10 $6.3444
  • 23 $5.2056
  • 35 $5.0430
  • 48 $4.8803
  • 62 $4.7176
  • 82 $4.2296
$4.2296 / $6.3444 Buy Now

Part Details for NCP1014ST65T3G

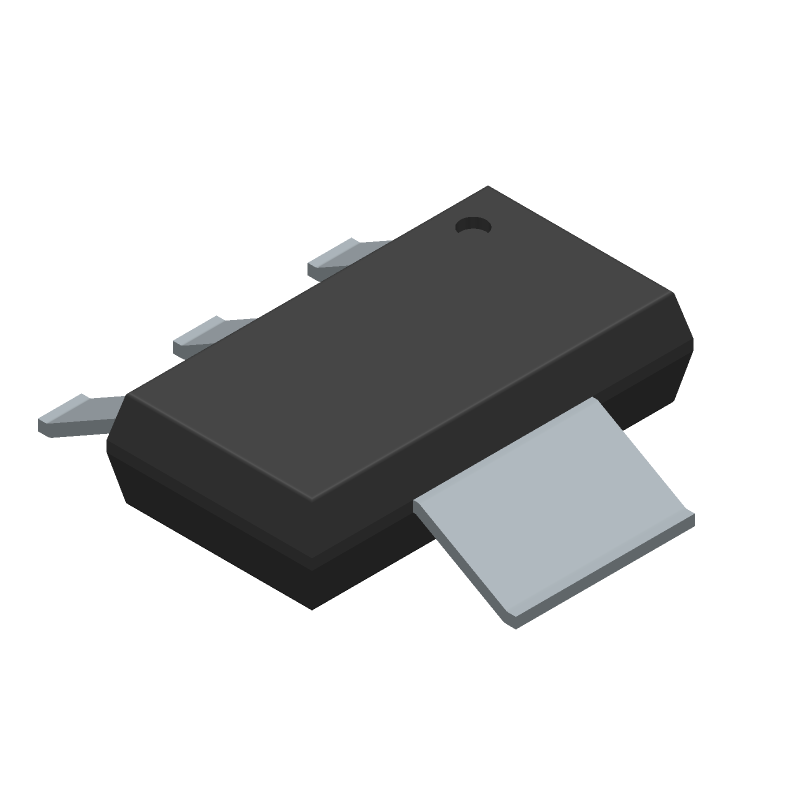

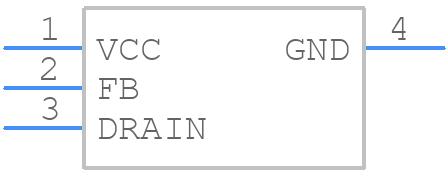

NCP1014ST65T3G CAD Models

NCP1014ST65T3G Part Data Attributes

NCP1014ST65T3G onsemi
Buy Now Datasheet
Compare Parts:
NCP1014ST65T3G onsemi High Voltage Switching Regulator for Offline SMPS, SOT-223 (TO-261) 4 LEAD, 4000-REEL
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Obsolete
Ihs Manufacturer ONSEMI
Part Package Code SOT-223 (TO-261) 4 LEAD
Pin Count 4
Manufacturer Package Code 0.0318
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Factory Lead Time 50 Weeks
Samacsys Manufacturer onsemi
Analog IC - Other Type SWITCHING REGULATOR
Control Mode CURRENT-MODE
Control Technique PULSE WIDTH MODULATION
Input Voltage-Nom 8 V
JESD-30 Code R-PSSO-G4
JESD-609 Code e3
Length 6.5 mm
Moisture Sensitivity Level 1
Number of Functions 1
Number of Terminals 4
Output Current-Max 1 A
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOT-223
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Seated Height-Max 1.75 mm
Surface Mount YES
Switcher Configuration SINGLE
Switching Frequency-Max 71 kHz
Terminal Finish MATTE TIN
Terminal Form GULL WING
Terminal Pitch 2.3 mm
Terminal Position SINGLE
Time@Peak Reflow Temperature-Max (s) 30
Width 3.5 mm

Alternate Parts for NCP1014ST65T3G

This table gives cross-reference parts and alternative options found for NCP1014ST65T3G. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of NCP1014ST65T3G, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
NCP1014ST65T3 onsemi Check for Price 1A SWITCHING REGULATOR, 71kHz SWITCHING FREQ-MAX, PSSO4, PLASTIC, SOT-223, 4 PIN NCP1014ST65T3G vs NCP1014ST65T3
MC33362DWR2G Rochester Electronics LLC Check for Price 2A SWITCHING REGULATOR, 315kHz SWITCHING FREQ-MAX, PDSO13, LEAD FREE, SO-16/13 NCP1014ST65T3G vs MC33362DWR2G
MC33362DW Motorola Mobility LLC Check for Price 2A SWITCHING REGULATOR, 315kHz SWITCHING FREQ-MAX, PDSO13, PLASTIC, SOP-16/13 NCP1014ST65T3G vs MC33362DW
MC33362DW Rochester Electronics LLC Check for Price 2A SWITCHING REGULATOR, 315kHz SWITCHING FREQ-MAX, PDSO13, SO-16/13 NCP1014ST65T3G vs MC33362DW
MC33362DWG Rochester Electronics LLC Check for Price 2A SWITCHING REGULATOR, 315kHz SWITCHING FREQ-MAX, PDSO13, LEAD FREE, SO-16/13 NCP1014ST65T3G vs MC33362DWG
MC33362DWR2 Motorola Mobility LLC Check for Price 2A SWITCHING REGULATOR, 315kHz SWITCHING FREQ-MAX, PDSO13, PLASTIC, SOP-16/13 NCP1014ST65T3G vs MC33362DWR2
MC33362P onsemi Check for Price 2A SWITCHING REGULATOR, 315kHz SWITCHING FREQ-MAX, PDIP13, PLASTIC, DIP-16/13 NCP1014ST65T3G vs MC33362P
MC33362P Motorola Mobility LLC Check for Price 2A SWITCHING REGULATOR, 315kHz SWITCHING FREQ-MAX, PDIP13, PLASTIC, DIP-16/13 NCP1014ST65T3G vs MC33362P
MC33362DWR2G onsemi Check for Price 2A SWITCHING REGULATOR, 315kHz SWITCHING FREQ-MAX, PDSO13, LEAD FREE, SO-16/13 NCP1014ST65T3G vs MC33362DWR2G

NCP1014ST65T3G Related Parts

NCP1014ST65T3G Frequently Asked Questions (FAQ)

  • A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good thermal conductivity between the device and the heat sink. A 2-layer or 4-layer PCB with a solid ground plane is recommended. Avoid placing thermal vias under the device, and ensure that the thermal pad is connected to a solid ground plane.

  • To ensure reliable start-up of the converter, ensure that the input voltage is within the recommended range, and that the output capacitor is properly sized. Also, ensure that the feedback network is properly designed and that the compensation components are correctly selected. A soft-start circuit can also be added to reduce inrush current and ensure reliable start-up.

  • The maximum allowed input voltage ripple for the NCP1014ST65T3G is 10% of the nominal input voltage. Exceeding this limit may affect the converter's performance and reliability.

  • While it is possible to use a different inductor value, it is not recommended. The recommended inductor value is carefully selected to ensure optimal performance and efficiency. Using a different value may affect the converter's performance, efficiency, and stability.

  • To troubleshoot oscillations or instability in the converter, check the PCB layout, component values, and feedback network design. Ensure that the output capacitor is properly sized and that the compensation components are correctly selected. Also, check for any signs of overheating, and ensure that the input voltage is within the recommended range.
