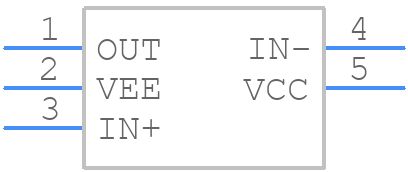

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for NCX2200GW,125 by NXP Semiconductors
Results Overview of NCX2200GW,125 by NXP Semiconductors
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (1 option)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
NCX2200GW,125 Information
NCX2200GW,125 by NXP Semiconductors is a Comparator.
Comparators are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for NCX2200GW,125
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
43W6089
|
Newark | Analogue Comparator, Rail To Rail, Low Voltage, 1, 10 Ns, 1.3V To 5.5V, Tssop, 5 Rohs Compliant: Yes |Nxp NCX2200GW,125 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
Buy Now | |
|
|
Bristol Electronics | 3000 |
|
RFQ | ||
|
DISTI #
NCX2200GW.125
|
TME | IC: comparator, low-power, Cmp: 1, 0.8us, 1.3÷5.5V, SMT, TSSOP5 Min Qty: 1 | 0 |
|
$0.2100 / $0.5340 | RFQ |
|
|
Ameya Holding Limited | NCX2200 Series 5.5 V 1 pA SMT Single General Purpose Comparator - TSSOP-5 | 33150 |
|
RFQ | |
|
|
Chip-Germany GmbH | RoHS: Not Compliant | 21339 |
|
RFQ | |
|
|
Vyrian | Amplifiers | 22708 |
|
RFQ |
Part Details for NCX2200GW,125
NCX2200GW,125 CAD Models
NCX2200GW,125 Part Data Attributes
|
|
NCX2200GW,125
NXP Semiconductors
Buy Now
Datasheet
|
Compare Parts:
NCX2200GW,125
NXP Semiconductors
NCX2200 - Low voltage comparator TSSOP 5-Pin
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | NXP SEMICONDUCTORS | |
| Part Package Code | TSSOP | |
| Package Description | TSSOP-5 | |
| Pin Count | 5 | |
| Manufacturer Package Code | SOT353 | |
| Reach Compliance Code | compliant | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 111 Weeks | |
| Samacsys Manufacturer | NXP | |
| Amplifier Type | COMPARATOR | |
| Input Offset Voltage-Max | 30000 µV | |
| JESD-30 Code | R-PDSO-G5 | |
| JESD-609 Code | e3 | |
| Length | 2.05 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 5 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Type | PUSH-PULL | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP5/6,.08 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Packing Method | TR, 7 INCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Response Time-Nom | 800 ns | |
| Seated Height-Max | 1.1 mm | |
| Supply Current-Max | 0.009 mA | |
| Supply Voltage Limit-Max | 7 V | |
| Supply Voltage-Nom (Vsup) | 1.6 V | |
| Surface Mount | YES | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 1.25 mm |
