Dual, 30-V, 10-MHz, low-noise operational amplifier for audio applications 8-SOIC 0 to 70

Part Details for NE5532DR by Texas Instruments

Results Overview of NE5532DR by Texas Instruments

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research Environmental Monitoring Industrial Automation Agriculture Technology Medical Imaging Electronic Manufacturing

NE5532DR Information

NE5532DR by Texas Instruments is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.

Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.

Available Datasheets

Part # Manufacturer Description Datasheet
NE5532DRE4 Texas Instruments Dual Low-Noise High-Speed Audio Operational Amplifier 8-SOIC 0 to 70
NE5532DRG4 Texas Instruments Dual Low-Noise High-Speed Audio Operational Amplifier 8-SOIC 0 to 70
NE5532DR Texas Instruments Dual Low-Noise High-Speed Audio Operational Amplifier 8-SOIC 0 to 70

Price & Stock for NE5532DR

Part # Distributor Description Stock Price Buy
DISTI # 33AH4549
Newark Op Amp, Dual Low Noise, Smd, 5532, No. Of Amplifiers:2 Amplifier, Bandwidth:10Mhz, Slew Rate:9V/Μs, Supply Voltage Range:± 5V To ± 15V, Amplifier Case Style:Soic, No. Of Pins:8Pins, Operating Temperature Min:0°C, Operating Rohs Compliant: Yes |Texas Instruments NE5532DR RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape 0
  • 1 $0.4260
  • 10 $0.2660
  • 25 $0.2450
  • 50 $0.2250
  • 100 $0.2040
  • 250 $0.1960
  • 500 $0.1860
  • 1,000 $0.1780
$0.1780 / $0.4260 Buy Now
Bristol Electronics   677
RFQ
DISTI # NE5532DR
TME IC: operational amplifier, 10MHz, Ch: 2, SO8, ±5÷15VDC Min Qty: 1 12849
  • 1 $0.4190
  • 10 $0.2790
  • 25 $0.2450
  • 50 $0.2330
  • 100 $0.2080
  • 250 $0.1910
  • 500 $0.1800
  • 1,000 $0.1460
  • 10,000 $0.1400
$0.1400 / $0.4190 Buy Now
Ameya Holding Limited IC: operational amplifier, 10MHz, Channels: 2, SO8, ±5÷15VDC 2500
RFQ
NexGen Digital   917
RFQ
DISTI # C1S746200550814
Chip One Stop Op Amp Dual GP ±15V 8-Pin SOIC T/R RoHS: Compliant pbFree: Yes Container: Cut Tape 2225
  • 5 $0.1210
  • 50 $0.1120
  • 500 $0.1110
  • 1,000 $0.1090
$0.1090 / $0.1210 Buy Now
LCSC Dual 200nA 9V/us 10MHz SOIC-8 Operational Amplifier ROHS 88230
  • 5 $0.0937
  • 50 $0.0748
  • 150 $0.0650
  • 500 $0.0570
  • 2,500 $0.0542
  • 5,000 $0.0523
$0.0523 / $0.0937 Buy Now
MacroQuest Electronics ISO 9001: 2015, ISO 14001:2015, ISO 45001:2018 37950
  • 250 $0.2500
  • 500 $0.2200
  • 1,000 $0.1800
$0.1800 / $0.2500 Buy Now
New Advantage Corporation IC-5532 OPAMP GP 2 CIRCUIT SOIC8 RoHS: Compliant Min Qty: 1 Package Multiple: 100 3818
  • 2,300 $0.1554
  • 3,818 $0.1451
$0.1451 / $0.1554 Buy Now
Win Source Electronics IC OPAMP GP 10MHZ 8SOIC 250000
  • 710 $0.0707
  • 1,515 $0.0662
  • 2,350 $0.0639
  • 3,375 $0.0593
  • 4,380 $0.0571
  • 5,475 $0.0548
$0.0548 / $0.0707 Buy Now

Part Details for NE5532DR

NE5532DR CAD Models

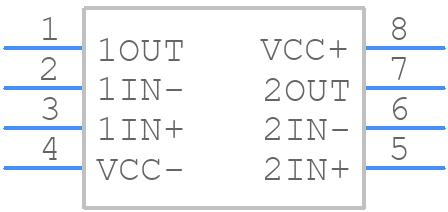

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

NE5532DR Part Data Attributes

Parametric Data
NE5532DR Texas Instruments
Buy Now Datasheet
Compare Parts:
NE5532DR Texas Instruments Dual, 30-V, 10-MHz, low-noise operational amplifier for audio applications 8-SOIC 0 to 70
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer TEXAS INSTRUMENTS INC
Part Package Code SOIC
Package Description GREEN, PLASTIC, MS-012AA, SOIC-8
Pin Count 8
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.33.00.01
Samacsys Manufacturer Texas Instruments
Amplifier Type OPERATIONAL AMPLIFIER
Architecture VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB) 1 µA
Bias Current-Max (IIB) @25C 0.8 µA
Common-mode Reject Ratio-Min 70 dB
Common-mode Reject Ratio-Nom 100 dB
Frequency Compensation YES
Input Offset Current-Max (IIO) 0.15 µA
Input Offset Voltage-Max 4000 µV
JESD-30 Code R-PDSO-G8
JESD-609 Code e4
Length 4.9 mm
Low-Bias NO
Low-Offset NO
Micropower NO
Moisture Sensitivity Level 1
Neg Supply Voltage Limit-Max -22 V
Neg Supply Voltage-Nom (Vsup) -15 V
Number of Functions 2
Number of Terminals 8
Operating Temperature-Max 70 °C
Operating Temperature-Min
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP8,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Packing Method TR
Peak Reflow Temperature (Cel) 260
Power YES
Programmable Power NO
Qualification Status Not Qualified
Seated Height-Max 1.75 mm
Slew Rate-Nom 9 V/us
Supply Current-Max 16 mA
Supply Voltage Limit-Max 22 V
Supply Voltage-Nom (Vsup) 15 V
Surface Mount YES
Technology BIPOLAR
Temperature Grade COMMERCIAL
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Unity Gain BW-Nom 10000
Voltage Gain-Min 10000
Wideband NO
Width 3.9 mm

Alternate Parts for NE5532DR

This table gives cross-reference parts and alternative options found for NE5532DR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of NE5532DR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
NE5532DRG4 Texas Instruments $0.4459 Dual, 30-V, 10-MHz, low-noise operational amplifier for audio applications 8-SOIC 0 to 70 NE5532DR vs NE5532DRG4
NE5532DG4 Texas Instruments Check for Price Dual Low-Noise High-Speed Audio Operational Amplifier 8-SOIC 0 to 70 NE5532DR vs NE5532DG4
NE5532DRE4 Texas Instruments Check for Price Dual, 30-V, 10-MHz, low-noise operational amplifier for audio applications 8-SOIC 0 to 70 NE5532DR vs NE5532DRE4
Part Number Manufacturer Composite Price Description Compare
OP471GS-REEL Analog Devices Inc Check for Price High Speed, Low Noise Quad Operational Amplifier NE5532DR vs OP471GS-REEL
TLE2024BMDWR Texas Instruments $4.0941 High-Speed, Low-Power, Precision Quad Operational Amplifier 16-SOIC -55 to 125 NE5532DR vs TLE2024BMDWR
NE5532FE NXP Semiconductors Check for Price IC DUAL OP-AMP, 5000 uV OFFSET-MAX, 10 MHz BAND WIDTH, CDIP8, Operational Amplifier NE5532DR vs NE5532FE
NE5532N onsemi Check for Price Operational Amplifier, Low Noise, Dual, 8 LEAD PDIP, 50-TUBE NE5532DR vs NE5532N
AD713JR-16 Analog Devices Inc Check for Price Precision, High Speed, BiFET Quad Op Amp NE5532DR vs AD713JR-16
NE5532DR2 onsemi Check for Price Operational Amplifier, Low Noise, Dual, SO-16 WB, 1000-REEL NE5532DR vs NE5532DR2
SA5532PE4 Texas Instruments Check for Price Dual Low-Noise Operational Amplifier 8-PDIP -40 to 85 NE5532DR vs SA5532PE4
SA5532NG onsemi Check for Price Operational Amplifier, Low Noise, Dual -40 to +85°C, 8 LEAD PDIP, 50-TUBE NE5532DR vs SA5532NG
LT1037CDW Texas Instruments Check for Price IC OP-AMP, 110 uV OFFSET-MAX, 60 MHz BAND WIDTH, PDSO16, SO-16, Operational Amplifier NE5532DR vs LT1037CDW
OP400BIHS Analog Devices Inc Check for Price IC QUAD OP-AMP, 400 uV OFFSET-MAX, 0.5 MHz BAND WIDTH, PDSO16, PLASTIC, SOL-16, Operational Amplifier NE5532DR vs OP400BIHS

NE5532DR Related Parts

NE5532DR Frequently Asked Questions (FAQ)

  • The maximum power supply voltage for the NE5532DR is ±18V, but it's recommended to operate within ±15V for optimal performance.

  • Yes, the NE5532DR can be used as a single-supply op-amp, but it's recommended to use a voltage divider to create a virtual ground at half the supply voltage.

  • The input impedance of the NE5532DR is typically around 2MΩ, but it can vary depending on the specific application and operating conditions.

  • Yes, the NE5532DR is suitable for audio applications due to its low noise and distortion, high gain bandwidth, and high slew rate.
