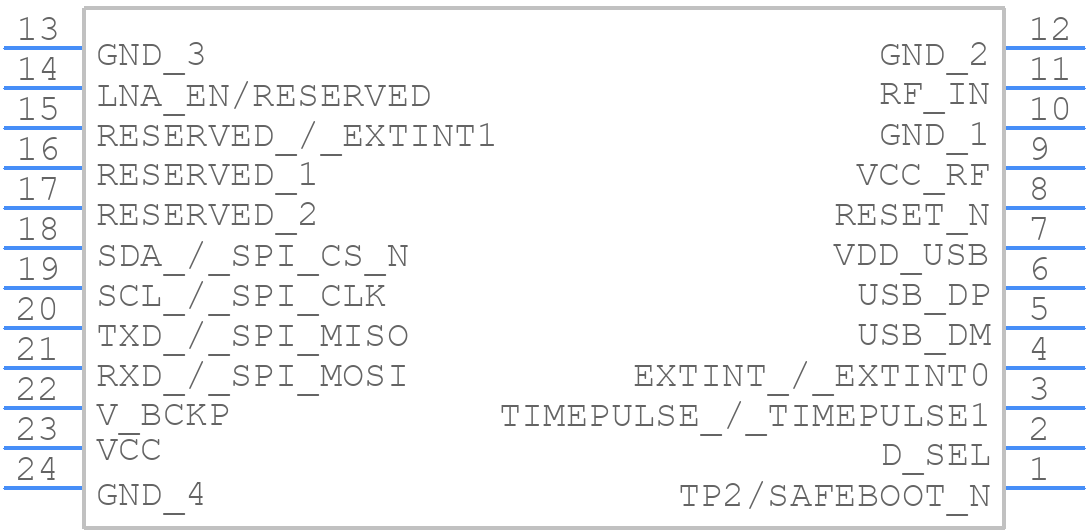

Part Symbol
-

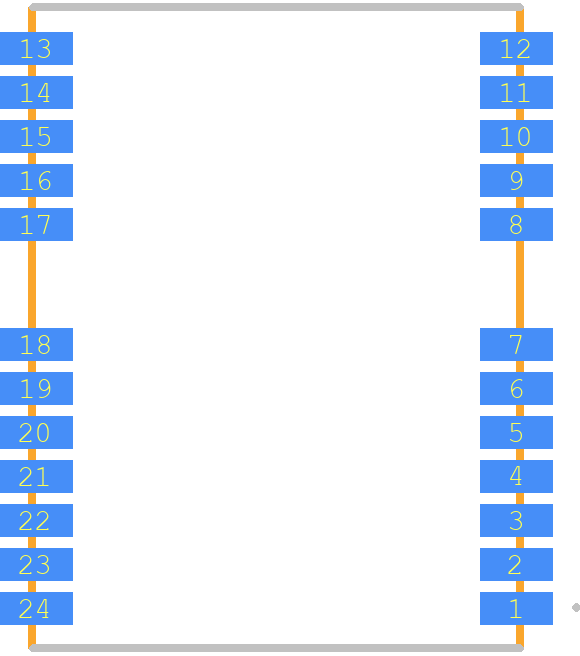

Footprint
-

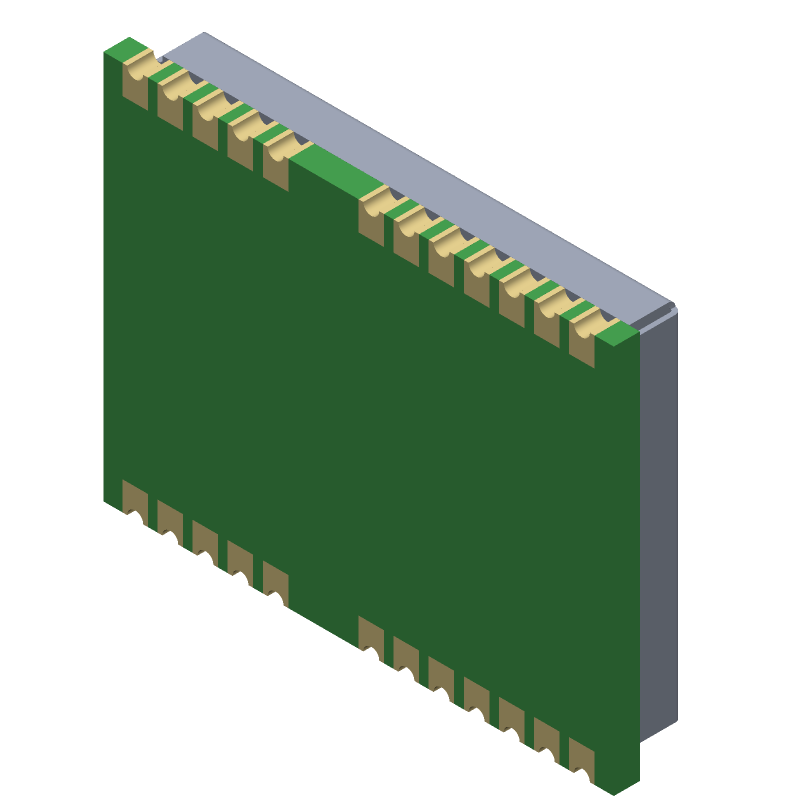

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Telecom Circuit, 1-Func, MODULE-24
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
NEO-M8N-0-10 by u-blox AG is an Other Telecom IC.
Other Telecom ICs are under the broader part category of Telecommunication Circuits.
A telecommunications circuit transmits and receives information between points. Key components include transmitters, receivers, amplifiers, and multiplexers. Read more about Telecommunication Circuits on our Telecommunication Circuits part category page.
Part # | Distributor | Description | Stock | Price | Buy | |
---|---|---|---|---|---|---|
|
Chip-Germany GmbH | RoHS: Not Compliant | 5 |
|
RFQ | |
|
Win Source Electronics | RF RCVR GNSS/GPS 1.575GHZ 24LCC | 8000 |
|
$8.1250 / $12.1875 | Buy Now |
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
|
NEO-M8N-0-10
u-blox AG
Buy Now
Datasheet
|
Compare Parts:
NEO-M8N-0-10
u-blox AG
Telecom Circuit, 1-Func, MODULE-24
|
Rohs Code | Yes | |
Part Life Cycle Code | Obsolete | |
Ihs Manufacturer | U-BLOX AG | |
Package Description | MODULE-24 | |
Reach Compliance Code | unknown | |
HTS Code | 8542.39.00.01 | |
Samacsys Manufacturer | u-blox | |
JESD-30 Code | R-XDMA-N24 | |
Length | 16 mm | |
Moisture Sensitivity Level | 4 | |
Number of Functions | 1 | |
Number of Terminals | 24 | |
Operating Temperature-Max | 85 °C | |
Operating Temperature-Min | -40 °C | |
Package Body Material | UNSPECIFIED | |
Package Code | DMA | |
Package Shape | RECTANGULAR | |
Package Style | MICROELECTRONIC ASSEMBLY | |
Screening Level | AEC-Q100 | |
Seated Height-Max | 2.6 mm | |
Supply Voltage-Nom | 3 V | |
Surface Mount | NO | |
Telecom IC Type | TELECOM CIRCUIT | |
Temperature Grade | INDUSTRIAL | |
Terminal Form | NO LEAD | |
Terminal Position | DUAL | |
Width | 12.2 mm |
This table gives cross-reference parts and alternative options found for NEO-M8N-0-10. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of NEO-M8N-0-10, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
Part Number | Manufacturer | Composite Price | Description | Compare |
---|---|---|---|---|
NEO-M8N-0 | u-blox AG | Check for Price | Telecom Circuit, 1-Func, LCC-24 | NEO-M8N-0-10 vs NEO-M8N-0 |
The recommended power-up sequence is to first apply power to the module, then wait for at least 100 ms before applying the enable signal (EN pin). This ensures that the module is properly initialized.
The NEO-M8N-0-10 has an internal antenna, but you can also use an external antenna. To configure the module for use with an external antenna, you need to connect the antenna to the ANT pin and set the ANT_SEL pin to HIGH. You may also need to adjust the antenna impedance matching network.
The maximum update rate of the NEO-M8N-0-10 is 10 Hz, which means it can provide location data up to 10 times per second.
To enable SBAS on the NEO-M8N-0-10, you need to send a UBX-CFG-SBAS command to the module. This command enables the reception of SBAS signals and allows the module to use them to improve its positioning accuracy.
The typical current consumption of the NEO-M8N-0-10 is around 45 mA during continuous mode and 20 mA during power-save mode.
