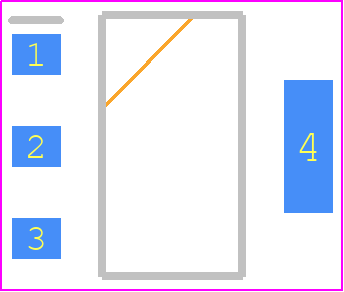

Footprint
-

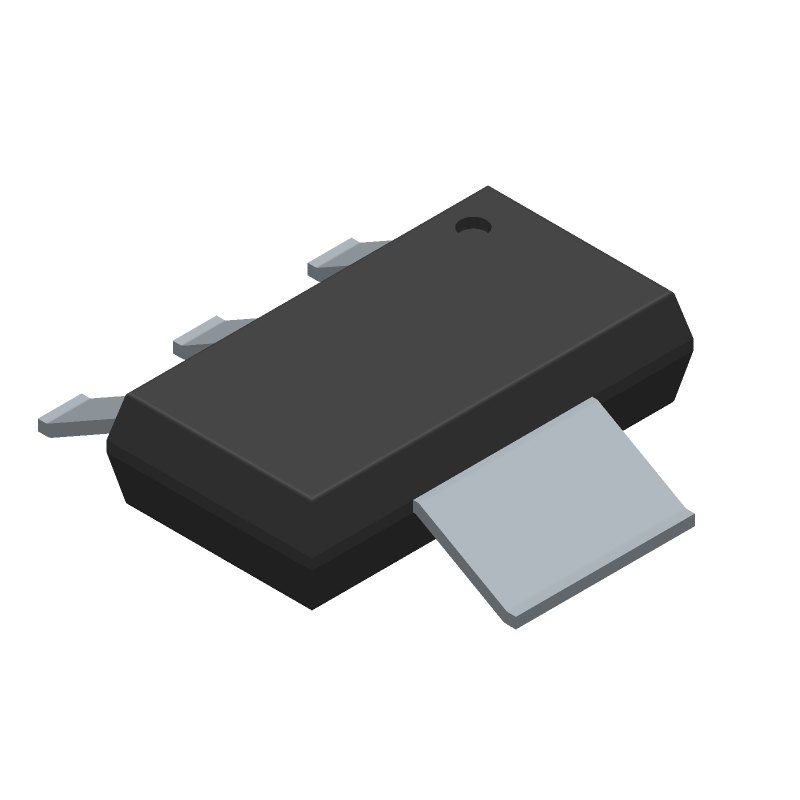

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for NJT4030PT1G by onsemi
Results Overview of NJT4030PT1G by onsemi
- Distributor Offerings: (17 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (5 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
NJT4030PT1G Information
NJT4030PT1G by onsemi is a Power Bipolar Transistor.
Power Bipolar Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for NJT4030PT1G
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
81Y6979
|
Newark | Transistor, Pnp, 40 V, 3 A, Sot-223-4, Transistor Polarity:Pnp, Collector Emitter Voltage Max:40V, Continuous Collector Current:3A, Power Dissipation:2W, Transistor Mounting:Surface Mount, No. Of Pins:4Pins, Product Range:- Rohs Compliant: Yes |Onsemi NJT4030PT1G RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 850 |
|
$0.1380 | Buy Now |
|
DISTI #
29X6195
|
Newark | Transistor, Pnp, -40V, -3A, Sot-223-4, Transistor Polarity:Pnp, Collector Emitter Voltage Max:40V, Continuous Collector Current:3A, Power Dissipation:2W, Transistor Mounting:Surface Mount, No. Of Pins:4Pins, Product Range:- Rohs Compliant: Yes |Onsemi NJT4030PT1G RoHS: Compliant Min Qty: 2000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.1500 / $0.2000 | Buy Now |
|
DISTI #
NJT4030PT1G
|
Avnet Americas | Trans GP BJT PNP 40V 3A 4-Pin(3+Tab) SOT-223 T/R - Tape and Reel (Alt: NJT4030PT1G) RoHS: Compliant Min Qty: 5000 Package Multiple: 1 Container: Reel | 62000 Partner Stock |
|
$0.1258 / $0.1351 | Buy Now |
|
DISTI #
NJT4030PT1G
|
Avnet Americas | Trans GP BJT PNP 40V 3A 4-Pin(3+Tab) SOT-223 T/R - Tape and Reel (Alt: NJT4030PT1G) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 10 Weeks, 0 Days Container: Reel | 0 |
|
$0.1435 / $0.1570 | Buy Now |
|
DISTI #
70275453
|
RS | ON Semi NJT4030PT1G PNP Bipolar Transistor, 5 A, 40 V SOT-223 Min Qty: 10 Package Multiple: 1 Container: Bulk | 0 |
|
$0.3980 / $0.4680 | RFQ |
|
|
Bristol Electronics | 3341 |
|
RFQ | ||
|
|
Bristol Electronics | 1748 |
|
RFQ | ||
|
|
Bristol Electronics | Min Qty: 8 | 1395 |
|
$0.1350 / $0.6750 | Buy Now |
|
|
Rochester Electronics | NJT4030P - Power Bipolar Transistor, 3A, 40V, PNP, TO-261AA, Plastic/Epoxy, 4 Pin RoHS: Not Compliant Status: Active Min Qty: 1 | 7000 |
|
$0.1220 / $0.1968 | Buy Now |
|
DISTI #
NJT4030PT1G
|
Avnet Asia | Trans GP BJT PNP 40V 3A 4-Pin(3+Tab) SOT-223 T/R (Alt: NJT4030PT1G) RoHS: Compliant Min Qty: 5000 Package Multiple: 1000 Lead time: 10 Weeks, 0 Days | 0 |
|
$0.1610 / $0.2831 | Buy Now |
Part Details for NJT4030PT1G
NJT4030PT1G CAD Models
NJT4030PT1G Part Data Attributes
|
|
NJT4030PT1G
onsemi
Buy Now
Datasheet
|
Compare Parts:
NJT4030PT1G
onsemi
Bipolar Power Transistors, PNP, 3.0 A, 40 V, SOT-223 (TO-261) 4 LEAD, 1000-REEL
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | SOT-223 (TO-261) 4 LEAD | |
| Package Description | TO-261, 4 PIN | |
| Pin Count | 4 | |
| Manufacturer Package Code | 0.0318 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | onsemi | |
| Case Connection | COLLECTOR | |
| Collector Current-Max (IC) | 3 A | |
| Collector-Emitter Voltage-Max | 40 V | |
| Configuration | SINGLE | |
| DC Current Gain-Min (hFE) | 100 | |
| JEDEC-95 Code | TO-261AA | |
| JESD-30 Code | R-PDSO-G4 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 4 | |
| Operating Temperature-Max | 150 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity/Channel Type | PNP | |
| Qualification Status | Not Qualified | |
| Surface Mount | YES | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Transistor Application | AMPLIFIER | |
| Transistor Element Material | SILICON | |
| Transition Frequency-Nom (fT) | 160 MHz |
