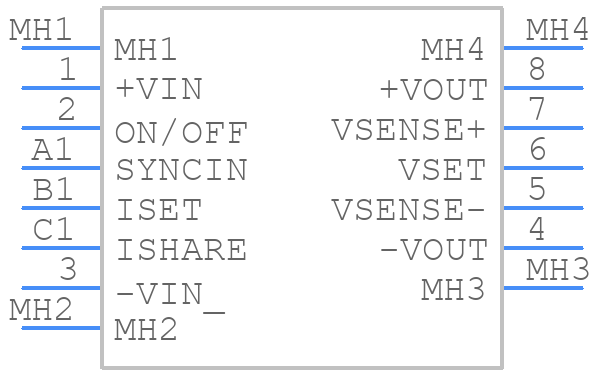

Part Symbol
-

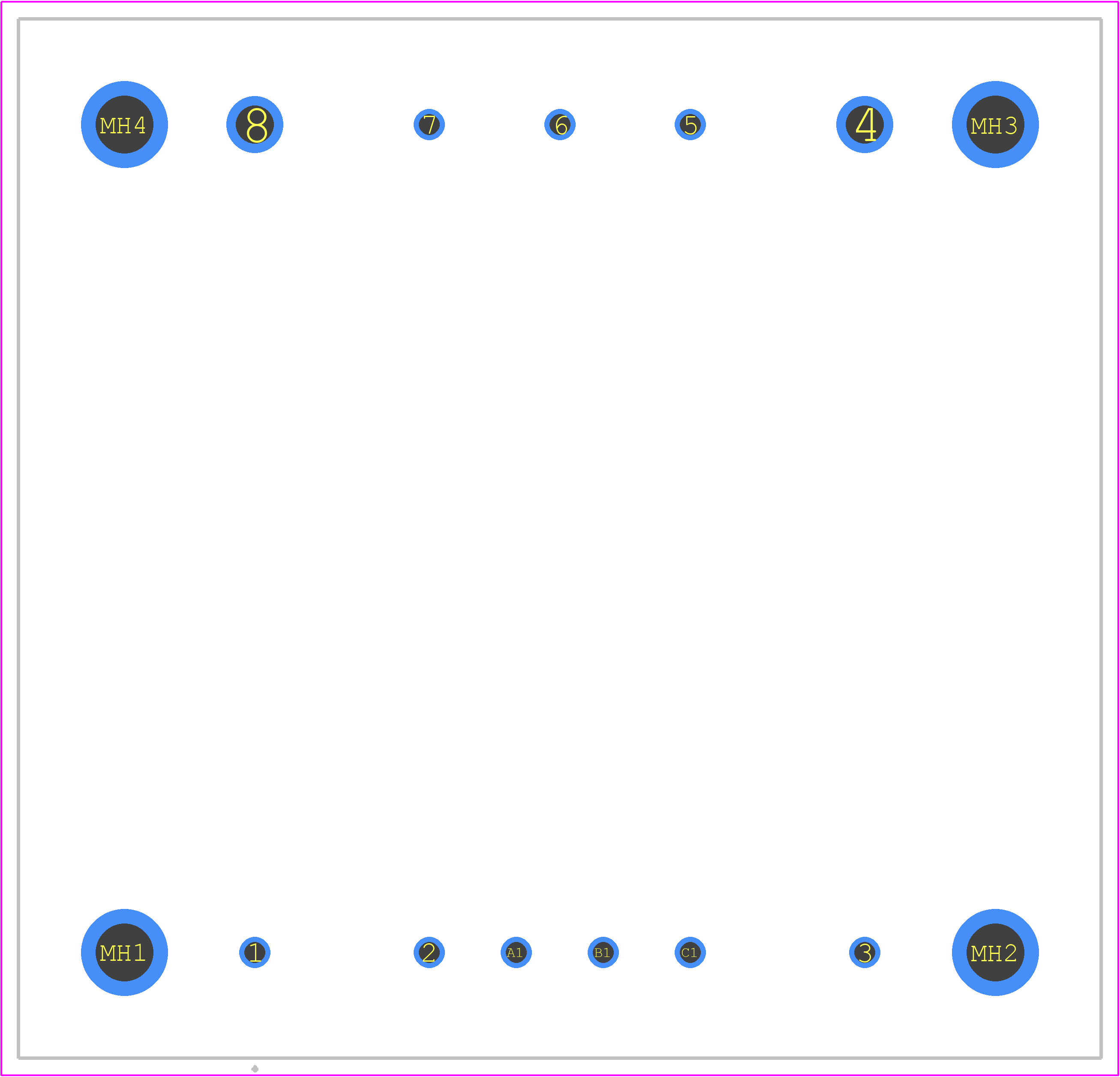

Footprint
-

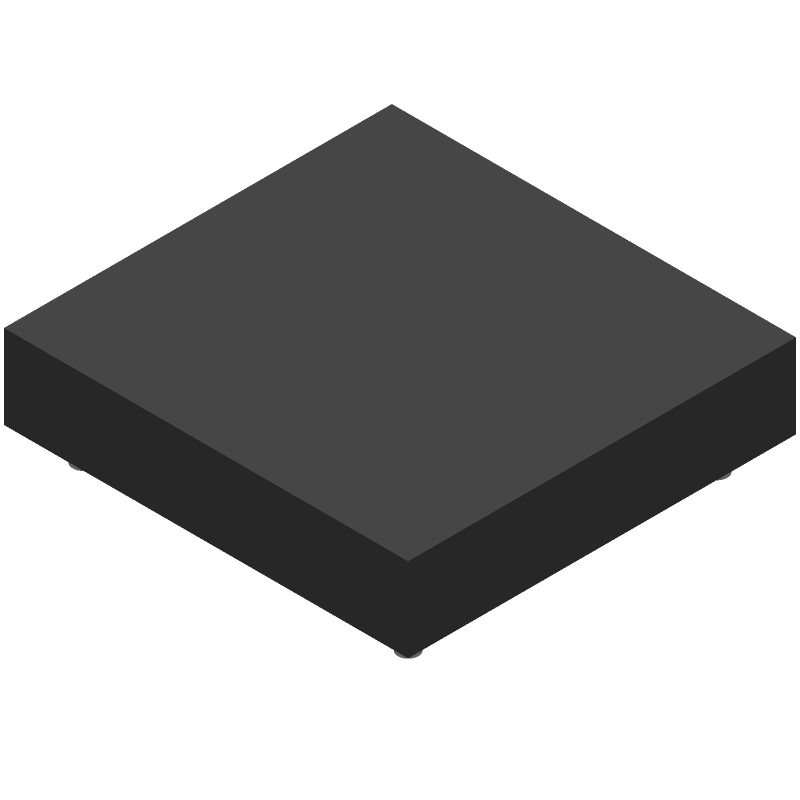

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for NQ60W60HGC40NRF-G by SynQor
Results Overview of NQ60W60HGC40NRF-G by SynQor
- Distributor Offerings: (0 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Electronic Manufacturing
NQ60W60HGC40NRF-G Information
NQ60W60HGC40NRF-G by SynQor is a Power Supply Module.
Power Supply Modules are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Part Details for NQ60W60HGC40NRF-G
NQ60W60HGC40NRF-G CAD Models
NQ60W60HGC40NRF-G Part Data Attributes
|
|
NQ60W60HGC40NRF-G
SynQor
Buy Now
Datasheet
|
Compare Parts:
NQ60W60HGC40NRF-G
SynQor
DC-DC Regulated Power Supply Module, 1 Output, Hybrid, ROHS COMPLIANT, HALF BRICK, PACKAGE-11
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | SYNQOR INC | |
| Package Description | ROHS COMPLIANT, HALF BRICK, PACKAGE-11 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | Synqor | |
| Analog IC - Other Type | DC-DC REGULATED POWER SUPPLY MODULE | |
| Input Voltage-Max | 60 V | |
| Input Voltage-Min | 9 V | |
| Input Voltage-Nom | 28 V | |
| JESD-30 Code | R-XDMA-P11 | |
| JESD-609 Code | e3 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 11 | |
| Output Voltage-Max | 60 V | |
| Output Voltage-Min | ||
| Package Body Material | UNSPECIFIED | |
| Package Code | DMA | |
| Package Shape | RECTANGULAR | |
| Package Style | MICROELECTRONIC ASSEMBLY | |
| Surface Mount | NO | |
| Technology | HYBRID | |
| Terminal Finish | Matte Tin (Sn) - with Nickel (Ni) barrier | |
| Terminal Form | PIN/PEG | |
| Terminal Position | DUAL | |
| Total Power Output-Max | 2400 W | |
| Trim/Adjustable Output | YES |
