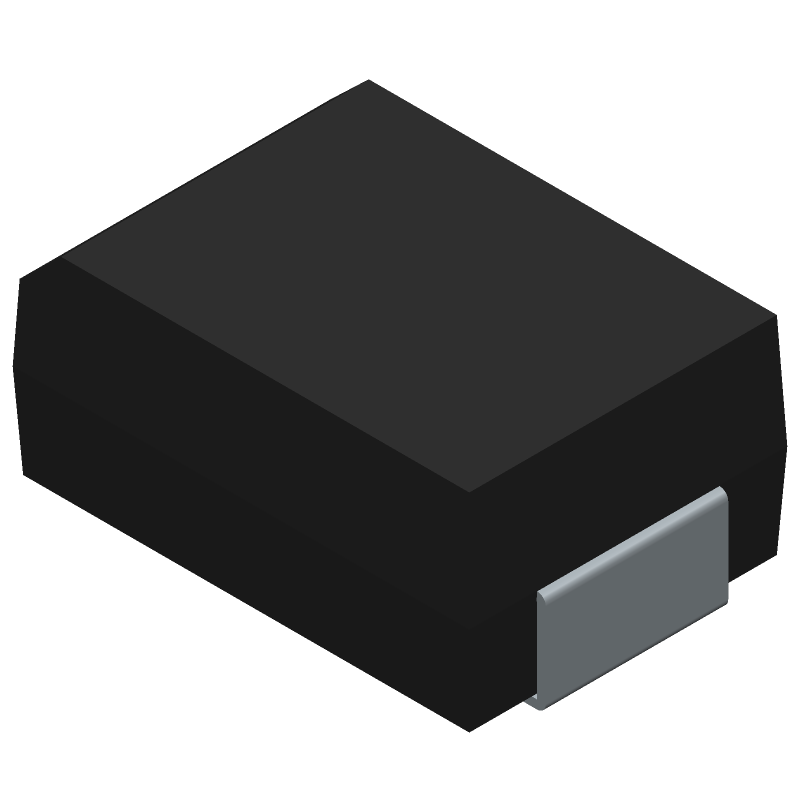

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for NRVUS160VT3G-GA01 by onsemi
Results Overview of NRVUS160VT3G-GA01 by onsemi
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Energy and Power Systems
Renewable Energy
NRVUS160VT3G-GA01 Information
NRVUS160VT3G-GA01 by onsemi is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for NRVUS160VT3G-GA01
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
NRVUS160VT3G-GA01
|
Avnet Silica | Power Rectifier UltraFast Recovery 1 A 50600 V (Alt: NRVUS160VT3G-GA01) RoHS: Compliant Min Qty: 10000 Package Multiple: 2500 Lead time: 15 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
NRVUS160VT3G-GA01
|
EBV Elektronik | Power Rectifier UltraFast Recovery 1 A 50600 V (Alt: NRVUS160VT3G-GA01) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 15 Weeks, 0 Days | EBV - 0 |
|
Buy Now | |
|
|
Vyrian | Diodes | 623 |
|
RFQ |
Part Details for NRVUS160VT3G-GA01
NRVUS160VT3G-GA01 CAD Models
NRVUS160VT3G-GA01 Part Data Attributes
|
|
NRVUS160VT3G-GA01
onsemi
Buy Now
Datasheet
|
Compare Parts:
NRVUS160VT3G-GA01
onsemi
Power Rectifier, Ultra-Fast Recovery, 1 A, 600 V, 2500-REEL, Automotive Qualified
|
| Pbfree Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Package Description | SMB, 2 PIN | |
| Manufacturer Package Code | 403A-03 | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | onsemi | |
| Additional Feature | FREE WHEELING DIODE | |
| Application | HIGH VOLTAGE ULTRA FAST RECOVERY POWER | |
| Breakdown Voltage-Min | 600 V | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 1.25 V | |
| JESD-30 Code | R-PDSO-C2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Pk Forward Current-Max | 35 A | |
| Number of Elements | 1 | |
| Number of Phases | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 175 °C | |
| Operating Temperature-Min | -65 °C | |
| Output Current-Max | 2 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Reference Standard | AEC-Q101 | |
| Rep Pk Reverse Voltage-Max | 600 V | |
| Reverse Current-Max | 5 µA | |
| Reverse Recovery Time-Max | 0.075 µs | |
| Reverse Test Voltage | 600 V | |
| Surface Mount | YES | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | C BEND | |
| Terminal Position | DUAL |
