Amplifier Circuits / Operational Amplifiers / OP213FSZ
Datasheets
OP213FSZ by:

Low Noise, Low Drift Single-Supply Operational Amplifiers (Dual)

Part Details for OP213FSZ by Analog Devices Inc

Results Overview of OP213FSZ by Analog Devices Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research Internet of Things (IoT) Computing and Data Storage Aerospace and Defense Healthcare Telecommunications Automotive

OP213FSZ Information

OP213FSZ by Analog Devices Inc is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.

Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.

Price & Stock for OP213FSZ

Part # Distributor Description Stock Price Buy
DISTI # 60AK8824
Newark Op-Amp, 3.4Mhz, -40 To 85Deg C, Nsoic-8, No. Of Channels:2Channels, Gain Bandwidth Product:3.4Mhz, Supply Voltage Range:4V To 36V, ± 2V To ± 18V, Ic Case/Package:Nsoic, No. Of Pins:8Pins, Amplifier Type:General Purpose Rohs Compliant: Yes |Analog Devices OP213FSZ RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk 136
  • 1 $4.6100
  • 10 $4.6100
  • 25 $4.6100
  • 50 $4.6100
  • 196 $4.6100
  • 294 $4.6100
  • 588 $4.6100
$4.6100 Buy Now
Analog Devices Inc DUAL PRECISION OP AMP IC Package Multiple: 98 206
  • 1 $6.5700
  • 10 $7.0160
  • 1,000 $3.7700
$3.7700 / $7.0160 Buy Now
Bristol Electronics   241
RFQ
Bristol Electronics   123
RFQ
Rochester Electronics OP213 - Low Noise, Low Drift Single-Supply Operational Amplifier RoHS: Compliant Status: Active Min Qty: 1 490
  • 1 $5.3100
  • 25 $5.2000
  • 100 $4.9900
  • 500 $4.7800
  • 1,000 $4.5100
$4.5100 / $5.3100 Buy Now
DISTI # OP213FSZ
TME IC: operational amplifier, 3.4MHz, Ch: 2, SO8, ±2÷18VDC,4÷36VDC Min Qty: 1 0
  • 1 $12.7000
  • 3 $11.2000
  • 10 $10.1000
  • 25 $9.3800
$9.3800 / $12.7000 RFQ
ComSIT USA LOW NOISE, LOW DRIFT SINGLE-SUPPLY OPERATIONAL AMPLIFIER Operational Amplifier, 2 Func, 325uV Offset-Max, BIPolar, PDSO8 RoHS: Compliant ECCN: EAR99 Stock DE - 3
Stock ES - 98
Stock US - 0
Stock MX - 0
Stock CN - 0
Stock HK - 0
RFQ
DISTI # OP213FSZ
Richardson RFPD AMPLIFIER - OP AMPS RoHS: Compliant Min Qty: 98 0
  • 98 $5.3300
  • 100 $5.1900
  • 500 $5.0600
  • 1,000 $5.0000
$5.0000 / $5.3300 Buy Now
DISTI # SMC-OP213FSZ
Sensible Micro Corporation OEM Excess 5-7 Days Leadtime, We are an AS6081 Certified Vendor, 1 Yr Warranty RoHS: Not Compliant Min Qty: 25 Lead time: 2 Weeks, 0 Days 231
RFQ
Vyrian Amplifiers 149
RFQ
Win Source Electronics IC OPAMP GP 3.4MHZ RRO 8SOIC 3000
  • 6 $8.6666
  • 15 $7.1111
  • 22 $6.8889
  • 30 $6.6667
  • 39 $6.4444
  • 52 $5.7778
$5.7778 / $8.6666 Buy Now

Part Details for OP213FSZ

OP213FSZ CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

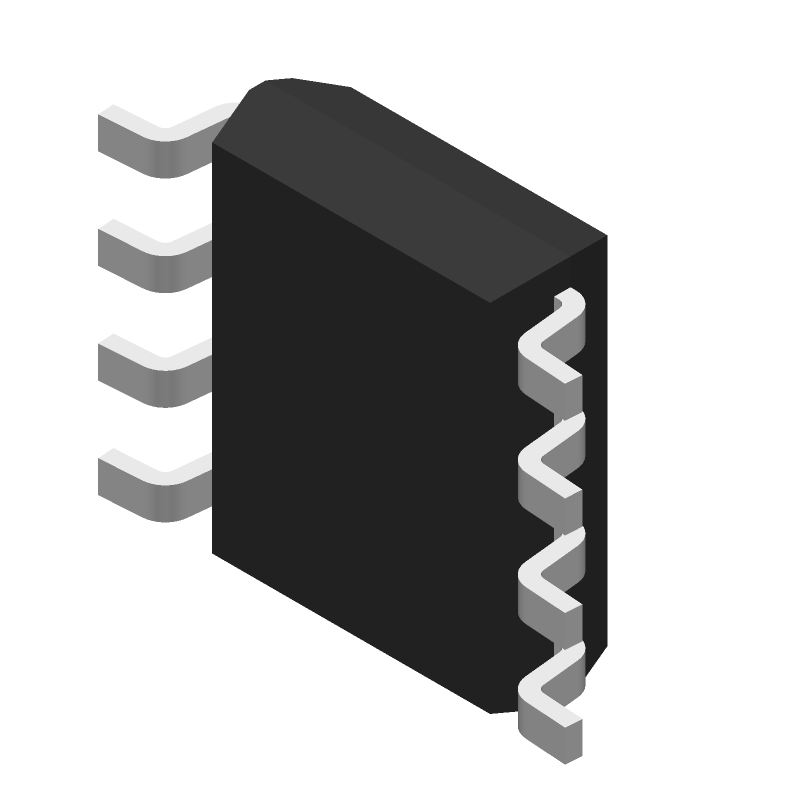

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

OP213FSZ Part Data Attributes

Parametric Data
OP213FSZ Analog Devices Inc
Buy Now Datasheet
Compare Parts:
OP213FSZ Analog Devices Inc Low Noise, Low Drift Single-Supply Operational Amplifiers (Dual)
Pbfree Code No
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer ANALOG DEVICES INC
Part Package Code SOIC
Package Description ROHS COMPLIANT, MS-012AA, SOIC-8
Pin Count 8
Manufacturer Package Code R-8
Reach Compliance Code compliant
HTS Code 8542.33.00.01
Samacsys Manufacturer Analog Devices
Amplifier Type OPERATIONAL AMPLIFIER
Architecture VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB) 0.7 µA
Bias Current-Max (IIB) @25C 0.65 µA
Common-mode Reject Ratio-Min 87 dB
Common-mode Reject Ratio-Nom 94 dB
Frequency Compensation YES
Input Offset Voltage-Max 325 µV
JESD-30 Code R-PDSO-G8
JESD-609 Code e3
Length 4.9 mm
Low-Offset YES
Moisture Sensitivity Level 1
Neg Supply Voltage Limit-Max -18 V
Neg Supply Voltage-Nom (Vsup) -15 V
Number of Functions 2
Number of Terminals 8
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP8,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Seated Height-Max 1.75 mm
Slew Rate-Min 0.6 V/us
Slew Rate-Nom 1.2 V/us
Supply Current-Max 5 mA
Supply Voltage Limit-Max 18 V
Supply Voltage-Nom (Vsup) 15 V
Surface Mount YES
Technology BIPOLAR
Temperature Grade INDUSTRIAL
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Unity Gain BW-Nom 3400
Voltage Gain-Min 2000000
Width 3.9 mm

Alternate Parts for OP213FSZ

This table gives cross-reference parts and alternative options found for OP213FSZ. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of OP213FSZ, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
OP213FS Analog Devices Inc Check for Price Low Noise, Low Drift Single-Supply Operational Amplifiers (Dual) OP213FSZ vs OP213FS
OP213FS-REEL7 Analog Devices Inc Check for Price Low Noise, Low Drift Single-Supply Operational Amplifiers (Dual) OP213FSZ vs OP213FS-REEL7
OP213FSZ-REEL Analog Devices Inc $9.0871 Low Noise, Low Drift Single-Supply Operational Amplifiers (Dual) OP213FSZ vs OP213FSZ-REEL
OP213FSZ-REEL7 Rochester Electronics LLC Check for Price DUAL OP-AMP, 325 uV OFFSET-MAX, 3.4 MHz BAND WIDTH, PDSO8, ROHS COMPLIANT, MS-012AA, SOIC-8 OP213FSZ vs OP213FSZ-REEL7
OP213FS-REEL7 Rochester Electronics LLC Check for Price DUAL OP-AMP, 325 uV OFFSET-MAX, 3.4 MHz BAND WIDTH, PDSO8, MS-012AA, SOIC-8 OP213FSZ vs OP213FS-REEL7
OP213FSZ-REEL Rochester Electronics LLC Check for Price DUAL OP-AMP, 325uV OFFSET-MAX, 3.4MHz BAND WIDTH, PDSO8, ROHS COMPLIANT, MS-012AA, SOIC-8 OP213FSZ vs OP213FSZ-REEL

OP213FSZ Related Parts

OP213FSZ Frequently Asked Questions (FAQ)

  • The maximum power dissipation of the OP213FSZ is 670mW, which is calculated based on the maximum junction temperature (TJ) of 150°C and the thermal resistance (θJA) of 125°C/W.

  • To ensure stability in a unity-gain configuration, it's recommended to add a 10nF to 22nF capacitor in parallel with a 1kΩ to 2kΩ resistor between the output and the inverting input. This helps to compensate for the op-amp's phase shift and prevent oscillations.

  • For optimal performance, it's recommended to use a star-grounding technique, where the grounds of the power supplies, analog circuits, and digital circuits are connected at a single point. Additionally, keep the input and output traces short and away from noise sources, and use a solid ground plane to reduce electromagnetic interference (EMI).

  • While the OP213FSZ can be used as a comparator, it's not the most suitable choice due to its relatively slow slew rate (2.5V/μs) and limited bandwidth (3MHz). For comparator applications, a dedicated comparator IC like the AD790 or AD8561 is recommended.

  • To prevent electrostatic discharge (ESD) damage, handle the OP213FSZ by the body, not the pins. Use an anti-static wrist strap or mat, and ensure that the workspace is ESD-protected. Additionally, use ESD-protected devices and tools, and avoid touching the pins or leads during handling.
