Amplifier Circuits / Operational Amplifiers / OPA2333AIDGKR
Datasheets
OPA2333AIDGKR by: Texas Instruments

1.8-V, 17-µA, two-channel, micropower zero-drift CMOS operational amplifier 8-VSSOP -40 to 125

Part Details for OPA2333AIDGKR by Texas Instruments

Overview of OPA2333AIDGKR by Texas Instruments

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Available Datasheets

Part # Manufacturer Description Datasheet
OPA2333AIDGKRG4 Texas Instruments 1.8V, 17µA, 2 channels, microPower, Precision, Zero Drift CMOS Op Amp 8-VSSOP -40 to 125
OPA2333AIDGKR Texas Instruments 1.8V, 17µA, 2 channels, microPower, Precision, Zero Drift CMOS Op Amp 8-VSSOP -40 to 125

Price & Stock for OPA2333AIDGKR

Part # Distributor Description Stock Price Buy
DISTI # 3004903
Farnell OP-AMP, 350KHZ, 0.16V/US, VSSOP-8 RoHS: Compliant Min Qty: 1 Lead time: 40 Weeks, 1 Days Container: Cut Tape 2265
  • 1 $3.4147
  • 10 $2.7267
  • 25 $2.5610
  • 50 $2.4081
  • 100 $2.2425
  • 250 $2.1278
  • 500 $2.0259
  • 1,000 $1.9240
$1.9240 / $3.4147 Buy Now
DISTI # 3004903RL
Farnell OP-AMP, 350KHZ, 0.16V/US, VSSOP-8 RoHS: Compliant Min Qty: 100 Lead time: 40 Weeks, 1 Days Container: Reel 2265
  • 100 $2.2425
  • 250 $2.1278
  • 500 $2.0259
  • 1,000 $1.9240
$1.9240 / $2.2425 Buy Now
Bristol Electronics   50557
RFQ
Rochester Electronics OPA2333 1.8V, 17A, 2 channels, microPower, Precision, Zero Drift CMOS Op Amp RoHS: Compliant Status: Active Min Qty: 1 11615
  • 1 $1.5100
  • 25 $1.4800
  • 100 $1.4200
  • 500 $1.3600
  • 1,000 $1.2800
$1.2800 / $1.5100 Buy Now
DISTI # OPA2333AIDGKR
TME IC: operational amplifier, 350kHz, Ch: 2, VSSOP8, reel,tape Min Qty: 1 0
  • 1 $4.0100
  • 5 $3.6100
  • 25 $3.1900
  • 100 $2.8700
  • 500 $2.6700
  • 2,500 $2.5800
$2.5800 / $4.0100 RFQ
Ameya Holding Limited MSOP 8/A°/1.8V, 17UA, 2UV, MICROPOWER CMOS ZERO-DRIFT SERIES OPERATIONAL AM 2500
RFQ
DISTI # C1S746204893328
Chip1Stop Instruments, Operational Amplifiers, Buffer Amplifiers RoHS: Compliant pbFree: Yes Container: Bulk 2217
  • 1 $2.3200
  • 10 $1.9400
  • 50 $1.8600
  • 100 $1.8300
  • 500 $1.8100
  • 1,000 $1.6000
$1.6000 / $2.3200 Buy Now
CHIPMALL.COM LIMITED 350kHz 2uV 70pA Dual channel MSOP-8 Precision Op Amps ROHS 374
  • 1 $2.1818
  • 10 $1.8855
  • 30 $1.7002
  • 100 $1.3963
  • 500 $1.3097
  • 1,000 $1.2732
$1.2732 / $2.1818 Buy Now
LCSC 350kHz 2uV 70pA Dual channel MSOP-8 Precision Op Amps ROHS 879
  • 1 $2.2727
  • 10 $1.9641
  • 30 $1.7710
  • 100 $1.4545
  • 500 $1.3643
  • 1,000 $1.3263
$1.3263 / $2.2727 Buy Now
Win Source Electronics IC OPAMP ZRO-DRFT 350KHZ 8VSSOP 14946
  • 30 $1.7610
  • 70 $1.4450
  • 110 $1.4000
  • 150 $1.3550
  • 195 $1.3100
  • 260 $1.1740
$1.1740 / $1.7610 Buy Now

Part Details for OPA2333AIDGKR

OPA2333AIDGKR CAD Models

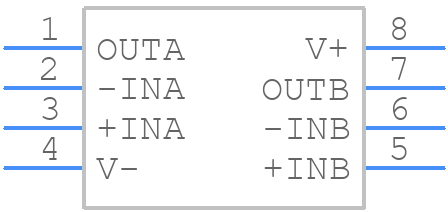

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

OPA2333AIDGKR Part Data Attributes

Parametric Data
OPA2333AIDGKR Texas Instruments
Buy Now Datasheet
Compare Parts:
OPA2333AIDGKR Texas Instruments 1.8-V, 17-µA, two-channel, micropower zero-drift CMOS operational amplifier 8-VSSOP -40 to 125
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer TEXAS INSTRUMENTS INC
Part Package Code MSOP
Package Description GREEN, PLASTIC, MSOP-8
Pin Count 8
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.33.00.01
Samacsys Manufacturer Texas Instruments
Amplifier Type OPERATIONAL AMPLIFIER
Architecture VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB) 0.0002 µA
Bias Current-Max (IIB) @25C 0.0002 µA
Common-mode Reject Ratio-Min 106 dB
Common-mode Reject Ratio-Nom 130 dB
Frequency Compensation YES
Input Offset Current-Max (IIO) 0.0004 µA
Input Offset Voltage-Max 10 µV
JESD-30 Code S-PDSO-G8
JESD-609 Code e4
Length 3 mm
Low-Bias YES
Low-Offset YES
Micropower YES
Moisture Sensitivity Level 1
Neg Supply Voltage Limit-Max
Neg Supply Voltage-Nom (Vsup)
Number of Functions 2
Number of Terminals 8
Operating Temperature-Max 125 °C
Operating Temperature-Min -40 °C
Package Body Material PLASTIC/EPOXY
Package Code TSSOP
Package Equivalence Code TSSOP8,.19
Package Shape SQUARE
Package Style SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Packing Method TR
Peak Reflow Temperature (Cel) 260
Power NO
Programmable Power NO
Qualification Status Not Qualified
Seated Height-Max 1.1 mm
Slew Rate-Nom 0.16 V/us
Supply Current-Max 0.05 mA
Supply Voltage Limit-Max 7 V
Supply Voltage-Nom (Vsup) 5 V
Surface Mount YES
Technology CMOS
Temperature Grade AUTOMOTIVE
Terminal Finish NICKEL PALLADIUM GOLD SILVER
Terminal Form GULL WING
Terminal Pitch 0.65 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Unity Gain BW-Nom 350
Voltage Gain-Min 200000
Wideband NO
Width 3 mm

Alternate Parts for OPA2333AIDGKR

This table gives cross-reference parts and alternative options found for OPA2333AIDGKR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of OPA2333AIDGKR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
OPA2333AIDGKT Texas Instruments $2.4299 1.8-V, 17-µA, two-channel, micropower zero-drift CMOS operational amplifier 8-VSSOP -40 to 125 OPA2333AIDGKR vs OPA2333AIDGKT
OPA2333AQDGKRQ1 Texas Instruments $2.4556 Automotive, 1.8-V, 17-µA, two-channel, micropower zero-drift CMOS operational amplifier 8-VSSOP OPA2333AIDGKR vs OPA2333AQDGKRQ1
OPA2333AIDGKRG4 Texas Instruments Check for Price 1.8-V, 17-µA, two-channel, micropower zero-drift CMOS operational amplifier 8-VSSOP -40 to 125 OPA2333AIDGKR vs OPA2333AIDGKRG4
OPA2333AIDRBT Texas Instruments $2.4299 1.8-V, 17-µA, two-channel, micropower zero-drift CMOS operational amplifier 8-SON -40 to 125 OPA2333AIDGKR vs OPA2333AIDRBT
OPA2333AIDGKTG4 Texas Instruments $2.5527 1.8-V, 17-µA, two-channel, micropower zero-drift CMOS operational amplifier 8-VSSOP -40 to 125 OPA2333AIDGKR vs OPA2333AIDGKTG4
OPA2333AIDR Texas Instruments $2.0790 1.8-V, 17-µA, two-channel, micropower zero-drift CMOS operational amplifier 8-SOIC -40 to 125 OPA2333AIDGKR vs OPA2333AIDR
OPA2333AIDG4 Texas Instruments Check for Price 1.8-V, 17-µA, two-channel, micropower zero-drift CMOS operational amplifier 8-SOIC -40 to 125 OPA2333AIDGKR vs OPA2333AIDG4
OPA2333AID Texas Instruments $2.4707 1.8-V, 17-µA, two-channel, micropower zero-drift CMOS operational amplifier 8-SOIC -40 to 125 OPA2333AIDGKR vs OPA2333AID
OPA2333AIDRBR Texas Instruments $2.0790 1.8-V, 17-µA, two-channel, micropower zero-drift CMOS operational amplifier 8-SON -40 to 125 OPA2333AIDGKR vs OPA2333AIDRBR
OPA2333AIDRBTG4 Texas Instruments Check for Price 1.8-V, 17-µA, two-channel, micropower zero-drift CMOS operational amplifier 8-SON -40 to 125 OPA2333AIDGKR vs OPA2333AIDRBTG4
