Diodes / Transient Suppressors / P6KE16A-E3/54
Datasheets
P6KE16A-E3/54 by:

Trans Voltage Suppressor Diode, 600W, 13.6V V(RWM), Unidirectional, 1 Element, Silicon, DO-204AC,

Part Details for P6KE16A-E3/54 by Vishay Intertechnologies

Results Overview of P6KE16A-E3/54 by Vishay Intertechnologies

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

P6KE16A-E3/54 Information

P6KE16A-E3/54 by Vishay Intertechnologies is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.

A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.

Price & Stock for P6KE16A-E3/54

Part # Distributor Description Stock Price Buy
DISTI # 05R5627
Newark Tvs Diode, 600W, 16V, Do-204Ac, Product Range:Transzorb P6Ke Series, Tvs Polarity:Unidirectional, Reverse Standoff Voltage:13.6V, Clamping Voltage Max:22.5V, Diode Case Style:Do-204Ac, No. Of Pins:2Pins, Diode Mounting:Through Hole Rohs Compliant: Yes |Vishay P6KE16A-E3/54 RoHS: Compliant Min Qty: 4000 Package Multiple: 1 Date Code: 0 Container: Cut Tape 0
  • 50 $0.2500
$0.2500 Buy Now
DISTI # P6KE16A-E3/54
Avnet Americas Diode TVS Single Uni-Dir 13.6V 600W 2-Pin DO-15 T/R - Tape and Reel (Alt: P6KE16A-E3/54) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 7 Weeks, 0 Days Container: Reel 0
  • 4,000 $0.1052
  • 8,000 $0.1032
  • 16,000 $0.1020
  • 24,000 $0.1001
  • 32,000 $0.0972
$0.0972 / $0.1052 Buy Now
Future Electronics 600 W 16 V Uni-Directional Through Hole Transient Voltage Suppressor Diode Min Qty: 4000 Package Multiple: 4000 4000
null
  • 4,000 $0.1050
  • 8,000 $0.1030
  • 12,000 $0.1020
  • 16,000 $0.1010
  • 20,000 $0.0988
$0.0988 / $0.1050 Buy Now
DISTI # P6KE16A-E3/54
Chip One Stop Semiconductors RoHS: Compliant pbFree: Yes Min Qty: 5 Lead time: 0 Weeks, 1 Days Container: Cut Tape 3875
  • 5 $0.1680
  • 50 $0.1350
$0.1350 / $0.1680 Buy Now
DISTI # P6KE16A-E3/54
EBV Elektronik Diode TVS Single UniDir 136V 600W 2Pin DO15 TR (Alt: P6KE16A-E3/54) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 8 Weeks, 0 Days EBV - 0
Buy Now

Part Details for P6KE16A-E3/54

P6KE16A-E3/54 CAD Models

  • Part Symbol

    Part Symbol

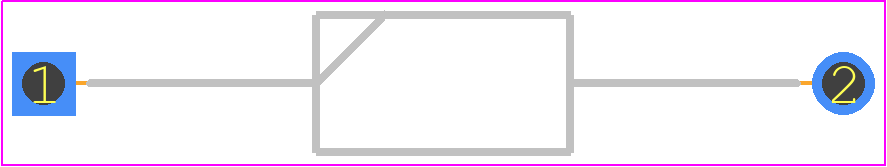

  • Footprint

    footprint

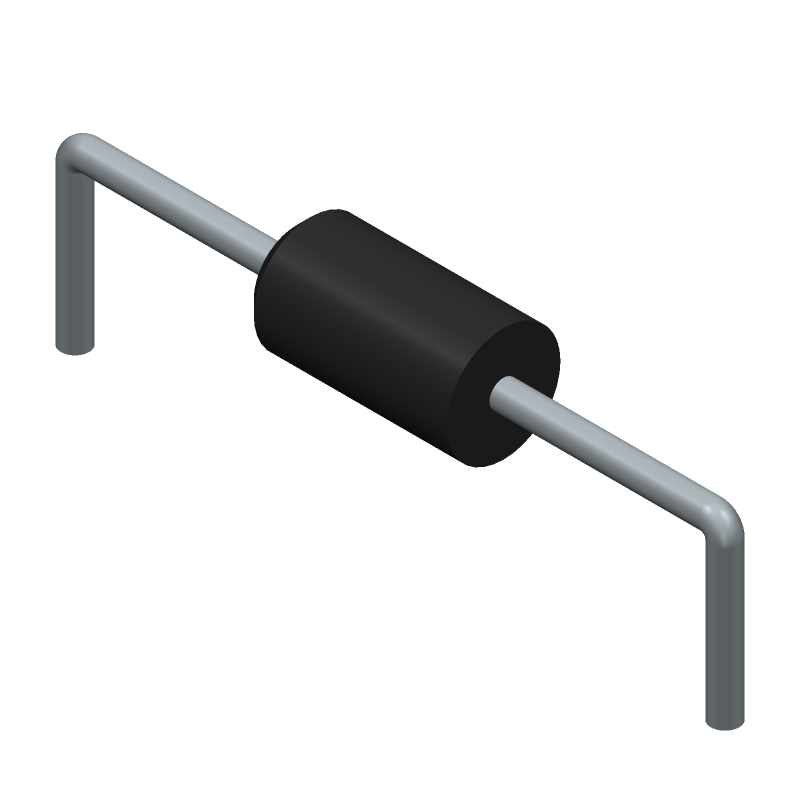

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

P6KE16A-E3/54 Part Data Attributes

Parametric Data
P6KE16A-E3/54 Vishay Intertechnologies
Buy Now Datasheet
Compare Parts:
P6KE16A-E3/54 Vishay Intertechnologies Trans Voltage Suppressor Diode, 600W, 13.6V V(RWM), Unidirectional, 1 Element, Silicon, DO-204AC,
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer VISHAY INTERTECHNOLOGY INC
Reach Compliance Code compliant
Factory Lead Time 7 Weeks
Samacsys Manufacturer Vishay
Additional Feature EXCELLENT CLAMPING CAPABILITY
Breakdown Voltage-Max 16.8 V
Breakdown Voltage-Min 15.2 V
Breakdown Voltage-Nom 16 V
Case Connection ISOLATED
Clamping Voltage-Max 22.5 V
Configuration SINGLE
Diode Element Material SILICON
Diode Type TRANS VOLTAGE SUPPRESSOR DIODE
JEDEC-95 Code DO-204AC
JESD-30 Code O-PALF-W2
JESD-609 Code e3
Non-rep Peak Rev Power Dis-Max 600 W
Number of Elements 1
Number of Terminals 2
Operating Temperature-Max 175 °C
Operating Temperature-Min -55 °C
Package Body Material PLASTIC/EPOXY
Package Shape ROUND
Package Style LONG FORM
Polarity UNIDIRECTIONAL
Power Dissipation-Max 5 W
Qualification Status Not Qualified
Reference Standard UL RECOGNIZED
Rep Pk Reverse Voltage-Max 13.6 V
Surface Mount NO
Technology AVALANCHE
Terminal Finish MATTE TIN
Terminal Form WIRE
Terminal Position AXIAL

Alternate Parts for P6KE16A-E3/54

This table gives cross-reference parts and alternative options found for P6KE16A-E3/54. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of P6KE16A-E3/54, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
P6KE16AG-Z15-R Unisonic Technologies Co Ltd Check for Price Trans Voltage Suppressor Diode, 600W, 13.6V V(RWM), Unidirectional, 1 Element, Silicon, DO-15, P6KE16A-E3/54 vs P6KE16AG-Z15-R
P6KE16AHE3/54 Vishay Semiconductors Check for Price DIODE 600 W, UNIDIRECTIONAL, SILICON, TVS DIODE, DO-204AC, ROHS COMPLIANT, PLASTIC, DO-15, 2 PIN, Transient Suppressor P6KE16A-E3/54 vs P6KE16AHE3/54
P6KE16A Motorola Semiconductor Products Check for Price Trans Voltage Suppressor Diode, 600W, 13.6V V(RWM), Unidirectional, 1 Element, Silicon P6KE16A-E3/54 vs P6KE16A
P6KE16A-E3/54 Vishay Semiconductors Check for Price DIODE 600 W, UNIDIRECTIONAL, SILICON, TVS DIODE, DO-204AC, ROHS COMPLIANT, PLASTIC, DO-15, 2 PIN, Transient Suppressor P6KE16A-E3/54 vs P6KE16A-E3/54
P6KE16A MERITEK Electronics Corporation Check for Price Trans Voltage Suppressor Diode, 600W, 13.6V V(RWM), Unidirectional, 1 Element, Silicon, DO-204AC, DO-15, 2 PIN P6KE16A-E3/54 vs P6KE16A
P6KE16AA0 Taiwan Semiconductor Check for Price Trans Voltage Suppressor Diode, 600W, 13.6V V(RWM), Unidirectional, 1 Element, Silicon, DO-204AC, DO-15, 2 PIN P6KE16A-E3/54 vs P6KE16AA0
P6KE16ARL STMicroelectronics Check for Price 600W, UNIDIRECTIONAL, SILICON, TVS DIODE, PLASTIC, CB417, 2 PIN P6KE16A-E3/54 vs P6KE16ARL
P6KE16A-TB Won-Top Electronics Co Ltd Check for Price Trans Voltage Suppressor Diode, 600W, 13.6V V(RWM), Unidirectional, 1 Element, Silicon, DO-15, PLASTIC PACKAGE-2 P6KE16A-E3/54 vs P6KE16A-TB
P6KE16A-13 Diodes Incorporated Check for Price Trans Voltage Suppressor Diode, 600W, 13.6V V(RWM), Unidirectional, 1 Element, Silicon, DO-15 P6KE16A-E3/54 vs P6KE16A-13
P6KE16A-TP-HF Micro Commercial Components Check for Price Trans Voltage Suppressor Diode, 600W, 13.6V V(RWM), Unidirectional, 1 Element, Silicon, DO-15, P6KE16A-E3/54 vs P6KE16A-TP-HF
Part Number Manufacturer Composite Price Description Compare
P6KE16 Microsemi Corporation Check for Price Trans Voltage Suppressor Diode, 600W, 12.9V V(RWM), Unidirectional, 1 Element, Silicon, PLASTIC, T-18, 2 PIN P6KE16A-E3/54 vs P6KE16
P6KE16A Fairchild Semiconductor Corporation Check for Price Trans Voltage Suppressor Diode, 600W, 13.6V V(RWM), Unidirectional, 1 Element, Silicon, DO-15, DO-15, 2 PIN P6KE16A-E3/54 vs P6KE16A
P6KE16-T/R Frontier Electronics Co Ltd Check for Price Trans Voltage Suppressor Diode, 12.9V V(RWM), Unidirectional, 1 Element, Silicon P6KE16A-E3/54 vs P6KE16-T/R
P6KE16 Fagor Electrónica Check for Price Trans Voltage Suppressor Diode, 600W, 12.9V V(RWM), Unidirectional, 1 Element, Silicon, DO-15, PLASTIC PACKAGE-2 P6KE16A-E3/54 vs P6KE16
P6KE16AA0G Taiwan Semiconductor Check for Price Trans Voltage Suppressor Diode, 600W, 13.6V V(RWM), Unidirectional, 1 Element, Silicon, DO-204AC, DO-15, 2 PIN P6KE16A-E3/54 vs P6KE16AA0G
P6KE16B0 Taiwan Semiconductor Check for Price Trans Voltage Suppressor Diode, 600W, 12.9V V(RWM), Unidirectional, 1 Element, Silicon, DO-204AC, DO-15, 2 PIN P6KE16A-E3/54 vs P6KE16B0
P6KE16A-TP Micro Commercial Components Check for Price Trans Voltage Suppressor Diode, 600W, 13.6V V(RWM), Unidirectional, 1 Element, Silicon, DO-15, ROHS COMPLIANT, PLASTIC PACKAGE-2 P6KE16A-E3/54 vs P6KE16A-TP
P6KE16A Sensitron Semiconductors Check for Price Trans Voltage Suppressor Diode, 600W, 13.6V V(RWM), Unidirectional, 1 Element, Silicon, DO-15, PLASTIC PACKAGE-2 P6KE16A-E3/54 vs P6KE16A
P6KE16 Lite-On Semiconductor Corporation Check for Price Trans Voltage Suppressor Diode, 600W, 12.9V V(RWM), Unidirectional, 1 Element, Silicon, DO-15, DO-15, PLASTIC, 2 PIN P6KE16A-E3/54 vs P6KE16
P6KE16 PanJit Semiconductor Check for Price Trans Voltage Suppressor Diode, 600W, 12.9V V(RWM), Unidirectional, 1 Element, Silicon, DO-15, ROHS COMPLIANT, PLASTIC PACKAGE-2 P6KE16A-E3/54 vs P6KE16

P6KE16A-E3/54 Frequently Asked Questions (FAQ)

  • The recommended footprint and land pattern for the P6KE16A-E3/54 can be found in the Vishay Intertechnologies' application note AN483, which provides guidelines for surface mount assembly of diodes and rectifiers.

  • The P6KE16A-E3/54 is an electrostatic discharge (ESD) sensitive device. Handling should be done with proper ESD protection equipment, such as wrist straps, mats, and ionizers, to prevent damage to the device.

  • The maximum allowable voltage derating for the P6KE16A-E3/54 is typically 10% to 15% below the maximum rated voltage to ensure reliable operation and prevent overheating.

  • Yes, the P6KE16A-E3/54 is suitable for high-reliability applications, such as aerospace or automotive, due to its high-quality construction and rigorous testing. However, additional testing and qualification may be required for specific applications.

  • The correct orientation of the P6KE16A-E3/54 on the PCB can be determined by referring to the datasheet and the device's marking, which indicates the cathode (negative) terminal.
