PCA9955BTWJ
NXP Semiconductors
Description: PCA9955B - 16-channel Fm+ I²C-bus 57 mA/20 V constant current LED driver TSSOP2 28-Pin

Overview of PCA9955BTWJ by NXP Semiconductors

Note: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Where used in Applications: Industrial Automation

Price & Stock for PCA9955BTWJ by NXP Semiconductors

Part # Manufacturer Description Stock Price Buy
DISTI # 49Y8499
Newark I2C 20 V Constant Current Led Controller/ Reel Rohs Compliant: Yes |Nxp PCA9955BTWJ Min Qty: 2500 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 1 $1.5700
  • 3,000 $1.5000
  • 6,000 $1.4000
  • 12,000 $1.3000
  • 18,000 $1.2500
  • 30,000 $1.2300
$1.2300 / $1.5700 Buy Now
DISTI # 18AC0102
Newark Led Driver, Constant Current, Htssop-28, Topology:Constant Current, Led Driver Type:-, Input Voltage Min:3V, Input Voltage Max:5.5V, Output Voltage Max:20V, Output Current Max:57Ma, Switching Frequency Typ:-, Ic Case/Package:Htssoprohs Compliant: Yes |Nxp PCA9955BTWJ Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape 0
  • 1 $2.8900
  • 10 $2.4900
  • 25 $2.3900
  • 50 $2.2900
  • 100 $2.1900
  • 250 $2.0900
  • 500 $1.9100
$1.9100 / $2.8900 Buy Now
DISTI # PCA9955BTWJ
Avnet Americas LED DRVR Boost 16-CH Individual RGB PWM 20V 0.03A 28-Pin HTSSOP T/R - Tape and Reel (Alt: PCA9955BTWJ) Min Qty: 2500 Package Multiple: 2500 Lead time: 16 Weeks, 0 Days Container: Reel 0
  • 2,500 $1.4000
  • 5,000 $1.3700
  • 10,000 $1.3400
  • 15,000 $1.3100
  • 20,000 $1.2800
  • 25,000 $1.2500
  • 250,000 $1.2200
$1.2200 / $1.4000 Buy Now
DISTI # PCA9955BTWJ
Avnet Silica LED DRVR Boost 16-CH Individual RGB PWM 20V 0.03A 28-Pin HTSSOP T/R (Alt: PCA9955BTWJ) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 17 Weeks, 0 Days Silica - 0
Buy Now
DISTI # C1S537102126681
Chip1Stop 16 Ch. constant-current LED driver RoHS: Compliant Container: Cut Tape 1295
  • 1 $2.1400
  • 10 $1.8200
  • 50 $1.8100
  • 100 $1.5700
  • 200 $1.5600
  • 500 $1.4000
$1.4000 / $2.1400 Buy Now
DISTI # PCA9955BTWJ
EBV Elektronik LED DRVR Boost 16-CH Individual RGB PWM 20V 0.03A 28-Pin HTSSOP T/R (Alt: PCA9955BTWJ) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 17 Weeks, 0 Days EBV - 0
Buy Now
Flip Electronics Stock 2388
RFQ
LCSC HTSSOP-28-EP LED Drivers ROHS 25
  • 1 $3.1029
  • 10 $2.7048
  • 30 $2.4688
  • 100 $2.2296
  • 500 $2.1195
  • 1,000 $2.0707
$2.0707 / $3.1029 Buy Now

CAD Models for PCA9955BTWJ by NXP Semiconductors
You need to Sign In or Sign Up to download CAD models.

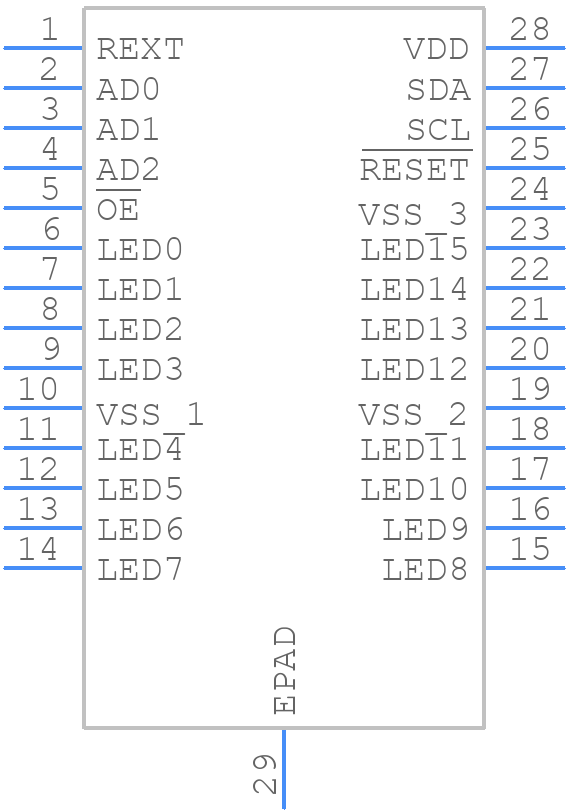

  • Part Symbol
    Part Symbol

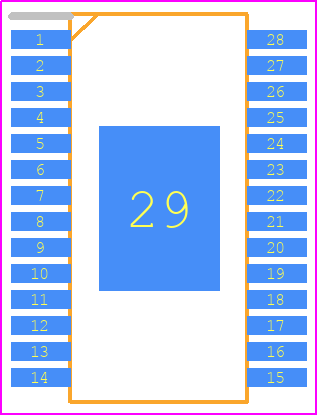

  • Footprint
    footprint
  • 3D Model
    3D Model
25 Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

Part Data Attributes for PCA9955BTWJ by NXP Semiconductors
Parametric Data

PCA9955BTWJ
NXP Semiconductors
Buy Now
-
-
Rohs Code
Yes
Part Life Cycle Code
Active
Ihs Manufacturer
NXP SEMICONDUCTORS
Part Package Code
TSSOP2
Pin Count
28
Manufacturer Package Code
SOT1172-3
Reach Compliance Code
compliant
Factory Lead Time
16 Weeks
Samacsys Manufacturer
NXP
Interface IC Type
LED DISPLAY DRIVER
JESD-30 Code
R-PDSO-G28
JESD-609 Code
e4
Moisture Sensitivity Level
1
Number of Terminals
28
Operating Temperature-Max
85 °C
Operating Temperature-Min
-20 °C
Package Body Material
PLASTIC/EPOXY
Package Code
TSSOP
Package Equivalence Code
TSSOP28,.25
Package Shape
RECTANGULAR
Package Style
SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel)
260
Qualification Status
Not Qualified
Surface Mount
YES
Temperature Grade
OTHER
Terminal Finish
Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)
Terminal Form
GULL WING
Terminal Pitch
0.635 mm
Terminal Position
DUAL
Time@Peak Reflow Temperature-Max (s)
30
