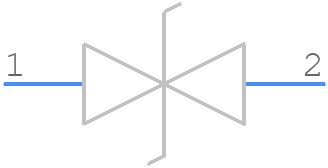

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for PESD5V0L1BA,115 by Nexperia
Results Overview of PESD5V0L1BA,115 by Nexperia
- Distributor Offerings: (12 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (6 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Telecommunications
PESD5V0L1BA,115 Information
PESD5V0L1BA,115 by Nexperia is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for PESD5V0L1BA,115
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
38K6658
|
Newark | Esd Protection Device, 5V, Sod-323, Clamping Voltage Vc Max:33V, Diode Case Style:Sod-323, No. Of Pins:2Pins, Operating Voltage:5V, Power Dissipation Pd:500W, Product Range:Pesdxl1Ba Series, Automotive Qualification Standard:- Rohs Compliant: Yes |Nexperia PESD5V0L1BA,115 RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 8250 |
|
$0.0960 / $0.3100 | Buy Now |
|
DISTI #
28AC0623
|
Newark | Pesd5V0L1Ba/Sod323/Sod2 Rohs Compliant: Yes |Nexperia PESD5V0L1BA,115 RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
Buy Now | |
|
DISTI #
PESD5V0L1BA,115
|
Avnet Americas | ESD Protection Device, 33 V, SOD-323, 2 Pins, 5 V, 75 pF - Tape and Reel (Alt: PESD5V0L1BA,115) RoHS: Compliant Min Qty: 21000 Package Multiple: 3000 Lead time: 12 Weeks, 0 Days Container: Reel | 0 |
|
$0.0321 / $0.0327 | Buy Now |
|
|
Bristol Electronics | 2376 |
|
RFQ | ||
|
|
Bristol Electronics | Min Qty: 17 | 1200 |
|
$0.0900 / $0.3000 | Buy Now |
|
|
Rochester Electronics | PESD5V0L1BA - Trans Voltage Suppressor Diode, 500W, 5V, Bidirectional RoHS: Compliant Status: Active Min Qty: 1 | 817445 |
|
$0.0280 / $0.0452 | Buy Now |
|
DISTI #
PESD5V0L1BA.115
|
TME | Diode: TVS, 500W, 7.6V, 15A, bidirectional, SOD323, ESD Min Qty: 1 | 6359 |
|
$0.0585 / $0.3406 | Buy Now |
|
|
Chip 1 Exchange | INSTOCK | 9000 |
|
RFQ | |
|
DISTI #
PESD5V0L1BA,115
|
Avnet Asia | ESD Protection Device, 33 V, SOD-323, 2 Pins, 5 V, 75 pF (Alt: PESD5V0L1BA,115) RoHS: Compliant Min Qty: 21000 Package Multiple: 3000 Lead time: 16 Weeks, 0 Days | 0 |
|
$0.0690 / $0.0765 | Buy Now |
|
DISTI #
PESD5V0L1BA,115
|
Avnet Silica | ESD Protection Device 33 V SOD323 2 Pins 5 V 75 pF (Alt: PESD5V0L1BA,115) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 14 Weeks, 0 Days | Silica - 153000 |
|
Buy Now |
Part Details for PESD5V0L1BA,115
PESD5V0L1BA,115 CAD Models
PESD5V0L1BA,115 Part Data Attributes
|
|
PESD5V0L1BA,115
Nexperia
Buy Now
Datasheet
|
Compare Parts:
PESD5V0L1BA,115
Nexperia
PESD5V0L1BA - Low capacitance bidirectional ESD protection diode in SOD323@en-us SOD 2-Pin
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Not Recommended | |
| Ihs Manufacturer | NEXPERIA | |
| Part Package Code | SOD | |
| Package Description | SC-76, SOD-323, 2 PIN | |
| Pin Count | 2 | |
| Manufacturer Package Code | SOD323 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Factory Lead Time | 12 Weeks | |
| Date Of Intro | 2017-02-01 | |
| Samacsys Manufacturer | Nexperia | |
| Additional Feature | LOW CAPACITANCE | |
| Breakdown Voltage-Max | 8.2 V | |
| Breakdown Voltage-Min | 7 V | |
| Breakdown Voltage-Nom | 7.6 V | |
| Clamping Voltage-Max | 33 V | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE | |
| JESD-30 Code | R-PDSO-G2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Peak Rev Power Dis-Max | 500 W | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -65 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity | BIDIRECTIONAL | |
| Reference Standard | IEC-60134; IEC-61000-4-2, 4-5 | |
| Rep Pk Reverse Voltage-Max | 5 V | |
| Reverse Current-Max | 1 µA | |
| Reverse Test Voltage | 5 V | |
| Surface Mount | YES | |
| Technology | AVALANCHE | |
| Terminal Finish | TIN | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
