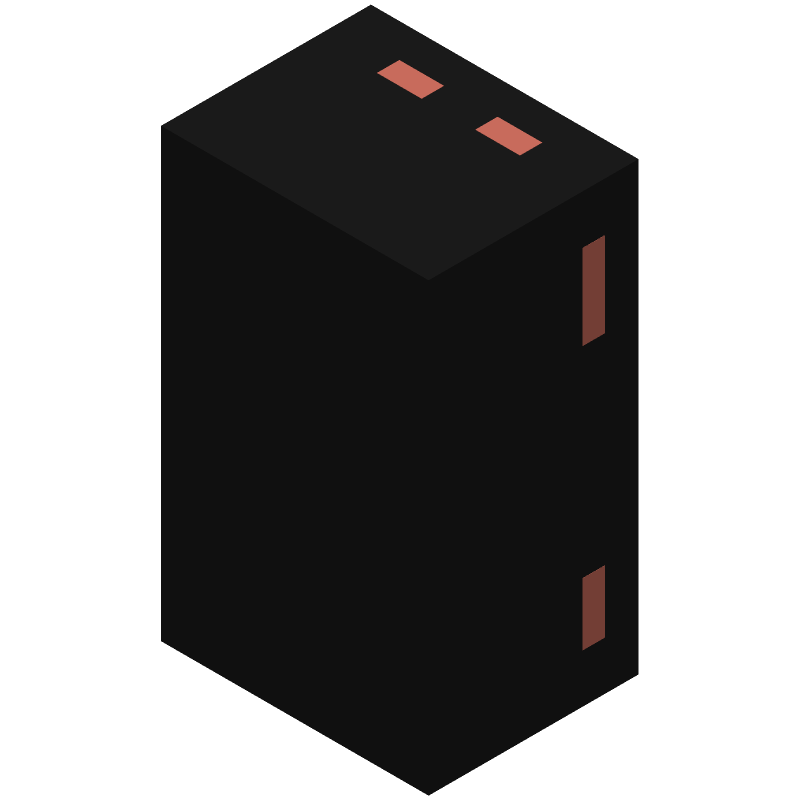

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for PESD5V0S1BL,315 by Nexperia
Results Overview of PESD5V0S1BL,315 by Nexperia
- Distributor Offerings: (10 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Internet of Things (IoT)
Environmental Monitoring
Financial Technology (Fintech)
Smart Cities
Transportation and Logistics
Agriculture Technology
Telecommunications
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Education and Research
Consumer Electronics
Security and Surveillance
Audio and Video Systems
Computing and Data Storage
Healthcare
Entertainment and Gaming
PESD5V0S1BL,315 Information
PESD5V0S1BL,315 by Nexperia is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for PESD5V0S1BL,315
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
34R4494
|
Newark | Esd Protection Device, 14V, Sod-882, Clamping Voltage Vc Max:14V, Diode Case Style:Sod-882, No. Of Pins:2Pins, Operating Voltage:-, Power Dissipation Pd:130W, Product Range:-, Automotive Qualification Standard:- Rohs Compliant: Yes |Nexperia PESD5V0S1BL,315 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 2765 |
|
$0.0060 | Buy Now |
|
DISTI #
PESD5V0S1BL,315
|
Avnet Americas | ESD Suppressor TVS 30KV 2-Pin SOD-882 T/R - Tape and Reel (Alt: PESD5V0S1BL,315) RoHS: Compliant Min Qty: 30000 Package Multiple: 10000 Lead time: 8 Weeks, 0 Days Container: Reel | 0 |
|
$0.0233 / $0.0255 | Buy Now |
|
|
Rochester Electronics | PESD5V0S1BL - Trans Voltage Suppressor Diode, 130W, 5V, Bidirectional, SOD2 RoHS: Compliant Status: Active Min Qty: 1 | 3472486 |
|
$0.0234 / $0.0275 | Buy Now |
|
DISTI #
PESD5V0S1BL.315
|
TME | Diode: TVS, 130W, 5.5÷9.5V, bidirectional, DFN1006-2,SOD882, ESD Min Qty: 1 | 8880 |
|
$0.0203 / $0.0895 | Buy Now |
|
DISTI #
PESD5V0S1BL,315
|
Avnet Asia | ESD Suppressor TVS 30KV 2-Pin SOD-882 T/R (Alt: PESD5V0S1BL,315) RoHS: Compliant Min Qty: 60000 Package Multiple: 10000 Lead time: 8 Weeks, 0 Days | 0 |
|
$0.0985 / $0.2391 | Buy Now |
|
DISTI #
PESD5V0S1BL,315
|
Avnet Silica | ESD Suppressor TVS 30KV 2Pin SOD882 TR (Alt: PESD5V0S1BL,315) RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 10 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
PESD5V0S1BL,315
|
Chip One Stop | Semiconductors RoHS: Compliant pbFree: Yes Min Qty: 25 Lead time: 0 Weeks, 1 Days Container: Cut Tape | 28 |
|
$0.0432 / $0.0950 | Buy Now |
|
|
Chip Stock | 28141 |
|
RFQ | ||
|
DISTI #
PESD5V0S1BL,315
|
EBV Elektronik | ESD Suppressor TVS 30KV 2Pin SOD882 TR (Alt: PESD5V0S1BL,315) RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 10 Weeks, 0 Days | EBV - 10000 |
|
Buy Now | |
|
|
New Advantage Corporation | PESD Series 45 pF Bi-Directional ESD Protection Diode - SOD-882 RoHS: Compliant Min Qty: 1 Package Multiple: 10000 | 6390000 |
|
$0.0159 / $0.0170 | Buy Now |
Part Details for PESD5V0S1BL,315
PESD5V0S1BL,315 CAD Models
PESD5V0S1BL,315 Part Data Attributes
|
|
PESD5V0S1BL,315
Nexperia
Buy Now
Datasheet
|
Compare Parts:
PESD5V0S1BL,315
Nexperia
PESD5V0S1BL - Bidirectional ESD protection diode@en-us DFN 2-Pin
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | NEXPERIA | |
| Part Package Code | DFN | |
| Package Description | 1 X 0.60 MM, 0.50 MM HEIGHT, ULTRA SMALL, LEADLESS, PLASTIC PACKAGE-2 | |
| Pin Count | 2 | |
| Manufacturer Package Code | SOD882 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Factory Lead Time | 8 Weeks | |
| Date Of Intro | 2017-02-01 | |
| Samacsys Manufacturer | Nexperia | |
| Additional Feature | LOW CAPACITANCE | |
| Breakdown Voltage-Max | 9.5 V | |
| Breakdown Voltage-Min | 5.5 V | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE | |
| JESD-30 Code | R-PBCC-N2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Peak Rev Power Dis-Max | 130 W | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | CHIP CARRIER | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity | BIDIRECTIONAL | |
| Reference Standard | IEC-60134; IEC-61000-4-5 | |
| Rep Pk Reverse Voltage-Max | 5 V | |
| Surface Mount | YES | |
| Technology | AVALANCHE | |
| Terminal Finish | TIN | |
| Terminal Form | NO LEAD | |
| Terminal Position | BOTTOM | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
