PMV45EN2R Information
PMV45EN2R by Nexperia is a Small Signal Field-Effect Transistor.
Small Signal Field-Effect Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for PMV45EN2R
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
44AC2810
|
Newark | Mosfet, N-Ch, 10V, 5.1A, Sot-323, Channel Type:N Channel, Drain Source Voltage Vds:30V, Continuous Drain Current Id:5.1A, Transistor Mounting:Surface Mount, Rds(On) Test Voltage:10V, Gate Source Threshold Voltage Max:1.5V Rohs Compliant: Yes |Nexperia PMV45EN2R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 1489 |
|
$0.1660 / $0.4330 | Buy Now |
|
DISTI #
23AC9005
|
Newark | Pmv45En2/Sot23/To-236Ab Rohs Compliant: Yes |Nexperia PMV45EN2R RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.1130 / $0.1290 | Buy Now |
|
DISTI #
86AK5982
|
Newark | Mosfet, N-Ch, 30V, 5.1A, Sot-23 Rohs Compliant: Yes |Nexperia PMV45EN2R RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 1 Container: Reel | 0 |
|
$0.1250 | Buy Now |
|
DISTI #
PMV45EN2R
|
Avnet Americas | Power MOSFET, N Channel, 30 V, 5.1 A, 0.035 ohm, SOT-23, Surface Mount - Tape and Reel (Alt: PMV45EN2R) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 8 Weeks, 0 Days Container: Reel | 9000 |
|
$0.0555 / $0.0566 | Buy Now |
|
|
Rochester Electronics | PMV45EN2R - Small Signal Field-Effect Transistor, 4.1A, 30V, N-Channel MOSFET, TO-236AB RoHS: Compliant Status: Active Min Qty: 1 | 98480 |
|
$0.0572 / $0.0923 | Buy Now |
|
|
Future Electronics | PMV45EN2R Series 30 V 5000 mW 6.3 nC SMT N-Channel TrenchMOS FET - SOT-23 Min Qty: 3000 Package Multiple: 3000 |
201000 null |
|
$0.0544 / $0.0587 | Buy Now |
|
|
Future Electronics | PMV45EN2R Series 30 V 5000 mW 6.3 nC SMT N-Channel TrenchMOS FET - SOT-23 Min Qty: 3000 Package Multiple: 3000 |
522000 null |
|
$0.0544 / $0.0587 | Buy Now |
|
DISTI #
PMV45EN2R
|
TME | Transistor: N-MOSFET, unipolar, 30V, 2.6A, 1115mW, SOT23,TO236AB Min Qty: 1 | 4712 |
|
$0.0760 / $0.3610 | Buy Now |
|
DISTI #
PMV45EN2R
|
Avnet Asia | Power MOSFET, N Channel, 30 V, 5.1 A, 0.035 ohm, SOT-23, Surface Mount (Alt: PMV45EN2R) RoHS: Compliant Min Qty: 12000 Package Multiple: 3000 Lead time: 12 Weeks, 0 Days | 0 |
|
$0.0742 / $0.0830 | Buy Now |
|
DISTI #
PMV45EN2R
|
Avnet Silica | Power MOSFET N Channel 30 V 51 A 0035 ohm SOT23 Surface Mount (Alt: PMV45EN2R) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 10 Weeks, 0 Days | Silica - 453000 |
|
Buy Now |
Part Details for PMV45EN2R

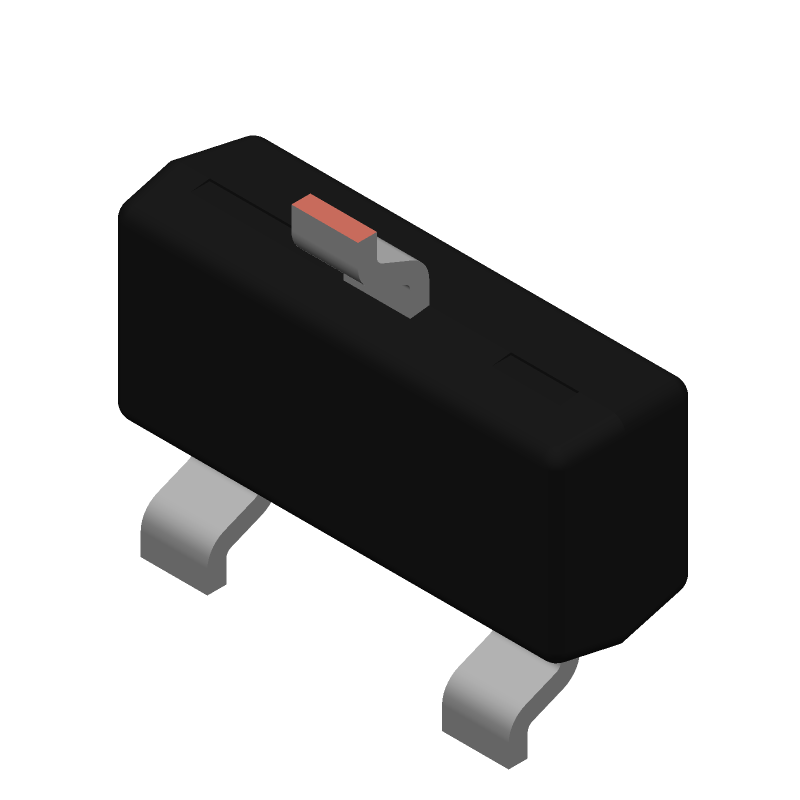

PMV45EN2R CAD Models
PMV45EN2R Part Data Attributes
|
|
PMV45EN2R
Nexperia
Buy Now
Datasheet
|
Compare Parts:
PMV45EN2R
Nexperia
PMV45EN2 - 30 V, N-channel Trench MOSFET@en-us TO-236 3-Pin
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | NEXPERIA | |
| Part Package Code | TO-236 | |
| Package Description | PLASTIC PACKAGE-3 | |
| Pin Count | 3 | |
| Manufacturer Package Code | SOT23 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 8 Weeks | |
| Samacsys Manufacturer | Nexperia | |
| Additional Feature | LOGIC LEVEL COMPATIBLE | |
| Configuration | SINGLE WITH BUILT-IN DIODE | |
| DS Breakdown Voltage-Min | 30 V | |
| Drain Current-Max (ID) | 4.1 A | |
| Drain-source On Resistance-Max | 0.042 Ω | |
| FET Technology | METAL-OXIDE SEMICONDUCTOR | |
| JEDEC-95 Code | TO-236AB | |
| JESD-30 Code | R-PDSO-G3 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 3 | |
| Operating Mode | ENHANCEMENT MODE | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity/Channel Type | N-CHANNEL | |
| Reference Standard | IEC-60134 | |
| Surface Mount | YES | |
| Terminal Finish | TIN | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Transistor Application | SWITCHING | |
| Transistor Element Material | SILICON |
