Part Details for QCN-12AD+
QCN-12AD+ CAD Models
QCN-12AD+ Part Data Attributes
|
|
QCN-12AD+
Mini-Circuits
Buy Now
Datasheet
|
Compare Parts:
QCN-12AD+
Mini-Circuits

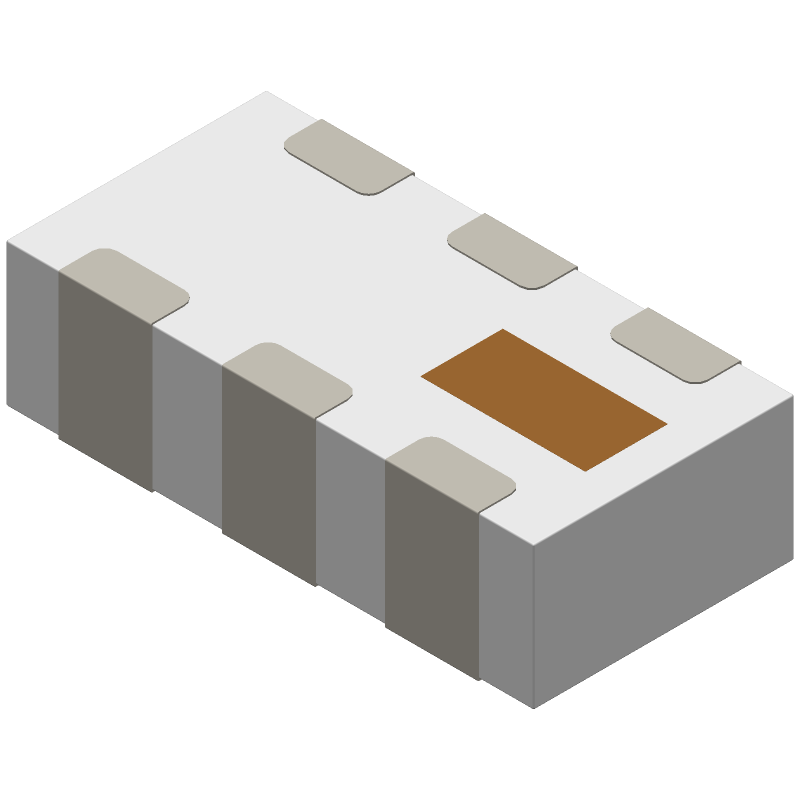

Combiner, 800MHz Min, 1250MHz Max, 0.7dB Insertion Loss-Max, 0.120 X 0.060 INCH, 0.035 INCH HEIGHT, ROHS COMPLIANT, ULTRA SMALL, CERAMIC, CASE FV1206-1, 6 PIN
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MINI-CIRCUITS | |
| Package Description | FV1206-1, 6 PIN | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | Mini-Circuits | |
| Additional Feature | ISOLATION-MIN (DB):13 | |
| Characteristic Impedance | 50 Ω | |
| Construction | COMPONENT | |
| Input Power-Max (CW) | 41.76 dBm | |
| Insertion Loss-Max | 0.7 dB | |
| Isolation-Min | 13 dB | |
| JESD-609 Code | e3 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 6 | |
| Operating Frequency-Max | 1250 MHz | |
| Operating Frequency-Min | 800 MHz | |
| Operating Temperature-Max | 100 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | CERAMIC | |
| Package Equivalence Code | SOLCC6,.06,40 | |
| RF/Microwave Device Type | COMBINER | |
| Surface Mount | YES | |
| Terminal Finish | Tin (Sn) - with Nickel (Ni) barrier | |
| VSWR-Max | 1.2 |
Alternate Parts for QCN-12AD+
This table gives cross-reference parts and alternative options found for QCN-12AD+. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of QCN-12AD+, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Description | Manufacturer | Compare |
|---|---|---|---|
| QCN-12AD | Combiner, 800MHz Min, 1250MHz Max, 0.7dB Insertion Loss-Max, 0.120 X 0.060 INCH, 0.035 INCH HEIGHT, ULTRA SMALL, CERAMIC, CASE FV1206-1, 6 PIN | Mini-Circuits | QCN-12AD+ vs QCN-12AD |
