QTH-030-01-L-D-A by: Samtec Inc

Board Stacking Connector, 60 Contact(s), 2 Row(s), Male, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle, ROHS COMPLIANT

Part Details for QTH-030-01-L-D-A by Samtec Inc

Results Overview of QTH-030-01-L-D-A by Samtec Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Security and Surveillance Internet of Things (IoT) Financial Technology (Fintech) Smart Cities Transportation and Logistics Automotive

QTH-030-01-L-D-A Information

QTH-030-01-L-D-A by Samtec Inc is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Available Datasheets

Part # Manufacturer Description Datasheet
DBL5W5P543A40LF Amphenol Communications Solutions D-Sub Power Board Mount Connectors, Input Output Connectors, Full Power 5W5 Pin Right Angle Solder 40A, Europe Standard, 500 Cycles, Front: Threaded Insert M3, Back: Without Accessory on PCB.
DEL2V2P543H40LF Amphenol Communications Solutions D-Sub Power Board Mount Connectors, Input Output Connectors, Full Power 2V2 Pin Right Angle Solder 40A, Europe Standard, 500 Cycles, Front: Threaded Insert M3, Back: Harpoons for 2.4mm PCB Thickness.
DC8W8P500H30LF Amphenol Communications Solutions D-Sub Power Board Mount Connectors, Input Output Connectors, Full Power 8W8 Pin Right Angle Solder 30A, Europe Standard, 200 Cycles, Front: Without Accessory, Back: Harpoons for 2.4mm PCB Thickness.

Price & Stock for QTH-030-01-L-D-A

Part # Distributor Description Stock Price Buy
DISTI # 53AJ8295
Newark Mezzanine Conn, Header, 60Pos, 0.5Mm, Mezzanine Connector Type:Header, Pitch Spacing:0.5Mm, No. Of Rows:2Rows, No. Of Contacts:60Contacts, Connector Mounting:Surface Mount, Contact Material:Phosphor Bronze, Product Range:Qth Series Rohs Compliant: Yes |Samtec QTH-030-01-L-D-A RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 54
  • 1 $5.1800
$5.1800 Buy Now
DISTI # QTH-030-01-L-D-A
Avnet Americas Mezzanine Connector, Ground Plane, Header, 0.5 mm, 2 Rows, 60 Contacts, Surface Mount - Trays (Alt: QTH-030-01-L-D-A) RoHS: Compliant Min Qty: 96 Package Multiple: 1 Lead time: 1 Weeks, 0 Days Container: Tray 54
5000 Factory Stock
  • 96 $4.1569
  • 100 $4.0927
  • 200 $4.0132
  • 480 $3.9368
  • 960 $3.6511
$3.6511 / $4.1569 Buy Now
DISTI # 65K8660
Avnet Americas Mezzanine Connector, Ground Plane, Header, 0.5 mm, 2 Rows, 60 Contacts, Surface Mount - Bulk (Alt: 65K8660) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Container: Bulk 0
RFQ
Bristol Electronics   86
RFQ
Powell Electronics 0.50 mm Q Pairs High-Speed Ground Plane Min Qty: 96 3300
  • 96 $5.0000
  • 288 $4.4700
  • 576 $4.3600
  • 1,056 $4.0400
  • 2,592 $3.7000
$3.7000 / $5.0000 Buy Now
DISTI # 000000000000750283
Sager Board to Board & Mezzanine Connectors 0.50 mm Q Strip High-Speed Ground Plane Terminal Strip Min Qty: 96 5000
  • 96 $5.0000
  • 288 $4.4700
  • 576 $4.3600
  • 1,056 $4.0400
  • 2,592 $3.7000
  • 5,088 $3.3600
$3.3600 / $5.0000 Buy Now
DISTI # QTH-030-01-L-D-A
Avnet Abacus Mezzanine Connector Ground Plane Header 05 mm 2 Rows 60 Contacts Surface Mount (Alt: QTH-030-01-L-D-A) RoHS: Compliant Min Qty: 96 Package Multiple: 96 Lead time: 3 Weeks, 0 Days Abacus - 96
Buy Now
DISTI # QTH-030-01-L-D-A
Avnet Abacus Mezzanine Connector Ground Plane Header 05 mm 2 Rows 60 Contacts Surface Mount (Alt: QTH-030-01-L-D-A) RoHS: Compliant Min Qty: 96 Package Multiple: 96 Lead time: 9 Weeks, 0 Days Abacus - 0
Buy Now
DISTI # QTH-030-01-L-D-A
Avnet Asia Mezzanine Connector, Ground Plane, Header, 0.5 mm, 2 Rows, 60 Contacts, Surface Mount (Alt: QTH-030-01-L-D-A) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks, 0 Days 0
RFQ
LCSC 0.5mm 2 60P Standing paste SMDP0.5mm Board-to-Board and Backplane Connector ROHS 44
  • 1 $6.9407
  • 10 $5.9463
  • 30 $5.3398
  • 96 $4.8319
$4.8319 / $6.9407 Buy Now
Vyrian Connectors 2571
RFQ
Win Source Electronics CONN HDR 60POS SMD GOLD / HIGH SPEED GROUND PLANE HEADER 12000
  • 10 $5.4577
  • 20 $5.1056
  • 31 $4.9296
  • 44 $4.5775
  • 57 $4.4014
  • 71 $4.2254
$4.2254 / $5.4577 Buy Now

Part Details for QTH-030-01-L-D-A

QTH-030-01-L-D-A CAD Models

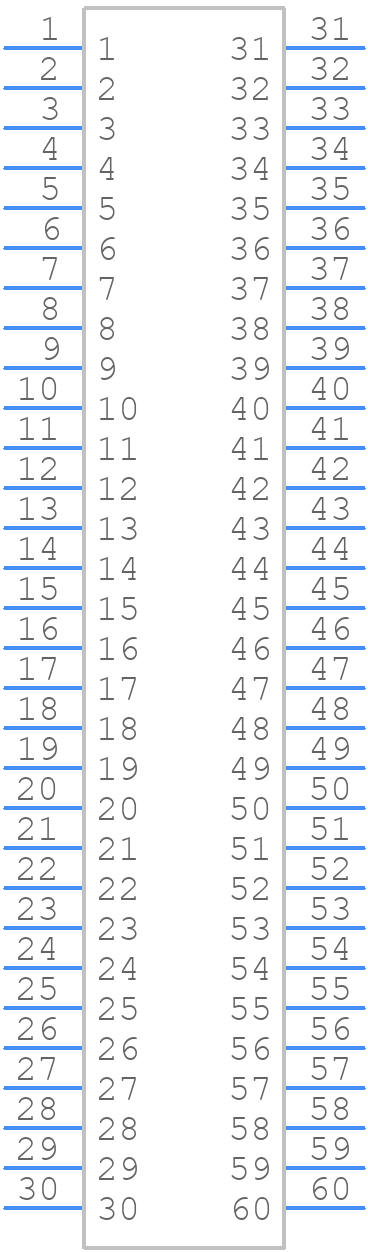

  • Part Symbol
