R05C1TF05S-R by: RECOM Power Inc

DC-DC Regulated Power Supply Module

Part Details for R05C1TF05S-R by RECOM Power Inc

Results Overview of R05C1TF05S-R by RECOM Power Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

R05C1TF05S-R Information

R05C1TF05S-R by RECOM Power Inc is a Power Supply Module.
Power Supply Modules are under the broader part category of Power Circuits.

A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.

Price & Stock for R05C1TF05S-R

Part # Distributor Description Stock Price Buy
DISTI # 97AK1665
Newark Dc-Dc Converter, 5V, 0.2A, Power Supply Applications:Ite, Industrial & Household, Dc/Dc Converter Type:Module, Input Ratio:-, Output Power Max:1W, No. Of Outputs:1 Output, Output Voltage - Output 1:5Vdc, Output Voltage - Output 2:-Rohs Compliant: Yes |Recom Power R05C1TF05S-R RoHS: Compliant Min Qty: 500 Package Multiple: 1 Date Code: 0 Container: Cut Tape 0
  • 500 $2.1500
  • 1,000 $2.0200
$2.0200 / $2.1500 Buy Now
DISTI # 97AK1666
Newark Dc-Dc Converter, 5V, 0.2A, Power Supply Applications:Ite, Industrial & Household, Dc/Dc Converter Type:Module, Input Ratio:-, Output Power Max:1W, No. Of Outputs:1 Output, Output Voltage - Output 1:5Vdc, Output Voltage - Output 2:-Rohs Compliant: Yes |Recom Power R05C1TF05S-R RoHS: Compliant Min Qty: 500 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 500 $2.1500
  • 1,000 $2.0200
$2.0200 / $2.1500 Buy Now
DISTI # 75075713
RS DC-DC Converter, 1W, Single Output, 3-5.5Vin, 5Vout, 12-LGA, Tape and Reel | RECOM Power Inc. R05C1TF05S-R RoHS: Compliant Min Qty: 3 Package Multiple: 500 Lead time: 6 Weeks, 0 Days Container: Reel 0
  • 3 $982.9900
  • 6 $967.1400
  • 9 $951.7900
$951.7900 / $982.9900 RFQ
DISTI # R05C1TF05S-R
TME Converter: DC/DC, Uin: 4.5÷5.5VDC, Uout: 5VDC, Iout: 200mA, LGA, PCB Min Qty: 500 0
  • 500 $1.6400
$1.6400 RFQ
DISTI # 000000000007211822
Sager 1W DC/DC-Converter 'ECONOLINE' SMD 3kV reg Min Qty: 500 0
  • 500 $1.5600
$1.5600 Buy Now
New Advantage Corporation   RoHS: Compliant Min Qty: 1 Package Multiple: 500 1000
  • 500 $2.1600
  • 1,000 $2.0100
$2.0100 / $2.1600 Buy Now

Part Details for R05C1TF05S-R

R05C1TF05S-R Part Data Attributes

Parametric Data
R05C1TF05S-R RECOM Power Inc
Buy Now Datasheet
Compare Parts:

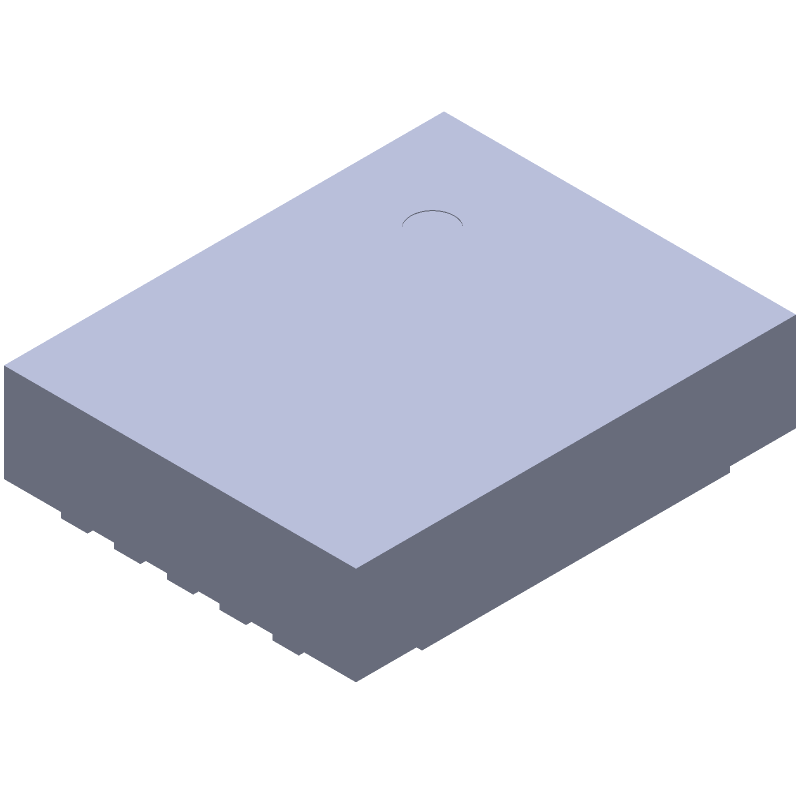

R05C1TF05S-R RECOM Power Inc DC-DC Regulated Power Supply Module
Part Life Cycle Code Active
Ihs Manufacturer RECOM POWER GMBH
Reach Compliance Code unknown
Samacsys Manufacturer RECOM Power
Analog IC - Other Type DC-DC REGULATED POWER SUPPLY MODULE
Efficiency (Main Output) 50.5%
Input Voltage-Max 5.5 V
Input Voltage-Min 4.5 V
Input Voltage-Nom 5 V
JESD-30 Code R-XBGA-N12
Length 5 mm
Line Regulation-Max 0.5%
Load Regulation-Max 0.4%
Number of Functions 1
Number of Outputs 1
Number of Terminals 12
Operating Temperature-Max 125 °C
Operating Temperature-Min -40 °C
Output Current-Max 0.2 A
Output Voltage-Max 5.1 V
Output Voltage-Min 4.9 V
Output Voltage-Nom 5 V
Package Body Material UNSPECIFIED
Package Code BGA
Package Equivalence Code LGA12,6X2
Package Shape RECTANGULAR
Package Style GRID ARRAY
Protections OVER LOAD, SHORT CIRCUIT
Ripple Voltage (Main Out) 0.02121 Vrms
Seated Height-Max 1.23 mm
Surface Mount YES
Technology HYBRID
Terminal Form NO LEAD
Terminal Position BOTTOM
Total Power Output-Max 1 W
Trim/Adjustable Output NO
Warm-up Time 0.0011 s
Width 4 mm
