Resistors / Metal Glaze/Thick Film Resistors / RC0805FR-074K75L
Datasheets
RC0805FR-074K75L by: YAGEO Corporation

Fixed Resistor, Metal Glaze/thick Film, 0.125W, 4750ohm, 150V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0805, CHIP

Part Details for RC0805FR-074K75L by YAGEO Corporation

Results Overview of RC0805FR-074K75L by YAGEO Corporation

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

RC0805FR-074K75L Information

RC0805FR-074K75L by YAGEO Corporation is a Metal Glaze/Thick Film Resistor.
Metal Glaze/Thick Film Resistors are under the broader part category of Resistors.

Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.

Price & Stock for RC0805FR-074K75L

Part # Distributor Description Stock Price Buy
DISTI # 82AH8338
Newark Res, 4K75, 1%, 0.125W, 0805, Thick Film Rohs Compliant: Yes |Yageo RC0805FR-074K75L RoHS: Compliant Min Qty: 10 Package Multiple: 1 Date Code: 1 Container: Cut Tape 216425
  • 10 $0.0140
  • 25 $0.0140
  • 50 $0.0120
  • 100 $0.0120
  • 250 $0.0110
  • 500 $0.0100
  • 1,000 $0.0090
$0.0090 / $0.0140 Buy Now
DISTI # 68AK7759
Newark Res, 4K75, 1%, 0.125W, Thick Film, 0805 Rohs Compliant: Yes |Yageo RC0805FR-074K75L RoHS: Compliant Min Qty: 5000 Package Multiple: 1 Date Code: 1 Container: Reel 0
  • 5,000 $0.0050
  • 10,000 $0.0040
$0.0040 / $0.0050 Buy Now
DISTI # RC0805FR-074K75L
Avnet Americas SMD Chip Resistor, 4.75 kOhm, ? 1%, 125 mW, 0805 [2012 Metric], Thick Film, General Purpose - Tape and Reel (Alt: RC0805FR-074K75L) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 28 Weeks, 0 Days Container: Reel 0
  • 5,000 $0.0023
  • 10,000 $0.0022
  • 20,000 $0.0022
  • 30,000 $0.0022
  • 40,000 $0.0022
$0.0022 / $0.0023 Buy Now
Bristol Electronics   32544
RFQ
Bristol Electronics   9040
RFQ
DISTI # RC0805FR-074K75L
TME Resistor: thick film, SMD, 0805, 4.75kΩ, 0.125W, ±1%, -55÷155°C Min Qty: 1 4900
  • 1 $0.0877
  • 10 $0.0111
  • 50 $0.0085
  • 100 $0.0075
  • 250 $0.0063
  • 1,000 $0.0046
  • 5,000 $0.0044
$0.0044 / $0.0877 Buy Now
Ameya Holding Limited RC Series 0805 0.125 W 4.75 kOhms 1% ±100 ppm/°C SMT Thick Film Chip Resistor 30000
RFQ
DISTI # SMC-RC0805FR-074K75L
Sensible Micro Corporation Res Mf 4.75K 1/8W 1% Lf 0805 RoHS: Compliant Min Qty: 25 Lead time: 0 Weeks, 1 Days Date Code: 1839 Container: Tape & Reel 960
  • 100 $0.0019
  • 500 $0.0019
  • 1,000 $0.0018
$0.0018 / $0.0019 RFQ
DISTI # SMC-RC0805FR-074K75L
Sensible Micro Corporation OEM Excess 5-7 Days Leadtime, We are an AS6081 Certified Vendor, 1 Yr Warranty RoHS: Not Compliant Min Qty: 25 Lead time: 2 Weeks, 0 Days 30
RFQ
DISTI # RC0805FR-074K75L
Avnet Abacus - Tape and Reel (Alt: RC0805FR-074K75L) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 20 Weeks, 0 Days Container: Reel Abacus - 845000
Buy Now
New Advantage Corporation RC Series 0805 0.125 W 4.75 kOhms 1% �100 ppm/�C SMT Thick Film Chip Resistor RoHS: Compliant Min Qty: 1 Package Multiple: 5000 1080000
  • 45,000 $0.0033
  • 1,080,000 $0.0031
$0.0031 / $0.0033 Buy Now
Vyrian Resistors 499389
RFQ

Part Details for RC0805FR-074K75L

RC0805FR-074K75L CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

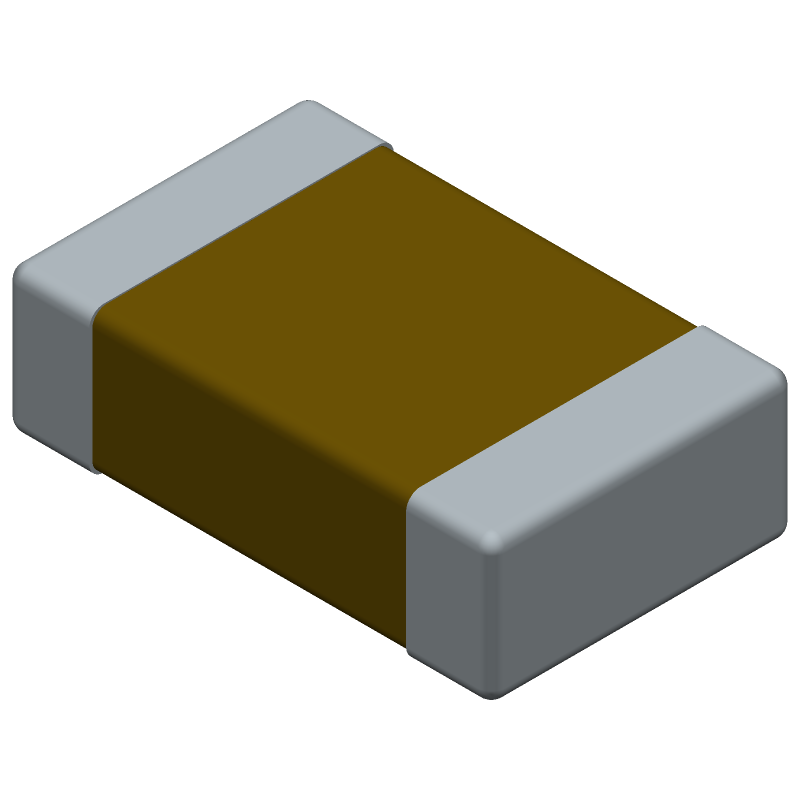

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

RC0805FR-074K75L Part Data Attributes

Parametric Data
RC0805FR-074K75L YAGEO Corporation
Buy Now Datasheet
Compare Parts:
RC0805FR-074K75L YAGEO Corporation Fixed Resistor, Metal Glaze/thick Film, 0.125W, 4750ohm, 150V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0805, CHIP
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer YAGEO CORP
Package Description CHIP
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8533.21.00.30
Factory Lead Time 28 Weeks
Samacsys Manufacturer YAGEO
Additional Feature LASER TRIMMABLE
Construction Rectangular
JESD-609 Code e3
Mounting Feature SURFACE MOUNT
Number of Terminals 2
Operating Temperature-Max 155 °C
Operating Temperature-Min -55 °C
Package Height 0.5 mm
Package Length 2 mm
Package Style SMT
Package Width 1.25 mm
Packing Method TR, PAPER, 7 INCH
Rated Power Dissipation (P) 0.125 W
Rated Temperature 70 °C
Resistance 4750 Ω
Resistor Type FIXED RESISTOR
Size Code 0805
Surface Mount YES
Technology METAL GLAZE/THICK FILM
Temperature Coefficient 100 ppm/°C
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal Shape WRAPAROUND
Tolerance 1%
Working Voltage 150 V

Alternate Parts for RC0805FR-074K75L

This table gives cross-reference parts and alternative options found for RC0805FR-074K75L. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of RC0805FR-074K75L, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
RS05K4751FBG Fenghua (HK) Electronics Ltd Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.25W, 4750ohm, 200V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 1206, CHIP RC0805FR-074K75L vs RS05K4751FBG
RK73H2ARTTPD4751F KOA Corporation Check for Price RES,SMT,THICK FILM,4.75K OHMS,150WV,1% +/-TOL,-100,100PPM TC,0805 CASE RC0805FR-074K75L vs RK73H2ARTTPD4751F
CRCW08054K75FKEC Vishay Intertechnologies Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.125W, 4750ohm, 150V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0805, CHIP, HALOGEN FREE AND ROHS COMPLIANT RC0805FR-074K75L vs CRCW08054K75FKEC
NRCS10F4751TRF NIC Components Corp Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.125W, 4750ohm, 150V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0805, CHIP, ROHS COMPLIANT RC0805FR-074K75L vs NRCS10F4751TRF
RC0805FR-074K75P YAGEO Corporation Check for Price RES SMD 4.75K OHM 1% 1/8W 0805 RC0805FR-074K75L vs RC0805FR-074K75P
CR0805T100W4.75K+-1% Precision Resistive Products Inc Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.125W, 4750ohm, 150V, 1% +/-Tol, -100,100ppm/Cel, 0805, RC0805FR-074K75L vs CR0805T100W4.75K+-1%
9C08052A4751FKPFT YAGEO Corporation Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.125W, 4750ohm, 150V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0805, CHIP, LEAD FREE RC0805FR-074K75L vs 9C08052A4751FKPFT
RC0805FRF134K75L YAGEO Corporation Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.125W, 4750ohm, 150V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0805, CHIP, LEAD FREE RC0805FR-074K75L vs RC0805FRF134K75L
CRCW08054K75FKTC Vishay Intertechnologies Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.125W, 4750ohm, 150V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0805, CHIP, HALOGEN FREE RC0805FR-074K75L vs CRCW08054K75FKTC
AC0805FR-134K75L YAGEO Corporation Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.125W, 4750ohm, 150V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0805, CHIP, HALOGEN FREE AND ROHS COMPLIANT RC0805FR-074K75L vs AC0805FR-134K75L

RC0805FR-074K75L Related Parts

RC0805FR-074K75L Frequently Asked Questions (FAQ)

  • The recommended soldering temperature for the RC0805FR-074K75L is 260°C for 10 seconds.

  • Yes, the RC0805FR-074K75L is suitable for high-frequency applications up to 1 GHz due to its thin-film construction and low inductance.

  • The power rating of the RC0805FR-074K75L at 70°C is 0.125W.

  • Yes, the RC0805FR-074K75L is RoHS compliant, meaning it does not contain hazardous substances like lead, mercury, or cadmium.

  • The MSL of the RC0805FR-074K75L is 1, which means it can withstand exposure to moisture for up to 30 days without being damaged.
