Resistors / Metal Glaze/Thick Film Resistors / RC0805FR-0751RL
Datasheets
RC0805FR-0751RL by: YAGEO Corporation

Fixed Resistor, Metal Glaze/thick Film, 0.125W, 51ohm, 150V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0805, CHIP

Part Details for RC0805FR-0751RL by YAGEO Corporation

Results Overview of RC0805FR-0751RL by YAGEO Corporation

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

RC0805FR-0751RL Information

RC0805FR-0751RL by YAGEO Corporation is a Metal Glaze/Thick Film Resistor.
Metal Glaze/Thick Film Resistors are under the broader part category of Resistors.

Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.

Price & Stock for RC0805FR-0751RL

Part # Distributor Description Stock Price Buy
DISTI # 49AK3306
Newark Res, 51R, 1%, 0.125W, Thick Film, 0805, Resistance:51Ohm, Resistance Tolerance:± 1%, Power Rating:125Mw, Resistor Case/Package:0805 [2012 Metric], Resistor Technology:Thick Film, Resistor Type:General Purpose, Voltage Rating:150V Rohs Compliant: Yes |Yageo RC0805FR-0751RL RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 9559
  • 1 $0.0040
  • 25 $0.0040
  • 50 $0.0040
  • 100 $0.0040
  • 250 $0.0040
$0.0040 Buy Now
DISTI # 68AK7799
Newark Res, 51R, 1%, 0.125W, Thick Film, 0805 Rohs Compliant: Yes |Yageo RC0805FR-0751RL RoHS: Compliant Min Qty: 5000 Package Multiple: 1 Date Code: 1 Container: Reel 5000
  • 5,000 $0.0050
$0.0050 Buy Now
DISTI # RC0805FR-0751RL
Avnet Americas SMD Chip Resistor, 51 Ohm, ? 1%, 125 mW, 0805 [2012 Metric], Thick Film, General Purpose - Tape and Reel (Alt: RC0805FR-0751RL) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 28 Weeks, 0 Days Container: Reel 2155000
  • 5,000 $0.0021
  • 10,000 $0.0021
  • 20,000 $0.0021
  • 30,000 $0.0020
  • 40,000 $0.0020
$0.0020 / $0.0021 Buy Now
DISTI # 49AK3306
Avnet Americas SMD Chip Resistor, 51 Ohm, ? 1%, 125 mW, 0805 [2012 Metric], Thick Film, General Purpose - Product that comes on tape, but is not reeled (Alt: 49AK3306) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 20 Weeks, 5 Days Container: Ammo Pack 9559 Partner Stock
  • 1 $0.1040
  • 25 $0.0120
  • 50 $0.0100
  • 100 $0.0070
$0.0070 / $0.1040 Buy Now
Bristol Electronics   42550
RFQ
Bristol Electronics   25000
RFQ
DISTI # RC0805FR-0751RL
TME Resistor: thick film, SMD, 0805, 51Ω, 0.125W, ±1%, -55÷155°C Min Qty: 100 2900
  • 100 $0.0430
  • 1,000 $0.0186
  • 5,000 $0.0073
  • 15,000 $0.0057
  • 50,000 $0.0049
$0.0049 / $0.0430 Buy Now
DISTI # RC0805FR-0751RL
Avnet Abacus SMD Chip Resistor 51 Ohm 1 125 mW 0805 2012 Metric Thick Film General Purpose - Tape and Reel (Alt: RC0805FR-0751RL) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 20 Weeks, 0 Days Container: Reel Abacus - 390000
Buy Now
New Advantage Corporation RC Series 0805 0.125 W 51 Ohms 1% �100 ppm/�C SMT Thick Film Chip Resistor RoHS: Compliant Min Qty: 1 Package Multiple: 5000 295000
  • 50,000 $0.0031
  • 295,000 $0.0029
$0.0029 / $0.0031 Buy Now
Vyrian Resistors 444266
RFQ

Part Details for RC0805FR-0751RL

RC0805FR-0751RL CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

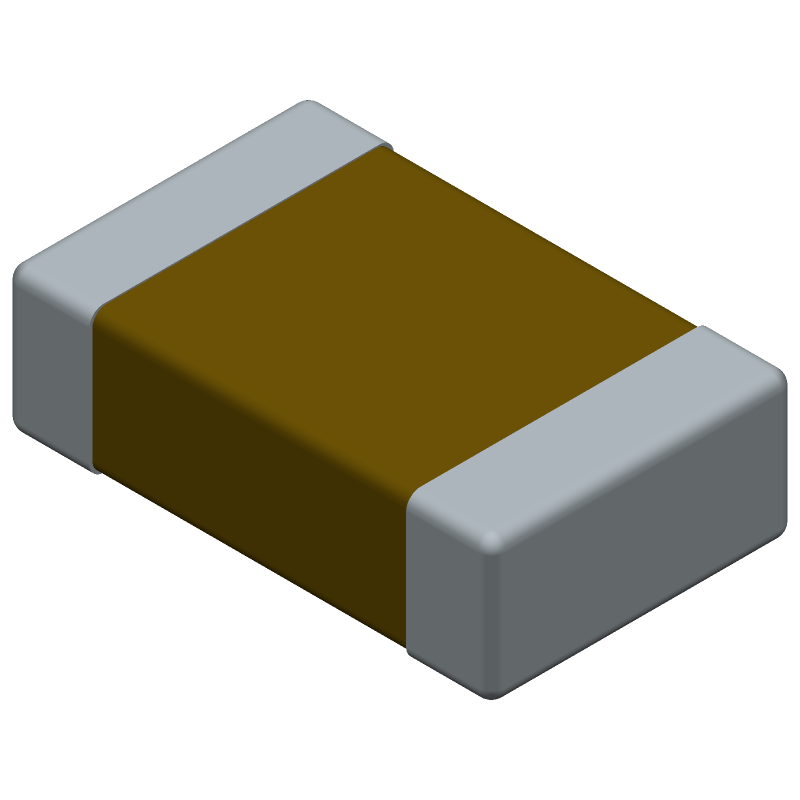

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

RC0805FR-0751RL Part Data Attributes

Parametric Data
RC0805FR-0751RL YAGEO Corporation
Buy Now Datasheet
Compare Parts:
RC0805FR-0751RL YAGEO Corporation Fixed Resistor, Metal Glaze/thick Film, 0.125W, 51ohm, 150V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0805, CHIP
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer YAGEO CORP
Package Description CHIP
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8533.21.00.30
Factory Lead Time 20 Weeks, 5 Days
Samacsys Manufacturer YAGEO
Additional Feature LASER TRIMMABLE
Construction Rectangular
JESD-609 Code e3
Mounting Feature SURFACE MOUNT
Number of Terminals 2
Operating Temperature-Max 155 °C
Operating Temperature-Min -55 °C
Package Height 0.5 mm
Package Length 2 mm
Package Style SMT
Package Width 1.25 mm
Packing Method TR, PAPER, 7 INCH
Rated Power Dissipation (P) 0.125 W
Rated Temperature 70 °C
Resistance 51 Ω
Resistor Type FIXED RESISTOR
Size Code 0805
Surface Mount YES
Technology METAL GLAZE/THICK FILM
Temperature Coefficient 100 ppm/°C
Terminal Finish MATTE TIN OVER NICKEL
Terminal Shape WRAPAROUND
Tolerance 1%
Working Voltage 150 V

Alternate Parts for RC0805FR-0751RL

This table gives cross-reference parts and alternative options found for RC0805FR-0751RL. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of RC0805FR-0751RL, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
RC2012F510CS Samsung Electro-Mechanics Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.125W, 51ohm, 150V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0805, CHIP RC0805FR-0751RL vs RC2012F510CS
RS05K510FCL Fenghua (HK) Electronics Ltd Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.25W, 51ohm, 200V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 1206, CHIP RC0805FR-0751RL vs RS05K510FCL
NRCS10F51R0TRF NIC Components Corp Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.125W, 51ohm, 150V, 1% +/-Tol, -100,100ppm/Cel, 0805, RC0805FR-0751RL vs NRCS10F51R0TRF
232273465109L YAGEO Corporation Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.125W, 51ohm, 150V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0805, CHIP, ROHS COMPLIANT RC0805FR-0751RL vs 232273465109L
9C08052A51R0FKPF3 YAGEO Corporation Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.125W, 51ohm, 150V, 1% +/-Tol, -100,100ppm/Cel, 0805, RC0805FR-0751RL vs 9C08052A51R0FKPF3
RC0805FRF1351R0 YAGEO Corporation Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.125W, 51ohm, 150V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0805, CHIP RC0805FR-0751RL vs RC0805FRF1351R0
RC0805FR-0751R YAGEO Corporation Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.125W, 51ohm, 150V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0805, CHIP, HALOGEN FREE AND ROHS COMPLIANT RC0805FR-0751RL vs RC0805FR-0751R
RGC0805FTD51R0 SEI Stackpole Electronics Inc Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.125W, 51ohm, 150V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0805, CHIP, ROHS COMPLIANT RC0805FR-0751RL vs RGC0805FTD51R0
NMCT0805FG51R0 SEI Stackpole Electronics Inc Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.125W, 51ohm, 150V, 1% +/-Tol, -100,100ppm/Cel, 0805, RC0805FR-0751RL vs NMCT0805FG51R0
CR0805-8W-51R0FPT VENKEL LTD Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.125W, 51ohm, 150V, 1% +/-Tol, -100,100ppm/Cel, 0805, RC0805FR-0751RL vs CR0805-8W-51R0FPT

RC0805FR-0751RL Related Parts

RC0805FR-0751RL Frequently Asked Questions (FAQ)

  • The recommended soldering temperature for RC0805FR-0751RL is between 250°C to 260°C for a maximum of 10 seconds.

  • Yes, RC0805FR-0751RL is compatible with lead-free soldering and is RoHS compliant.

  • The power rating of RC0805FR-0751RL is 0.125W.

  • Yes, RC0805FR-0751RL is suitable for high-frequency applications up to 1 GHz due to its low inductance and high self-resonant frequency.

  • Yes, RC0805FR-0751RL is available in tape and reel packaging for automated assembly.
