Resistors / Metal Glaze/Thick Film Resistors / RC1206FR-074K7L
Datasheets
RC1206FR-074K7L by: YAGEO Corporation

Fixed Resistor, Metal Glaze/thick Film, 0.25W, 4700ohm, 200V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 1206, CHIP

Part Details for RC1206FR-074K7L by YAGEO Corporation

Results Overview of RC1206FR-074K7L by YAGEO Corporation

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

RC1206FR-074K7L Information

RC1206FR-074K7L by YAGEO Corporation is a Metal Glaze/Thick Film Resistor.
Metal Glaze/Thick Film Resistors are under the broader part category of Resistors.

Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.

Price & Stock for RC1206FR-074K7L

Part # Distributor Description Stock Price Buy
DISTI # 75X0170
Newark Surface Mount Chip Resistor, Thick Film, Rc Series, 4.7 Kohm, 250 Mw, 1%, 200 V Rohs Compliant: Yes |Yageo RC1206FR-074K7L RoHS: Compliant Min Qty: 5000 Package Multiple: 1 Date Code: 1 Container: Reel 25000
  • 5,000 $0.0060
  • 10,000 $0.0050
$0.0050 / $0.0060 Buy Now
DISTI # 49AK3770
Newark Res, 4K7, 1%, 0.25W, Thick Film, 1206, Resistance:4.7Kohm, Resistance Tolerance:± 1%, Power Rating:250Mw, Resistor Case/Package:1206 [3216 Metric], Resistor Technology:Thick Film, Resistor Type:General Purpose, Voltage Rating:200V Rohs Compliant: Yes |Yageo RC1206FR-074K7L RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 7172
  • 1 $0.0100
  • 25 $0.0100
  • 50 $0.0100
  • 100 $0.0100
  • 250 $0.0100
  • 500 $0.0090
  • 1,000 $0.0080
$0.0080 / $0.0100 Buy Now
DISTI # 98K7694
Newark Surface Mount Chip Resistor, Thick Film, Rc Series, 4.7 Kohm, 250 Mw, 1%, 200 V Rohs Compliant: Yes |Yageo RC1206FR-074K7L RoHS: Compliant Min Qty: 10 Package Multiple: 1 Date Code: 1 Container: Cut Tape 0
  • 1 $0.0060
  • 25 $0.0060
  • 50 $0.0060
  • 100 $0.0060
$0.0060 Buy Now
DISTI # RC1206FR-074K7L
Avnet Americas SMD Chip Resistor, 4.7 kOhm, ? 1%, 250 mW, 1206 [3216 Metric], Thick Film, General Purpose - Tape and Reel (Alt: RC1206FR-074K7L) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 28 Weeks, 0 Days Container: Reel 0
  • 5,000 $0.0035
  • 10,000 $0.0034
  • 20,000 $0.0034
  • 30,000 $0.0033
  • 40,000 $0.0032
$0.0032 / $0.0035 Buy Now
DISTI # 98K7694
Avnet Americas SMD Chip Resistor, 4.7 kOhm, ? 1%, 250 mW, 1206 [3216 Metric], Thick Film, General Purpose - Product that comes on tape, but is not reeled (Alt: 98K7694) RoHS: Compliant Min Qty: 10 Package Multiple: 10 Lead time: 111 Weeks, 0 Days Container: Ammo Pack 0
  • 1 $0.1040
  • 30 $0.0180
  • 50 $0.0170
  • 100 $0.0160
  • 250 $0.0150
$0.0150 / $0.1040 Buy Now
DISTI # 49AK3770
Avnet Americas SMD Chip Resistor, 4.7 kOhm, ? 1%, 250 mW, 1206 [3216 Metric], Thick Film, General Purpose - Product that comes on tape, but is not reeled (Alt: 49AK3770) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 20 Weeks, 5 Days Container: Ammo Pack 0
  • 1 $0.1040
  • 25 $0.0180
  • 50 $0.0170
  • 100 $0.0160
  • 250 $0.0150
$0.0150 / $0.1040 Buy Now
Bristol Electronics   16185
RFQ
DISTI # RC1206FR-074K7
TME Resistor: thick film, SMD, 1206, 4.7kΩ, 0.25W, ±1%, -55÷155°C Min Qty: 1 24046
  • 1 $0.0793
  • 10 $0.0197
  • 50 $0.0138
  • 100 $0.0119
  • 1,000 $0.0068
  • 2,500 $0.0053
  • 3,000 $0.0050
  • 5,000 $0.0043
  • 10,000 $0.0034
  • 15,000 $0.0030
$0.0030 / $0.0793 Buy Now
Ameya Holding Limited RC Series 1206 0.25 W 4.7 kOhms 1% ±100 ppm/°C SMT Thick Film Chip Resistor 30000
Buy Now RFQ
DISTI # WRC32401
Rutronik RC1206 4,7K 1% 0,25W TK100 RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Container: Reel Stock DE - 3295000
Stock HK - 0
Stock US - 0
Stock SG - 155000
  • 5,000 $0.0044
  • 15,000 $0.0036
  • 25,000 $0.0034
  • 50,000 $0.0034
  • 250,000 $0.0033
$0.0033 / $0.0044 Buy Now
DISTI # SMC-RC1206FR-074K7L
Sensible Micro Corporation AS6081 Certified Vendor, 1 Yr Warranty RoHS: Not Compliant Min Qty: 25 Lead time: 2 Weeks, 0 Days 53283
RFQ
DISTI # RC1206FR-074K7L
Avnet Abacus SMD Chip Resistor 47 kOhm 1 250 mW 1206 3216 Metric Thick Film General Purpose - Tape and Reel (Alt: RC1206FR-074K7L) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 20 Weeks, 0 Days Container: Reel Abacus - 1225000
Buy Now
DISTI # RMC1206-4K7-1-Y
Maritex Chip Resistor, SMD, 1206, 4K, 7, 1%, 1/4W Min Qty: 100 Package Multiple: 100 13835
  • 1 $0.0940
  • 1,000 $0.0090
  • 5,000 $0.0070
  • 20,000 $0.0060
$0.0060 / $0.0940 Buy Now
New Advantage Corporation RC Series 1206 0.25 W 4.7 kOhms 1% �100 ppm/�C SMT Thick Film Chip Resistor RoHS: Compliant Min Qty: 1 Package Multiple: 5000 1050000
  • 35,000 $0.0052
  • 1,050,000 $0.0048
$0.0048 / $0.0052 Buy Now
Vyrian Resistors 390172
RFQ

Part Details for RC1206FR-074K7L

RC1206FR-074K7L CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

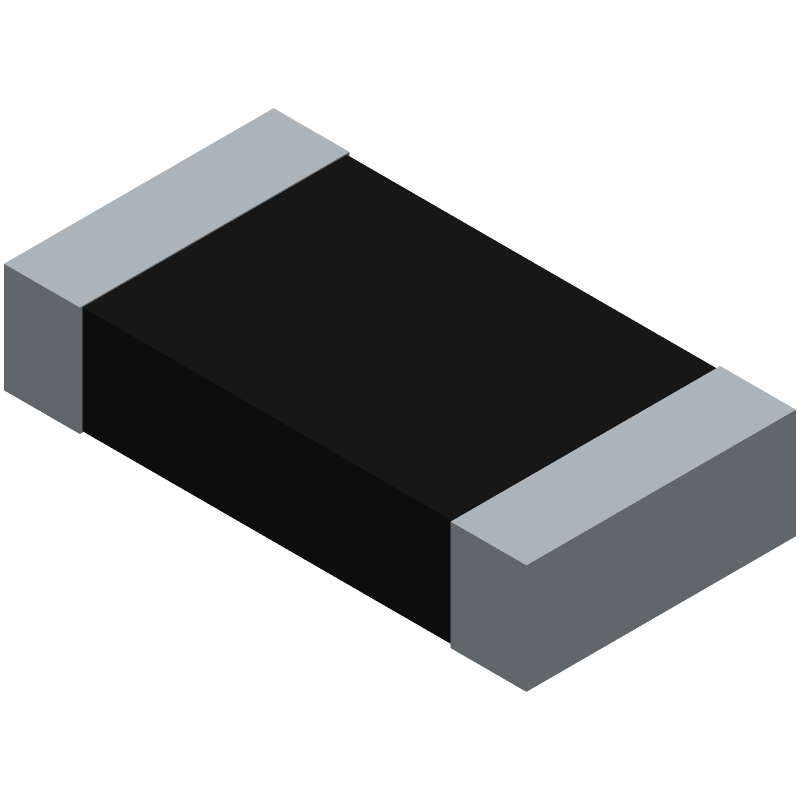

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

RC1206FR-074K7L Part Data Attributes

Parametric Data
RC1206FR-074K7L YAGEO Corporation
Buy Now Datasheet
Compare Parts:
RC1206FR-074K7L YAGEO Corporation Fixed Resistor, Metal Glaze/thick Film, 0.25W, 4700ohm, 200V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 1206, CHIP
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer YAGEO CORP
Package Description CHIP
Reach Compliance Code compliant
Factory Lead Time 20 Weeks, 5 Days
Samacsys Manufacturer YAGEO
Additional Feature LASER TRIMMABLE
Construction Rectangular
JESD-609 Code e3
Mounting Feature SURFACE MOUNT
Number of Terminals 2
Operating Temperature-Max 155 °C
Operating Temperature-Min -55 °C
Package Height 0.55 mm
Package Length 3.1 mm
Package Style SMT
Package Width 1.6 mm
Packing Method TR, PAPER, 7 INCH
Rated Power Dissipation (P) 0.25 W
Rated Temperature 70 °C
Resistance 4700 Ω
Resistor Type FIXED RESISTOR
Size Code 1206
Surface Mount YES
Technology METAL GLAZE/THICK FILM
Temperature Coefficient 100 ppm/°C
Terminal Finish MATTE TIN OVER NICKEL
Terminal Shape WRAPAROUND
Tolerance 1%
Working Voltage 200 V

Alternate Parts for RC1206FR-074K7L

This table gives cross-reference parts and alternative options found for RC1206FR-074K7L. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of RC1206FR-074K7L, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
CR1206-4W-4701FT VENKEL LTD Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.25W, 4700ohm, 200V, 1% +/-Tol, -100,100ppm/Cel, 1206 RC1206FR-074K7L vs CR1206-4W-4701FT
9C12063A4701FKHFT YAGEO Corporation Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.25W, 4700ohm, 200V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 1206, CHIP RC1206FR-074K7L vs 9C12063A4701FKHFT
1206S4F4701T5E Royal Electronic Factory (Thailand) Co Ltd $0.0147 Fixed Resistor, Metal Glaze/thick Film, 0.25W, 4700ohm, 200V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 1206, CHIP RC1206FR-074K7L vs 1206S4F4701T5E
RS06K472FTL Fenghua (HK) Electronics Ltd Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.25W, 4700ohm, 200V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 1206, CHIP RC1206FR-074K7L vs RS06K472FTL
RS06K472FBG Fenghua (HK) Electronics Ltd Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.25W, 4700ohm, 200V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 1206, CHIP RC1206FR-074K7L vs RS06K472FBG
CR1206-4W-4701FT-13 VENKEL LTD Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.25W, 4700ohm, 200V, 1% +/-Tol, -100,100ppm/Cel, 1206, RC1206FR-074K7L vs CR1206-4W-4701FT-13
NRCS12F4701TRF NIC Components Corp Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.25W, 4700ohm, 200V, 1% +/-Tol, -100,100ppm/Cel, 1206, RC1206FR-074K7L vs NRCS12F4701TRF
RC1206FR-134K7L YAGEO Corporation $0.0237 Fixed Resistor, Metal Glaze/thick Film, 0.25W, 4700ohm, 200V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 1206, CHIP RC1206FR-074K7L vs RC1206FR-134K7L
NRCL12F4701TRF NIC Components Corp Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.25W, 4700ohm, 200V, 1% +/-Tol, -100,100ppm/Cel, 1206 RC1206FR-074K7L vs NRCL12F4701TRF
RC3216F472ES Samsung Electro-Mechanics Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.25W, 4700ohm, 200V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 1206, CHIP RC1206FR-074K7L vs RC3216F472ES

RC1206FR-074K7L Related Parts

RC1206FR-074K7L Frequently Asked Questions (FAQ)

  • The thermal resistance of the RC1206FR-074K7L is typically around 250°C/W, but this value can vary depending on the specific application and operating conditions.

  • Yes, the RC1206FR-074K7L is suitable for high-frequency applications up to several hundred MHz due to its low inductance and high-frequency stability.

  • The RC1206FR-074K7L has a moisture sensitivity level (MSL) of 1, which means it can withstand normal humidity levels without special handling or storage requirements.

  • Yes, the RC1206FR-074K7L meets the requirements for automotive applications, including AEC-Q200 qualification, and is suitable for use in automotive systems.

  • The recommended soldering temperature profile for the RC1206FR-074K7L is a peak temperature of 260°C for 10-30 seconds, with a ramp-up rate of 3°C/s and a ramp-down rate of 6°C/s.
