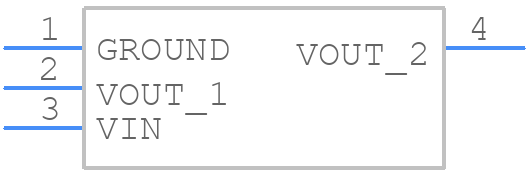

Part Symbol
-

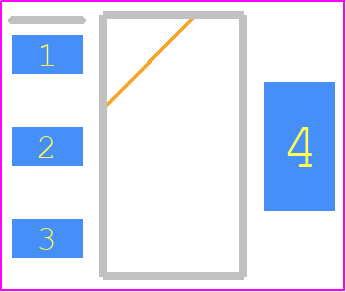

Footprint
-

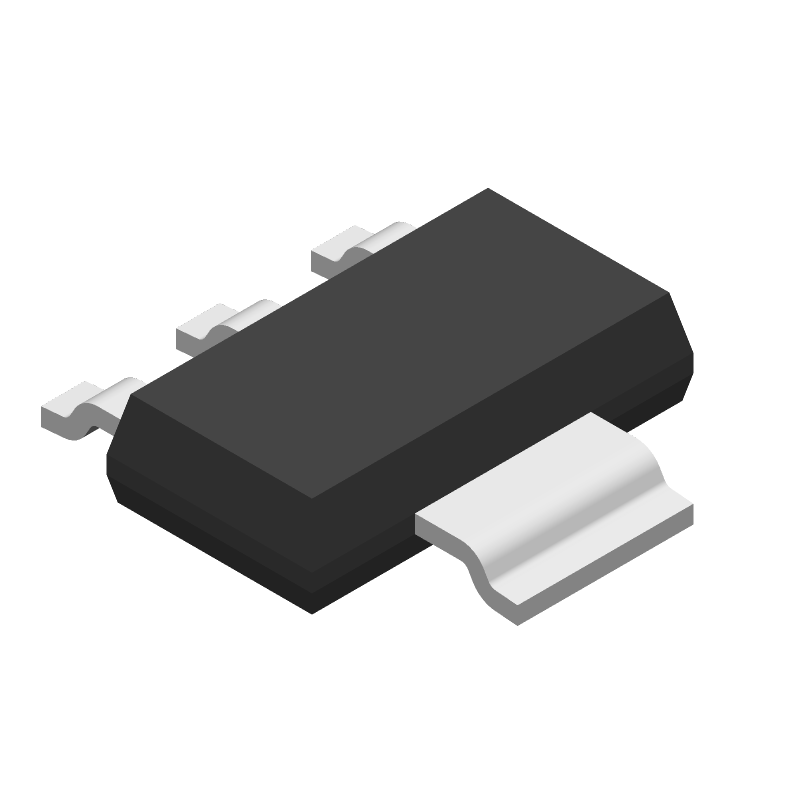

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for REG1117A-1.8 by Texas Instruments
Results Overview of REG1117A-1.8 by Texas Instruments
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (2 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
REG1117A-1.8 Information
REG1117A-1.8 by Texas Instruments is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for REG1117A-1.8
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Bristol Electronics | 119 |
|
RFQ | ||
|
|
Rochester Electronics | REG1117 1A Low Dropout Positive Regulator RoHS: Compliant Status: Active Min Qty: 1 | 299 |
|
$1.0400 / $1.3000 | Buy Now |
|
DISTI #
REG1117A-1.8
|
TME | IC: voltage regulator, LDO,fixed, 1.8V, 1A, SOT223-3, SMD, REG1117 Min Qty: 1 | 0 |
|
$1.6600 / $2.6900 | RFQ |
Part Details for REG1117A-1.8
REG1117A-1.8 CAD Models
REG1117A-1.8 Part Data Attributes
|
|
REG1117A-1.8
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
REG1117A-1.8
Texas Instruments
1-A, 15-V, linear voltage regulator from -40°C to +125°C 4-SOT-223 -40 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SOT-223 | |
| Package Description | GREEN, PLASTIC, SOT-223, 4 PIN | |
| Pin Count | 4 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Adjustability | FIXED | |
| Dropout Voltage1-Max | 1.55 V | |
| Dropout Voltage1-Nom | 1.2 V | |
| Input Voltage Absolute-Max | 15 V | |
| Input Voltage-Max | 15 V | |
| Input Voltage-Min | 3.8 V | |
| JESD-30 Code | R-PDSO-G4 | |
| JESD-609 Code | e4 | |
| Length | 6.5 mm | |
| Line Regulation-Max | 0.007% | |
| Load Regulation-Max | 0.01% | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 4 | |
| Operating Temperature TJ-Max | 125 °C | |
| Operating Temperature TJ-Min | -40 °C | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current1-Max | 1 A | |
| Output Voltage1-Max | 1.836 V | |
| Output Voltage1-Min | 1.764 V | |
| Output Voltage1-Nom | 1.8 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOT-223 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Packing Method | TUBE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Regulator Type | FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR | |
| Seated Height-Max | 1.8 mm | |
| Surface Mount | YES | |
| Technology | BIPOLAR | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 2.3 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Voltage Tolerance-Max | 2% | |
| Width | 3.5 mm |
Alternate Parts for REG1117A-1.8
This table gives cross-reference parts and alternative options found for REG1117A-1.8. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of REG1117A-1.8, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| REG1117A-1.8 | Burr-Brown Corp | Check for Price | Fixed Positive LDO Regulator, 1.8V, 1.55V Dropout, BIPolar, PDSO4, PLASTIC, SOT-223, 4 PIN | REG1117A-1.8 vs REG1117A-1.8 |
| REG1117A-1.8G4 | Texas Instruments | Check for Price | 1-A, 15-V, linear voltage regulator from -40°C to +125°C 4-SOT-223 -40 to 125 | REG1117A-1.8 vs REG1117A-1.8G4 |
REG1117A-1.8 Frequently Asked Questions (FAQ)
-
The maximum input voltage that can be applied to the REG1117A-1.8 is 15V. Exceeding this voltage may damage the device.
-
The REG1117A-1.8 can supply up to 1A of output current. However, the maximum current is dependent on the input voltage, output voltage, and ambient temperature.
-
The dropout voltage of the REG1117A-1.8 is typically around 1.5V. This means that the input voltage must be at least 1.5V higher than the output voltage to maintain regulation.
-
Yes, the REG1117A-1.8 has built-in short-circuit protection. If the output is short-circuited, the device will limit the output current to prevent damage.
-
The REG1117A-1.8 is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's recommended to derate the output current and input voltage at high temperatures.
