Resistors / Metal Glaze/Thick Film Resistors / RMCF1206JT2M70
Datasheets

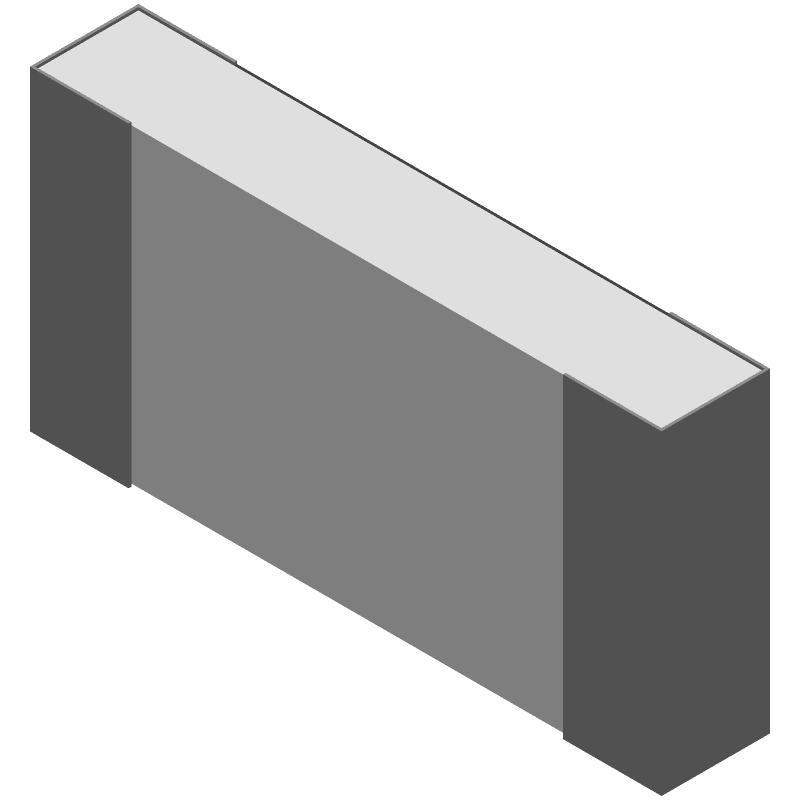

RMCF1206JT2M70 by: SEI Stackpole Electronics Inc

Fixed Resistor, Metal Glaze/thick Film, 0.25W, 2700000ohm, 200V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 1206, CHIP

Part Details for RMCF1206JT2M70 by SEI Stackpole Electronics Inc

Results Overview of RMCF1206JT2M70 by SEI Stackpole Electronics Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

RMCF1206JT2M70 Information

RMCF1206JT2M70 by SEI Stackpole Electronics Inc is a Metal Glaze/Thick Film Resistor.
Metal Glaze/Thick Film Resistors are under the broader part category of Resistors.

Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.

Price & Stock for RMCF1206JT2M70

Part # Distributor Description Stock Price Buy
DISTI # RMCF1206JT2M70
Avnet Americas Res Thick Film 1206 2.7M Ohm 5% 1/4W ?200ppm/?C Molded SMD SMD Paper T/R - Tape and Reel (Alt: RMCF1206JT2M70) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 14 Weeks, 0 Days Container: Reel 70000 Factory Stock
  • 5,000 $0.0031
  • 10,000 $0.0029
  • 20,000 $0.0030
  • 30,000 $0.0029
  • 40,000 $0.0029
$0.0029 / $0.0031 Buy Now
NAC RESISTOR, 1206, 2.7 Mohm, 5%, 0.25W - Thick film - General Purpose RoHS: Compliant Min Qty: 1 Package Multiple: 5000 70000
  • 5,000 $0.0070
  • 125,000 $0.0060
$0.0060 / $0.0070 Buy Now
DISTI # RMCF1206JT2M70
Avnet Asia Res Thick Film 1206 2.7M Ohm 5% 1/4W ?200ppm/?C Molded SMD SMD Paper T/R (Alt: RMCF1206JT2M70) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 10 Weeks, 0 Days 0
RFQ

Part Details for RMCF1206JT2M70

RMCF1206JT2M70 Part Data Attributes

Parametric Data
RMCF1206JT2M70 SEI Stackpole Electronics Inc
Buy Now Datasheet
Compare Parts:
RMCF1206JT2M70 SEI Stackpole Electronics Inc Fixed Resistor, Metal Glaze/thick Film, 0.25W, 2700000ohm, 200V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 1206, CHIP
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer STACKPOLE ELECTRONICS INC
Package Description CHIP
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8533.21.00.30
Factory Lead Time 14 Weeks
Samacsys Manufacturer Stackpole Electronics, Inc.
Construction Rectangular
JESD-609 Code e3
Mounting Feature SURFACE MOUNT
Number of Terminals 2
Operating Temperature-Max 155 °C
Operating Temperature-Min -55 °C
Package Height 0.55 mm
Package Length 3.2 mm
Package Shape RECTANGULAR PACKAGE
Package Style SMT
Package Width 1.6 mm
Packing Method TR, PAPER, 7 INCH
Rated Power Dissipation (P) 0.25 W
Rated Temperature 70 °C
Reference Standard AEC-Q200
Resistance 2700000 Ω
Resistor Type FIXED RESISTOR
Size Code 1206
Surface Mount YES
Technology METAL GLAZE/THICK FILM
Temperature Coefficient 200 ppm/°C
Terminal Finish MATTE TIN OVER NICKEL
Terminal Shape WRAPAROUND
Tolerance 5%
Working Voltage 200 V

Alternate Parts for RMCF1206JT2M70

This table gives cross-reference parts and alternative options found for RMCF1206JT2M70. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of RMCF1206JT2M70, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
MC1206-275-JB201Q RCD Components Inc Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.25W, 2700000ohm, 200V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 1206, CHIP RMCF1206JT2M70 vs MC1206-275-JB201Q
1206S4J0275T1 Royal Electronic Factory (Thailand) Co Ltd Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.25W, 2700000ohm, 200V, 5% +/-Tol, -200,200ppm/Cel, 1206, RMCF1206JT2M70 vs 1206S4J0275T1
NRCL12J275TR13F NIC Components Corp Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.25W, 2700000ohm, 200V, 5% +/-Tol, -200,200ppm/Cel, 1206 RMCF1206JT2M70 vs NRCL12J275TR13F
RM12JTN275 TA-I Technology Co Ltd Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.25W, 2700000ohm, 200V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 1206, CHIP, LEAD FREE RMCF1206JT2M70 vs RM12JTN275
1206S4J0275B5E Royal Electronic Factory (Thailand) Co Ltd Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.25W, 2700000ohm, 200V, 5% +/-Tol, -200,200ppm/Cel, 1206, RMCF1206JT2M70 vs 1206S4J0275B5E
SG73P2BRTTD275J KOA Speer Electronics Inc Check for Price Fixed Resistor, 0.33W, 2700000ohm, 200V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 1206, CHIP RMCF1206JT2M70 vs SG73P2BRTTD275J
1206S4J0275T5 Royal Electronic Factory (Thailand) Co Ltd Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.25W, 2700000ohm, 200V, 5% +/-Tol, -200,200ppm/Cel, 1206, RMCF1206JT2M70 vs 1206S4J0275T5
RMC1/8-275JB Kamaya Inc Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.25W, 2700000ohm, 200V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 1206, CHIP, ROHS COMPLIANT RMCF1206JT2M70 vs RMC1/8-275JB
FCF06JP275 Prosperity Dielectrics Co Ltd Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.25W, 2700000ohm, 200V, 5% +/-Tol, -200,200ppm/Cel, 1206, RMCF1206JT2M70 vs FCF06JP275
RMCF1206JB2M70 SEI Stackpole Electronics Inc Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.25W, 2700000ohm, 200V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 1206, CHIP, ROHS COMPLIANT RMCF1206JT2M70 vs RMCF1206JB2M70

RMCF1206JT2M70 Related Parts

RMCF1206JT2M70 Frequently Asked Questions (FAQ)

  • The recommended land pattern for RMCF1206JT2M70 is a rectangular pad with a size of 1.3mm x 1.3mm, with a non-solder mask defined (NSMD) pad shape. The pad should be centered on the component and have a solder mask clearance of 0.1mm.

  • Yes, RMCF1206JT2M70 is suitable for high-frequency applications up to 1 GHz due to its low equivalent series resistance (ESR) and high self-resonant frequency (SRF). However, it's essential to consider the component's parasitic inductance and capacitance when designing the circuit.

  • RMCF1206JT2M70 is rated for operation up to 150°C, but its performance may degrade at higher temperatures. The component's capacitance and ESR may change significantly above 125°C, so it's crucial to consider derating and thermal management in high-temperature applications.

  • Yes, RMCF1206JT2M70 is compatible with lead-free soldering processes, including SAC305 and Sn96.5Ag3Cu0.5. The component's termination is made of a lead-free, tin-silver-copper alloy that meets the requirements of the RoHS directive.

  • RMCF1206JT2M70 should be stored in a dry, cool place, away from direct sunlight and moisture. The components should be handled with anti-static precautions, such as using an anti-static wrist strap or mat, to prevent electrostatic discharge (ESD) damage.
