RR0816P-2052-D-31C by: Susumu Co Ltd

Fixed Resistor, Thin Film, 0.0625W, 20500ohm, 75V, 0.5% +/-Tol, 25ppm/Cel, Surface Mount, 0603, CHIP

Part Details for RR0816P-2052-D-31C by Susumu Co Ltd

Results Overview of RR0816P-2052-D-31C by Susumu Co Ltd

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Energy and Power Systems Medical Imaging Robotics and Drones

RR0816P-2052-D-31C Information

RR0816P-2052-D-31C by Susumu Co Ltd is a Thin Film Resistor.
Thin Film Resistors are under the broader part category of Resistors.

Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.

Price & Stock for RR0816P-2052-D-31C

Part # Distributor Description Stock Price Buy
DISTI # 28K0553
Newark Res, Thin Film, 20K5, 0.5%, 0.063W, 0603, Resistance:20.5Kohm, Resistance Tolerance:± 0.5%, Power Rating:63Mw, Resistor Case/Package:0603 [1608 Metric], Resistor Technology:Thin Film, Resistor Type:Precision, Voltage Rating:75V Rohs Compliant: Yes |Susumu RR0816P-2052-D-31C RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 1960
  • 1 $0.1740
  • 25 $0.1420
  • 50 $0.1210
  • 100 $0.0830
  • 250 $0.0630
  • 500 $0.0490
  • 1,000 $0.0400
  • 2,500 $0.0330
$0.0330 / $0.1740 Buy Now
DISTI # 28K0554
Newark Resistor Thin Film 20.5Kohm 63Mw 0.5% 0603, Full Reel, Resistance:20.5Kohm, Resistance Tolerance:± 0.5%, Power Rating:63Mw, Resistor Case/Package:0603 [1608 Metric], Resistor Technology:Thin Film, Resistor Type:Precision Rohs Compliant: Yes |Susumu RR0816P-2052-D-31C RoHS: Compliant Min Qty: 5000 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 5,000 $0.0280
  • 10,000 $0.0220
  • 20,000 $0.0160
$0.0160 / $0.0280 Buy Now
New Advantage Corporation RR Series 0603 0.063 W 20.5 kOhm �0.5 % �25 ppm/�C SMT Thin Film Chip Resistor RoHS: Compliant Min Qty: 1 Package Multiple: 5000 25000
  • 10,000 $0.0174
  • 25,000 $0.0163
$0.0163 / $0.0174 Buy Now
Perfect Parts Corporation   10976
RFQ

Part Details for RR0816P-2052-D-31C

RR0816P-2052-D-31C CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

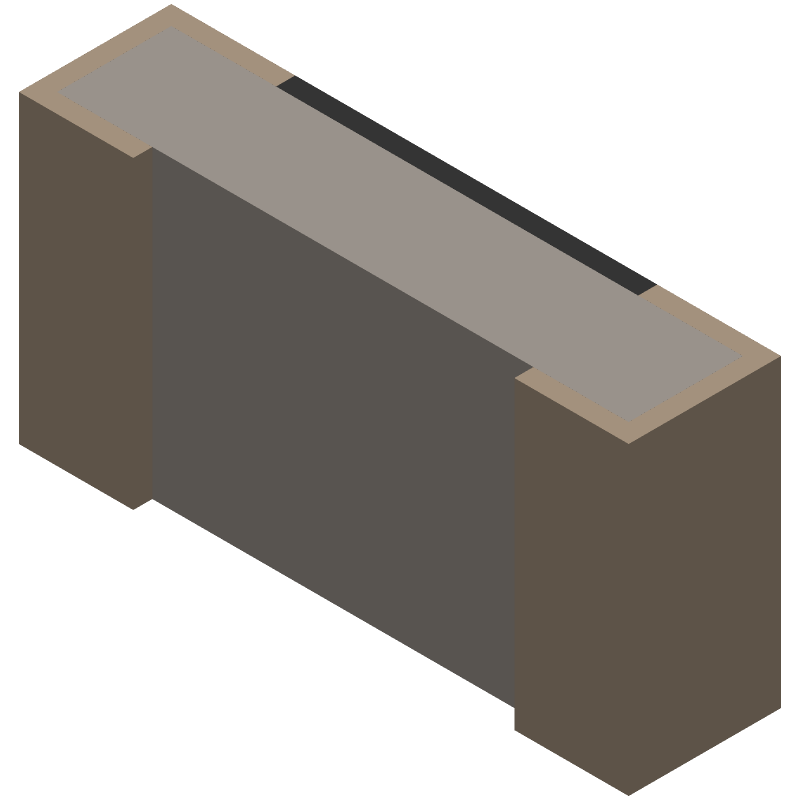

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

RR0816P-2052-D-31C Part Data Attributes

Parametric Data
RR0816P-2052-D-31C Susumu Co Ltd
Buy Now Datasheet
Compare Parts:
RR0816P-2052-D-31C Susumu Co Ltd Fixed Resistor, Thin Film, 0.0625W, 20500ohm, 75V, 0.5% +/-Tol, 25ppm/Cel, Surface Mount, 0603, CHIP
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Not Recommended
Ihs Manufacturer SUSUMU CO LTD
Package Description CHIP
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8533.21.00.30
Samacsys Manufacturer Susumu
Additional Feature PRECISION
Construction Rectangular
JESD-609 Code e3
Mounting Feature SURFACE MOUNT
Number of Terminals 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Package Height 0.4 mm
Package Length 1.6 mm
Package Style SMT
Package Width 0.8 mm
Packing Method TR, PAPER, 7 INCH
Rated Power Dissipation (P) 0.0625 W
Resistance 20500 Ω
Resistor Type FIXED RESISTOR
Size Code 0603
Surface Mount YES
Technology THIN FILM
Temperature Coefficient 25 ppm/°C
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal Shape WRAPAROUND
Tolerance 0.5%
Working Voltage 75 V
