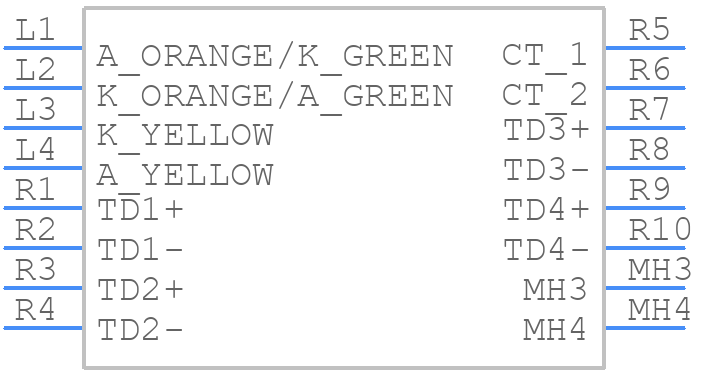

Part Symbol
-

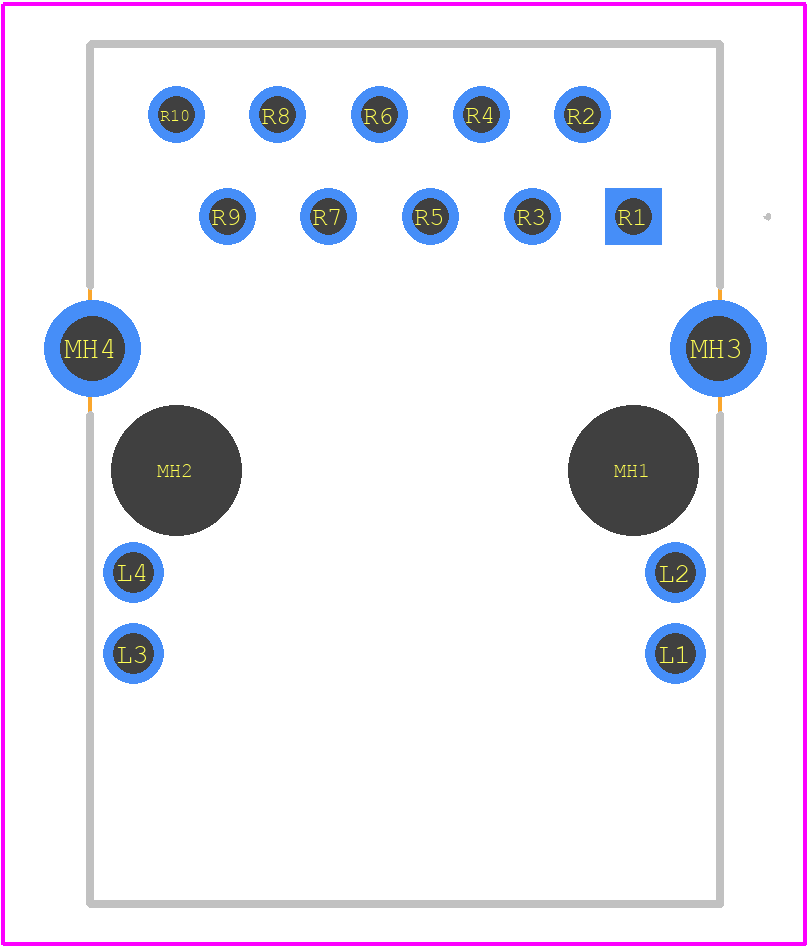

Footprint
-

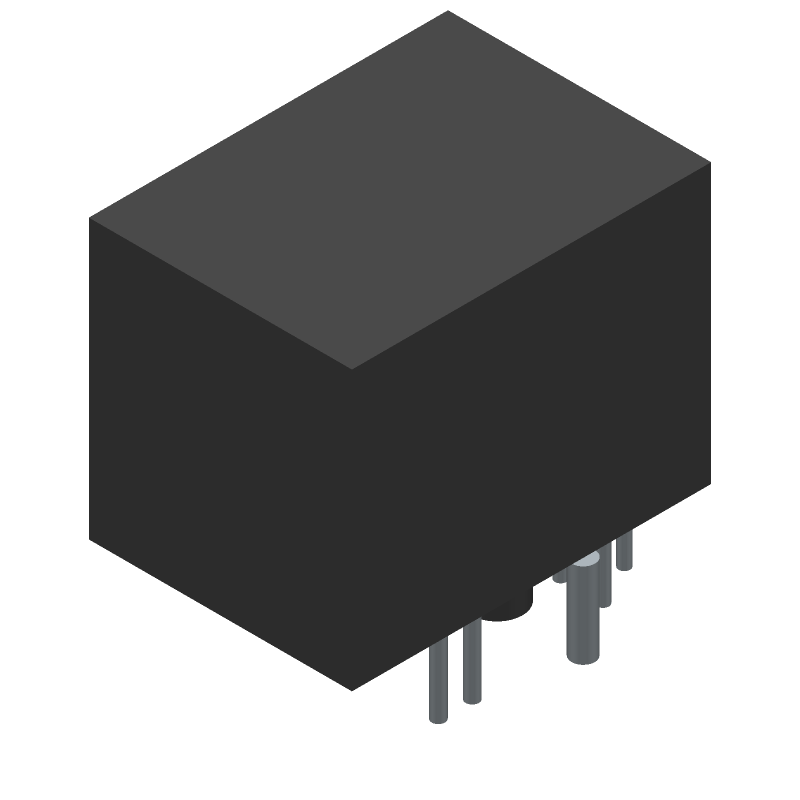

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for RT7-174AAM1A by UDE Corp
Results Overview of RT7-174AAM1A by UDE Corp
- Distributor Offerings: (0 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
RT7-174AAM1A Information
RT7-174AAM1A by UDE Corp is a Telecom and Datacom Connector.
Telecom and Datacom Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Part Details for RT7-174AAM1A
RT7-174AAM1A CAD Models
RT7-174AAM1A Part Data Attributes
|
|
RT7-174AAM1A
UDE Corp
Buy Now
Datasheet
|
Compare Parts:
RT7-174AAM1A
UDE Corp
Telecom and Datacom Connector, 8 Contact(s), Female, Right Angle, Solder Terminal
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Contact Manufacturer | |
| Ihs Manufacturer | UDE CORP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.69.40.30 | |
| Samacsys Manufacturer | UDE Corp | |
| Additional Feature | SHIELDED | |
| Connector Type | RJ CONNECTOR | |
| Contact Finish Mating | GOLD FLASH | |
| Contact Finish Termination | Tin (Sn) | |
| Contact Gender | FEMALE | |
| Contact Material | PHOSPHOR BRONZE | |
| DIN Conformance | NO | |
| Empty Shell | NO | |
| Filter Feature | YES | |
| IEC Conformance | NO | |
| Insulator Material | POLYETHYLENE | |
| JESD-609 Code | e3 | |
| MIL Conformance | NO | |
| Mixed Contacts | NO | |
| Mounting Style | RIGHT ANGLE | |
| Mounting Type | BOARD | |
| Option | GENERAL PURPOSE | |
| Shell Material | STAINLESS STEEL | |
| Termination Type | SOLDER | |
| Total Number of Contacts | 8 | |
| UL Flammability Code | 94V-0 |
