Power Circuits / Power Supply Modules / S24SE05006PDFA
Datasheets
S24SE05006PDFA by:

DC-DC Regulated Power Supply Module, 1 Output, 30W, Hybrid, PACKAGE-6

Part Details for S24SE05006PDFA by Delta Electronics Inc

Results Overview of S24SE05006PDFA by Delta Electronics Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

S24SE05006PDFA Information

S24SE05006PDFA by Delta Electronics Inc is a Power Supply Module.
Power Supply Modules are under the broader part category of Power Circuits.

A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.

Price & Stock for S24SE05006PDFA

Part # Distributor Description Stock Price Buy
Neutron USA Isolated DC/DC Converters DCDC CONVERTER +5Vout 30W 0
  • 1 $139.7200
$139.7200 Buy Now
Vyrian Other Function Semiconductors 54
RFQ

Part Details for S24SE05006PDFA

S24SE05006PDFA CAD Models

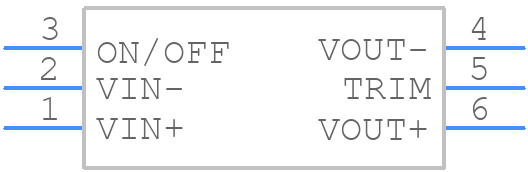

  • Part Symbol

    Part Symbol

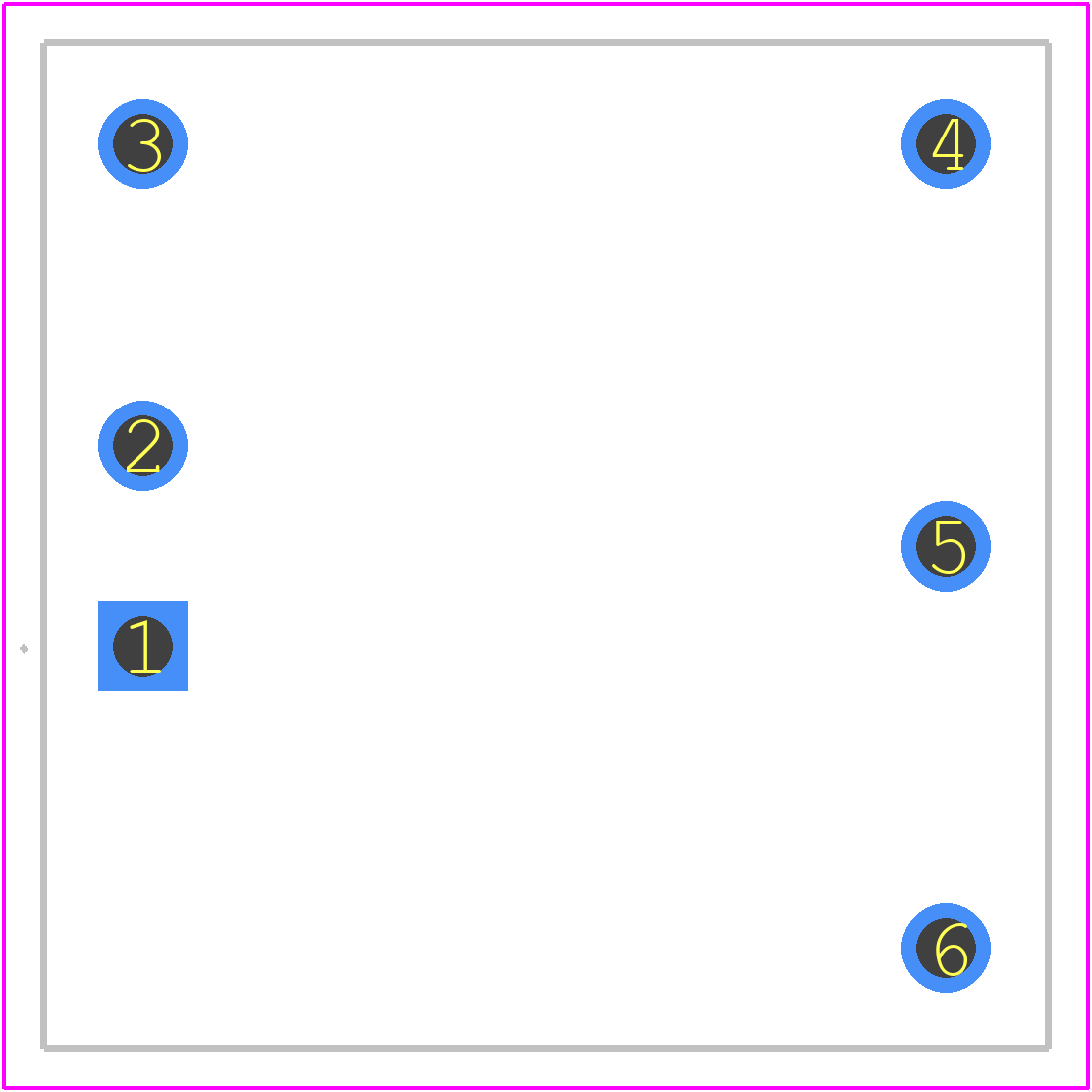

  • Footprint

    footprint

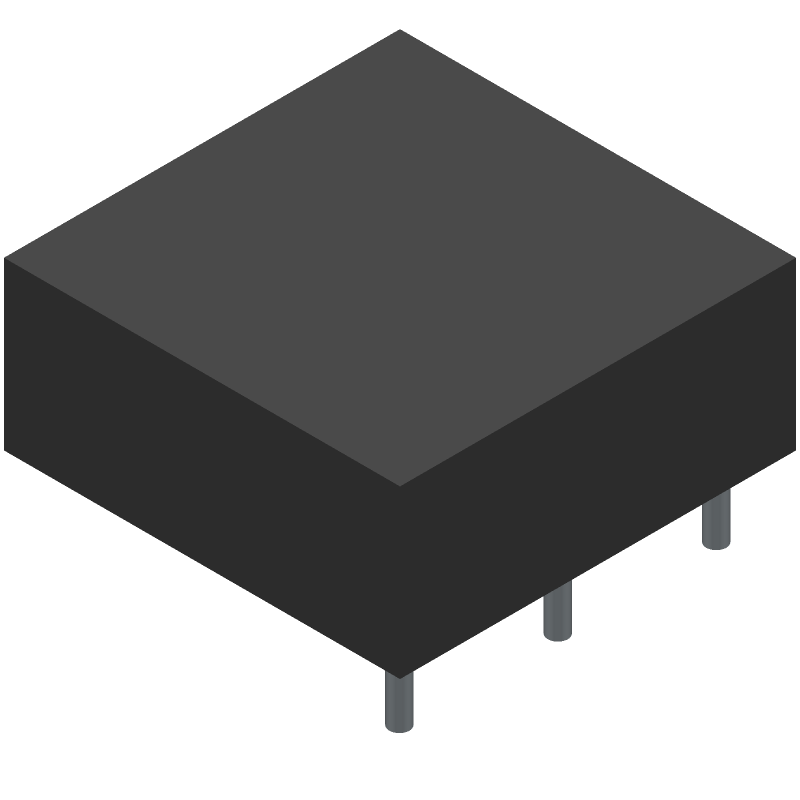

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

S24SE05006PDFA Part Data Attributes

Parametric Data
S24SE05006PDFA Delta Electronics Inc
Buy Now Datasheet
Compare Parts:
S24SE05006PDFA Delta Electronics Inc DC-DC Regulated Power Supply Module, 1 Output, 30W, Hybrid, PACKAGE-6
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer DELTA ELECTRONICS INC
Package Description PACKAGE-6
Reach Compliance Code compliant
ECCN Code EAR99
Samacsys Manufacturer Delta Electronics
Analog IC - Other Type DC-DC REGULATED POWER SUPPLY MODULE
Input Voltage-Max 36 V
Input Voltage-Min 9 V
Input Voltage-Nom 24 V
JESD-30 Code S-MDMA-P6
JESD-609 Code e3
Length 25.4 mm
Number of Functions 1
Number of Outputs 1
Number of Terminals 6
Operating Temperature-Max 56 °C
Operating Temperature-Min -40 °C
Output Voltage-Max 5.5 V
Output Voltage-Min 4.5 V
Output Voltage-Nom 5 V
Package Body Material METAL
Package Code DMA
Package Shape SQUARE
Package Style MICROELECTRONIC ASSEMBLY
Seated Height-Max 10.7 mm
Surface Mount NO
Technology HYBRID
Temperature Grade OTHER
Terminal Finish MATTE TIN OVER NICKEL
Terminal Form PIN/PEG
Terminal Position DUAL
Total Power Output-Max 30 W
Trim/Adjustable Output YES
Width 25.4 mm

S24SE05006PDFA Related Parts

S24SE05006PDFA Frequently Asked Questions (FAQ)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended for optimal thermal performance. The datasheet provides a recommended PCB layout, but it's essential to follow good thermal design practices to ensure the device operates within its specified temperature range.

  • To ensure reliable start-up and shutdown, it's essential to follow the recommended soft-start and shutdown procedures outlined in the datasheet. This includes using a soft-start circuit to limit the inrush current and ensuring the input voltage is stable before enabling the converter.

  • Operating the converter in a high-temperature environment can reduce its reliability and lifespan. It's essential to ensure the device operates within its specified temperature range (–40°C to +85°C) and to consider derating the output power and current ratings accordingly.

  • To troubleshoot issues with the output voltage regulation, check the input voltage, output load, and feedback circuitry. Ensure the feedback resistors are correctly selected, and the output voltage is within the specified range. Also, verify that the converter is not operating in a fault condition, such as overcurrent or overvoltage protection.

  • The S24SE05006PDFA is designed to meet CISPR 22 Class B and FCC Part 15 Class B EMI standards. To ensure compliance, follow good EMI design practices, such as using a metal enclosure, shielding, and filtering, and ensuring the PCB layout is optimized for EMI reduction.
