Diodes / Transient Suppressors / SM05T1G
Datasheets
SM05T1G by:

ESD Protection Dual Common Anode Diodes 5.0 V, SOT-23 (TO-236) 3 LEAD, 3000-REEL

Part Details for SM05T1G by onsemi

Results Overview of SM05T1G by onsemi

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research Computing and Data Storage Smart Cities

SM05T1G Information

SM05T1G by onsemi is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.

A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.

Price & Stock for SM05T1G

Part # Distributor Description Stock Price Buy
DISTI # 10N9611
Newark Tvs Diode Array, 300W, 5V, Sot-23, Product Range:-, Diode Case Style:Sot-23, No. Of Pins:3Pins, Operating Temperature Max:150°C, Automotive Qualification Standard:Aec-Q101, Breakdown Voltage Vbr:6.8V, Capacitance, Cd:225Pf Rohs Compliant: Yes |Onsemi SM05T1G RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 4695
  • 1 $0.0630
  • 25 $0.0630
  • 50 $0.0630
  • 100 $0.0630
  • 250 $0.0630
  • 500 $0.0630
  • 1,000 $0.0580
$0.0580 / $0.0630 Buy Now
DISTI # 45J2269
Newark Tvs Diode Array, 300W, 5V, Sot-23, Full Reel, Product Range:-, Diode Case Style:Sot-23, Operating Temperature Max:150°C, Diode Mounting:Surface Mount, Qualification:Aec-Q101, Diode Configuration:Common Anode, Msl:Msl 1 - Unlimited Rohs Compliant: Yes |Onsemi SM05T1G RoHS: Compliant Min Qty: 6000 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 6,000 $0.0600
  • 12,000 $0.0560
$0.0560 / $0.0600 Buy Now
DISTI # SM05T1G
Avnet Americas ESD Suppressor Diode Array Dual Common Anode Bi-Dir/Uni-Dir ?15kV@Air Gap/?26kV@Contact Disc 3-Pin SOT-23 T/R - Tape and Reel (Alt: SM05T1G) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 8 Weeks, 0 Days Container: Reel 51000
  • 3,000 $0.0445
  • 6,000 $0.0428
  • 12,000 $0.0413
  • 18,000 $0.0399
  • 24,000 $0.0386
$0.0386 / $0.0445 Buy Now
DISTI # 10N9611
Avnet Americas ESD Suppressor Diode Array Dual Common Anode Bi-Dir/Uni-Dir ?15kV@Air Gap/?26kV@Contact Disc 3-Pin SOT-23 T/R - Product that comes on tape, but is not reeled (Alt: 10N9611) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Container: Ammo Pack 4695 Partner Stock
  • 1 $0.0880
  • 25 $0.1700
  • 50 $0.1430
  • 100 $0.1150
  • 250 $0.1020
$0.0880 / $0.1700 Buy Now
DISTI # 70300571
RS SM05T1G, Dual Uni-Directional TVS Diode, 300W, 3-Pin SOT-23 | ON Semiconductor SM05T1G RoHS: Not Compliant Min Qty: 200 Package Multiple: 1 Container: Bulk 0
  • 200 $0.2060
$0.2060 RFQ
Bristol Electronics   5218
RFQ
Bristol Electronics   1028
RFQ
Rochester Electronics SM05 - Trans Voltage Suppressor Diode, 300W, 5V, Unidirectional, 2 Element, TO-236AB RoHS: Compliant Status: Active Min Qty: 1 6311
  • 1 $0.0482
  • 25 $0.0472
  • 100 $0.0453
  • 500 $0.0434
  • 1,000 $0.0410
$0.0410 / $0.0482 Buy Now
DISTI # SM05T1G
TME Diode: TVS array, 6.7V, 17A, 300W, double,common anode, SOT23-3 Min Qty: 1 2738
  • 1 $0.2047
  • 10 $0.1350
  • 100 $0.0911
  • 500 $0.0705
  • 1,000 $0.0582
  • 3,000 $0.0556
  • 6,000 $0.0535
$0.0535 / $0.2047 Buy Now
Ameya Holding Limited SM05T1 Series 7.3 V 300 W Transient Voltage Suppressor Diode Array - SOT-23-3 33000
RFQ
ComSIT USA TRANSIENT VOLTAGE SUPPRESSOR DIODE ARRAY Trans Voltage Suppressor Diode, 300W, 5V V(RWM), Unidirectional, 2 Element, Silicon, TO-236AB RoHS: Compliant ECCN: EAR99 Stock DE - 785
Stock ES - 0
Stock US - 0
Stock MX - 0
Stock CN - 0
Stock HK - 0
RFQ
DISTI # SM05T1G
Richardson RFPD TVS RoHS: Compliant Min Qty: 15000 0
  • 15,000 $0.0400
$0.0400 Buy Now
DISTI # SMC-SM05T1G
Sensible Micro Corporation Esd Suppressor Diode Tvs Uni-Dir/Bi-Dir 5V 6.75Vbr 9.8Vc 3-Pin Sot-23 T/R RoHS: Compliant Min Qty: 25 Lead time: 0 Weeks, 1 Days Date Code: 1031 Container: Tape & Reel 2500
  • 100 $0.0393
  • 500 $0.0383
  • 1,000 $0.0363
$0.0363 / $0.0393 RFQ
DISTI # SMC-SM05T1G
Sensible Micro Corporation Esd Suppressor Diode Tvs Uni-Dir/Bi-Dir 5V 6.75Vbr 9.8Vc 3-Pin Sot-23 T/R RoHS: Compliant Min Qty: 25 Lead time: 0 Weeks, 1 Days Date Code: 10+ Container: Tape & Reel 1000
  • 100 $0.0393
  • 500 $0.0383
  • 1,000 $0.0363
$0.0363 / $0.0393 RFQ
Chip 1 Exchange INSTOCK 8508
RFQ
DISTI # SM05T1G
Avnet Asia ESD Suppressor Diode Array Dual Common Anode Bi-Dir/Uni-Dir ?15kV@Air Gap/?26kV@Contact Disc 3-Pin SOT-23 T/R (Alt: SM05T1G) RoHS: Compliant Min Qty: 15000 Package Multiple: 3000 Lead time: 8 Weeks, 0 Days 0
  • 15,000 $0.0457
  • 30,000 $0.0451
  • 45,000 $0.0445
  • 75,000 $0.0439
  • 150,000 $0.0428
  • 375,000 $0.0418
  • 750,000 $0.0408
$0.0408 / $0.0457 Buy Now
DISTI # SM05T1G
Avnet Silica ESD Suppressor Diode Array Dual Common Anode BiDirUniDir 15kVAir Gap26kVContact Disc 3Pin SOT23 TR (Alt: SM05T1G) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 9 Weeks, 0 Days Silica - 9000
Buy Now
DISTI # SM05T1G
EBV Elektronik ESD Suppressor Diode Array Dual Common Anode BiDirUniDir 15kVAir Gap26kVContact Disc 3Pin SOT23 TR (Alt: SM05T1G) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 10 Weeks, 0 Days EBV - 0
Buy Now
Flip Electronics Stock, ship today 15000
RFQ
LCSC 17A 9.8V 300W 6.2V Unidirectional 5V SOT-23 ESD and Surge Protection (TVS/ESD) ROHS 71060
  • 5 $0.1143
  • 50 $0.0941
  • 150 $0.0840
  • 500 $0.0764
  • 3,000 $0.0614
  • 6,000 $0.0584
$0.0584 / $0.1143 Buy Now
New Advantage Corporation SM05T1 Series 7.3 V 300 W Transient Voltage Suppressor Diode Array - SOT-23-3 RoHS: Compliant Min Qty: 1 Package Multiple: 3000 1215000
  • 3,000 $0.0636
  • 1,215,000 $0.0593
$0.0593 / $0.0636 Buy Now
Vyrian Diodes 116243
RFQ
Win Source Electronics ESD Suppressor Diode TVS Uni-Dir/Bi-Dir 5V Automotive 3-Pin SOT-23 T/R / TVS DIODE 5VWM 9.8VC SOT23 356000
  • 505 $0.0996
  • 1,225 $0.0818
  • 1,895 $0.0792
  • 2,610 $0.0767
  • 3,375 $0.0741
  • 4,520 $0.0664
$0.0664 / $0.0996 Buy Now

Part Details for SM05T1G

SM05T1G CAD Models

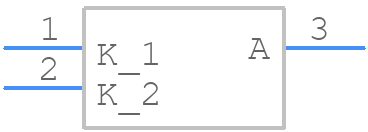

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

SM05T1G Part Data Attributes

Parametric Data
SM05T1G onsemi
Buy Now Datasheet
Compare Parts:
SM05T1G onsemi ESD Protection Dual Common Anode Diodes 5.0 V, SOT-23 (TO-236) 3 LEAD, 3000-REEL
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer ONSEMI
Part Package Code SOT-23 (TO-236) 3 LEAD
Package Description TO-236, 3 PIN
Pin Count 3
Manufacturer Package Code 318
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8541.10.00.50
Samacsys Manufacturer onsemi
Breakdown Voltage-Max 7.3 V
Breakdown Voltage-Min 6.2 V
Breakdown Voltage-Nom 6.7 V
Clamping Voltage-Max 9.8 V
Configuration COMMON ANODE, 2 ELEMENTS
Diode Element Material SILICON
Diode Type TRANS VOLTAGE SUPPRESSOR DIODE
JEDEC-95 Code TO-236AB
JESD-30 Code R-PDSO-G3
JESD-609 Code e3
Moisture Sensitivity Level 1
Non-rep Peak Rev Power Dis-Max 300 W
Number of Elements 2
Number of Terminals 3
Operating Temperature-Max 150 °C
Operating Temperature-Min -55 °C
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 260
Polarity UNIDIRECTIONAL
Power Dissipation-Max 0.225 W
Qualification Status Not Qualified
Reference Standard IEC-61000-4-2, 4-4, 4-5
Rep Pk Reverse Voltage-Max 5 V
Surface Mount YES
Technology AVALANCHE
Terminal Finish Matte Tin (Sn) - annealed
Terminal Form GULL WING
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 40

Alternate Parts for SM05T1G

This table gives cross-reference parts and alternative options found for SM05T1G. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SM05T1G, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
SM05.TCT Semtech Corporation $0.2743 Trans Voltage Suppressor Diode, 300W, 5V V(RWM), Unidirectional, 2 Element, Silicon, LEAD FREE PACKAGE-3 SM05T1G vs SM05.TCT
SM05-7 Diodes Incorporated $0.0897 Trans Voltage Suppressor Diode, 300W, 5V V(RWM), Unidirectional, 2 Element, Silicon, GREEN, PLASTIC PACKAGE-3 SM05T1G vs SM05-7
SM05 Micro Commercial Components Check for Price Trans Voltage Suppressor Diode, 300W, 5V V(RWM), Unidirectional, 2 Element, Silicon, PLASTIC PACKAGE-3 SM05T1G vs SM05
ESDA6V1L-TP Micro Commercial Components $0.2968 Trans Voltage Suppressor Diode, 300W, Unidirectional, 2 Element, Silicon, PLASTIC PACKAGE-3 SM05T1G vs ESDA6V1L-TP
SM05-TP Micro Commercial Components Check for Price Trans Voltage Suppressor Diode, 300W, 5V V(RWM), Unidirectional, 2 Element, Silicon, ROHS COMPLIANT, PLASTIC PACKAGE-3 SM05T1G vs SM05-TP
SM05 Microsemi Corporation Check for Price Trans Voltage Suppressor Diode, 300W, 5V V(RWM), Unidirectional, 2 Element, Silicon, PLASTIC PACKAGE-3 SM05T1G vs SM05
SM05T1 onsemi Check for Price 300W, UNIDIRECTIONAL, 2 ELEMENT, SILICON, TVS DIODE, TO-236AB, PLASTIC, CASE 318-08, TO-236, 3 PIN SM05T1G vs SM05T1
SM05 Semtech Corporation Check for Price Trans Voltage Suppressor Diode, 300W, 5V V(RWM), Unidirectional, 2 Element, Silicon, SM05T1G vs SM05

SM05T1G Related Parts

SM05T1G Frequently Asked Questions (FAQ)

  • The recommended PCB footprint for the SM05T1G is a rectangular pad with a size of 1.3 mm x 0.8 mm, with a 0.5 mm diameter hole in the center for the device's thermal pad.

  • To ensure reliable soldering of the SM05T1G, use a soldering iron with a temperature of 250°C to 270°C, and apply a small amount of solder paste to the PCB pads. Avoid applying excessive heat or pressure, which can damage the device.

  • The maximum allowed voltage on the SM05T1G's input pins is 6.5V, exceeding which can cause permanent damage to the device.

  • To handle ESD protection for the SM05T1G, use a wrist strap or anti-static mat when handling the device, and ensure that the PCB design includes ESD protection components such as TVS diodes or ESD arrays.

  • The thermal resistance of the SM05T1G is 25°C/W, which means that for every 1W of power dissipation, the junction temperature will increase by 25°C.
