SN65HVD1781D by: Texas Instruments

70-V Fault-Protected RS-485 Transceivers 8-SOIC -40 to 125

Part Details for SN65HVD1781D by Texas Instruments

Overview of SN65HVD1781D by Texas Instruments

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Internet of Things (IoT) Environmental Monitoring Space Technology Industrial Automation Financial Technology (Fintech) Smart Cities Transportation and Logistics Agriculture Technology Virtual Reality (VR), Augmented Reality (AR), and Vision Systems Medical Imaging Automotive Education and Research Consumer Electronics Security and Surveillance Audio and Video Systems Computing and Data Storage Aerospace and Defense Healthcare Renewable Energy Electronic Manufacturing Communication and Networking Robotics and Drones

Price & Stock for SN65HVD1781D

Part # Distributor Description Stock Price Buy
DISTI # 28AH4898
Newark Ic, Transceivers Rs485, Device Type:Rs485 Transceiver, Ic Interface Type:Rs485, No. Of Drivers:1Drivers, No. Of Receivers:1Receivers, Supply Voltage Min:3.15V, Supply Voltage Max:5.5V, Driver Case Style:Soic, No. Of Pins:8Pins, Rohs Compliant: Yes |Texas Instruments SN65HVD1781D RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 360
  • 1 $7.0800
  • 10 $6.6700
  • 25 $6.3000
  • 50 $6.0200
  • 150 $5.7700
  • 300 $5.4900
  • 525 $5.4000
$5.4000 / $7.0800 Buy Now
DISTI # SN65HVD1781D
TME IC: interface, transceiver, half duplex,RS485, 1000kbps, SOIC8 Min Qty: 1 0
  • 1 $6.2900
  • 10 $4.9800
  • 25 $4.4900
  • 75 $3.9800
  • 300 $3.9500
$3.9500 / $6.2900 RFQ
DISTI # C1S746201467973
Chip1Stop Drivers, Receivers, and Transceivers RoHS: Compliant pbFree: Yes Container: Tube 384
  • 1 $3.2200
  • 10 $3.2000
  • 50 $3.1200
  • 300 $3.1100
$3.1100 / $3.2200 Buy Now
LCSC Transceiver 1Mbps SOIC-8 RS-485 / RS-422 ICs ROHS 15
  • 1 $1.3391
  • 10 $1.3076
  • 30 $1.2871
  • 100 $1.2667
$1.2667 / $1.3391 Buy Now
Win Source Electronics IC TXRX RS485 FAULT-PROT 8-SOIC 58984
  • 90 $0.5867
  • 185 $0.5489
  • 285 $0.5300
  • 410 $0.4921
  • 530 $0.4732
  • 665 $0.4543
$0.4543 / $0.5867 Buy Now

Part Details for SN65HVD1781D

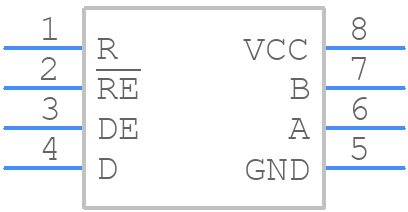

SN65HVD1781D CAD Models

SN65HVD1781D Part Data Attributes

SN65HVD1781D Texas Instruments
Buy Now Datasheet
Compare Parts:
SN65HVD1781D Texas Instruments 70-V Fault-Protected RS-485 Transceivers 8-SOIC -40 to 125
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer TEXAS INSTRUMENTS INC
Part Package Code SOIC
Package Description GREEN, PLASTIC, MS-012AA, SOIC-8
Pin Count 8
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Samacsys Manufacturer Texas Instruments
Differential Output YES
Driver Number of Bits 1
Input Characteristics DIFFERENTIAL SCHMITT TRIGGER
Interface IC Type LINE TRANSCEIVER
Interface Standard EIA-485-A; TIA-485-A
JESD-30 Code R-PDSO-G8
JESD-609 Code e4
Length 4.9 mm
Moisture Sensitivity Level 1
Number of Functions 1
Number of Terminals 8
Operating Temperature-Max 125 °C
Operating Temperature-Min -40 °C
Out Swing-Min 0.85 V
Output Characteristics DIFFERENTIAL
Output Low Current-Max 0.008 A
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP8,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Receive Delay-Max 200 ns
Receiver Number of Bits 1
Seated Height-Max 1.75 mm
Supply Current-Max 6 mA
Supply Voltage-Max 5.5 V
Supply Voltage-Min 3.15 V
Supply Voltage-Nom 5 V
Supply Voltage1-Max 5.5 V
Supply Voltage1-Min 3.15 V
Supply Voltage1-Nom 5 V
Surface Mount YES
Temperature Grade AUTOMOTIVE
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Transmit Delay-Max 200 ns
Width 3.9 mm

Alternate Parts for SN65HVD1781D

This table gives cross-reference parts and alternative options found for SN65HVD1781D. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SN65HVD1781D, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
SN65HVD1786D Texas Instruments $2.1412 70-V Fault-Protected RS-485 with -20 to +25 common mode 8-SOIC -40 to 105 SN65HVD1781D vs SN65HVD1786D
Part Number Manufacturer Composite Price Description Compare
SN65HVD1781DRG4 Texas Instruments Check for Price 70-V Fault-Protected RS-485 Transceivers 8-SOIC -40 to 125 SN65HVD1781D vs SN65HVD1781DRG4
SN65HVD1781DG4 Texas Instruments $4.4711 70-V Fault-Protected RS-485 Transceivers 8-SOIC -40 to 125 SN65HVD1781D vs SN65HVD1781DG4
SN65HVD1786DR Texas Instruments $3.3466 70-V Fault-Protected RS-485 with -20 to +25 common mode 8-SOIC -40 to 105 SN65HVD1781D vs SN65HVD1786DR
SN65HVD1781DR Texas Instruments $2.7189 70-V Fault-Protected RS-485 Transceivers 8-SOIC -40 to 125 SN65HVD1781D vs SN65HVD1781DR
SN65HVD1781QDRQ1 Texas Instruments $2.7794 Automotive Catalog 70-V Fault-Protected RS-485 Transceivers 8-SOIC -40 to 125 SN65HVD1781D vs SN65HVD1781QDRQ1
SN65HVD1786DRG4 Texas Instruments Check for Price 70-V Fault-Protected RS-485 with -20 to +25 common mode 8-SOIC -40 to 105 SN65HVD1781D vs SN65HVD1786DRG4
ADM4852ARZ-REEL7 Analog Devices Inc $2.3294 5 V, ⅛ Load, Slew-Rate Limited, RS-485/RS-422 Transceiver (Half Duplex, 2.5 Mbps) SN65HVD1781D vs ADM4852ARZ-REEL7
ADM4856ARZ Analog Devices Inc $2.1624 5 V, ⅛ Load, Slew-Rate Limited, RS-485/RS-422 Transceiver (Full Duplex, 2.5 Mbps) SN65HVD1781D vs ADM4856ARZ
V62/13620-01XE Texas Instruments Check for Price Fault-Protected RS-485 Transceiver With Extended Common-Mode Range 14-SOIC -40 to 105 SN65HVD1781D vs V62/13620-01XE
ADM4856ARZ-REEL7 Analog Devices Inc Check for Price 5 V, ⅛ Load, Slew-Rate Limited, RS-485/RS-422 Transceiver (Full Duplex, 2.5 Mbps) SN65HVD1781D vs ADM4856ARZ-REEL7
