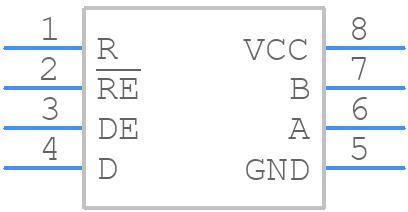

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SN65HVD20DR by Texas Instruments
Overview of SN65HVD20DR by Texas Instruments
- Distributor Offerings:
- Number of FFF Equivalents:
- CAD Models:
- Number of Functional Equivalents:
- Part Data Attributes
- Reference Designs:
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Price & Stock for SN65HVD20DR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
33AH4747
|
Newark | Rs485 Transceiver, 25Mbps, Soic-8, Device Type:Rs485 Transceiver, Ic Interface Type:Rs485, No. Of Drivers:1Drivers, No. Of Receivers:1Receivers, Supply Voltage Min:4.5V, Supply Voltage Max:5.5V, Driver Case Style:Soic, No. Of Rohs Compliant: Yes |TEXAS INSTRUMENTS SN65HVD20DR Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 0 |
|
$3.8200 / $4.9400 | Buy Now |
|
DISTI #
296-41389-1-ND
|
DigiKey | IC TRANSCEIVER HALF 1/1 8SOIC Min Qty: 1 Lead time: 6 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
3604 In Stock |
|
$2.0929 / $4.1700 | Buy Now |
|
DISTI #
595-SN65HVD20DR
|
Mouser Electronics | RS-485 Interface IC Extended Common-mode Transceiver RoHS: Compliant | 5184 |
|
$2.0900 / $4.1600 | Buy Now |
|
|
Quest Components | Line Transceiver, 1-Driver, 1-Receiver, 8 Pin, Plastic, SOP | 1513 |
|
$6.1995 / $12.3990 | Buy Now |
|
|
Rochester Electronics | SN65HVD20 Extended Common-mode RS-485 Transceiver RoHS: Compliant Status: Active Min Qty: 1 | 2 |
|
$1.9300 / $2.2700 | Buy Now |
|
|
Ameya Holding Limited | SOIC 8/I°/EXTENDED COMMON-MODE RS-485 TRANSCEIVER | 12244 |
|
RFQ | |
|
|
CHIPMALL.COM LIMITED | IC TRANSCEIVER HALF 1/1 8SOIC | 2635 |
|
$1.1043 / $1.7330 | Buy Now |
|
DISTI #
3121359RL
|
element14 Asia-Pacific | RS485 TRANSCEIVER, 25MBPS, SOIC-8 RoHS: Compliant Min Qty: 100 Container: Reel | 0 |
|
$2.3215 / $3.2251 | Buy Now |
|
DISTI #
3121359
|
element14 Asia-Pacific | RS485 TRANSCEIVER, 25MBPS, SOIC-8 RoHS: Compliant Min Qty: 1 Container: Cut Tape | 0 |
|
$2.3215 / $4.3785 | Buy Now |
|
DISTI #
3121359
|
Farnell | RS485 TRANSCEIVER, 25MBPS, SOIC-8 RoHS: Compliant Min Qty: 1 Lead time: 40 Weeks, 1 Days Container: Cut Tape | 0 |
|
$2.2207 / $4.6798 | Buy Now |
Part Details for SN65HVD20DR
SN65HVD20DR CAD Models
SN65HVD20DR Part Data Attributes
|
|
SN65HVD20DR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
SN65HVD20DR
Texas Instruments
Extended Common-mode RS-485 Transceiver 8-SOIC -40 to 85
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SOIC | |
| Package Description | SOP, SOP8,.25 | |
| Pin Count | 8 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Differential Output | YES | |
| Driver Number of Bits | 1 | |
| High Level Input Current-Max | 0.0001 A | |
| Input Characteristics | DIFFERENTIAL SCHMITT TRIGGER | |
| Interface IC Type | LINE TRANSCEIVER | |
| Interface Standard | EIA-485-A; TIA-485-A | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e4 | |
| Length | 4.9 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Out Swing-Min | 1.8 V | |
| Output Characteristics | 3-STATE | |
| Output Low Current-Max | 0.0001 A | |
| Output Polarity | COMPLEMENTARY | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Receive Delay-Max | 35 ns | |
| Receiver Number of Bits | 1 | |
| Seated Height-Max | 1.75 mm | |
| Supply Current-Max | 9 mA | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 4.5 V | |
| Supply Voltage-Nom | 5 V | |
| Supply Voltage1-Max | 5.5 V | |
| Supply Voltage1-Min | 4.5 V | |
| Supply Voltage1-Nom | 5 V | |
| Surface Mount | YES | |
| Technology | BICMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Transmit Delay-Max | 20 ns | |
| Width | 3.9 mm |
