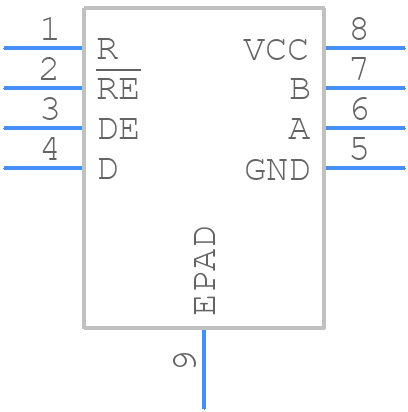

Part Symbol
-
Footprint
-

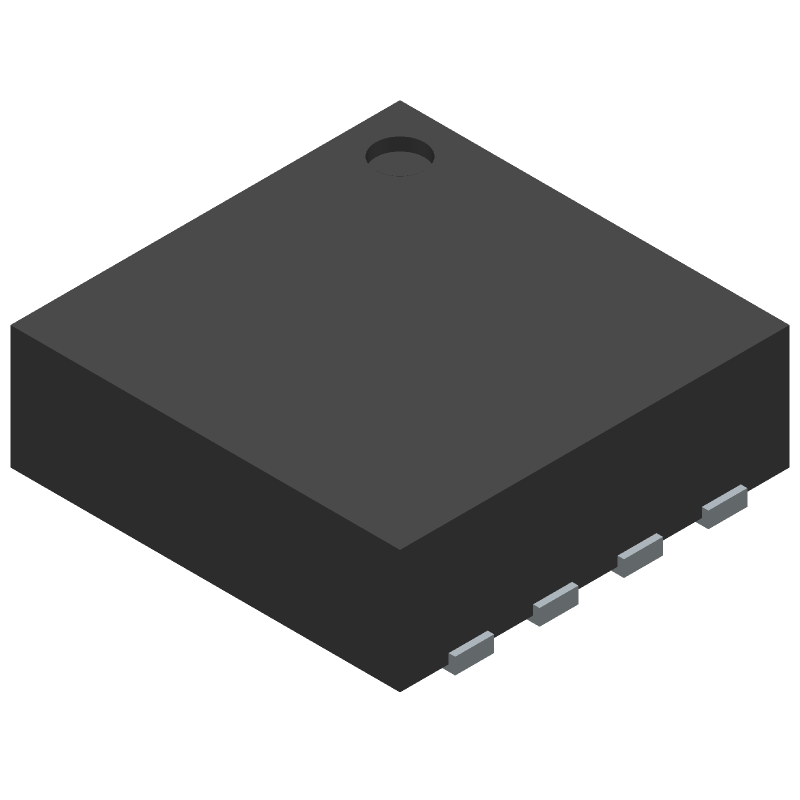

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SN65HVD72DRBR by Texas Instruments
Results Overview of SN65HVD72DRBR by Texas Instruments
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (1 option)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Financial Technology (Fintech)
Automotive
SN65HVD72DRBR Information
SN65HVD72DRBR by Texas Instruments is a Line Driver or Receiver.
Line Driver or Receivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for SN65HVD72DRBR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
SN65HVD72DRBR
|
TME | IC: interface, transceiver, half duplex,RS485, 250kbps, SON8 Min Qty: 1 | 239 |
|
$1.6200 / $2.8300 | Buy Now |
|
|
NexGen Digital | 8998 |
|
RFQ | ||
|
|
Chip 1 Exchange | INSTOCK | 400 |
|
RFQ | |
|
|
LCSC | Transceiver 250Kbps SON-8(3x3) RS-485 / RS-422 ICs ROHS | 1642 |
|
$0.9605 / $1.7062 | Buy Now |
|
|
Vyrian | Interface ICs | 11928 |
|
RFQ | |
|
|
Win Source Electronics | IC TRANSCEIVER HALF 1/1 8SON | 19820 |
|
$0.8392 / $1.0839 | Buy Now |
Part Details for SN65HVD72DRBR
SN65HVD72DRBR CAD Models
SN65HVD72DRBR Part Data Attributes
|
|
SN65HVD72DRBR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
SN65HVD72DRBR
Texas Instruments
3.3-V half-duplex RS-485 with IEC ESD, 250 kbps 8-SON -40 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Differential Output | YES | |
| Driver Number of Bits | 1 | |
| Input Characteristics | DIFFERENTIAL SCHMITT TRIGGER | |
| Interface IC Type | LINE TRANSCEIVER | |
| Interface Standard | EIA-422; EIA-485 | |
| JESD-30 Code | S-PDSO-N8 | |
| JESD-609 Code | e4 | |
| Length | 3 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Out Swing-Min | 1.5 V | |
| Output Low Current-Max | 0.008 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HVSON | |
| Package Equivalence Code | SOLCC8,.12,25 | |
| Package Shape | SQUARE | |
| Package Style | SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Receive Delay-Max | 100 ns | |
| Receiver Number of Bits | 1 | |
| Seated Height-Max | 1 mm | |
| Supply Current-Max | 0.95 mA | |
| Supply Voltage-Max | 3.6 V | |
| Supply Voltage-Min | 3 V | |
| Supply Voltage-Nom | 3.3 V | |
| Supply Voltage1-Max | 3.6 V | |
| Supply Voltage1-Min | 3 V | |
| Supply Voltage1-Nom | 3.3 V | |
| Surface Mount | YES | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Transmit Delay-Max | 1000 ns | |
| Width | 3 mm |
Alternate Parts for SN65HVD72DRBR
This table gives cross-reference parts and alternative options found for SN65HVD72DRBR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SN65HVD72DRBR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| SN65HVD72DRBT | Texas Instruments | $1.8763 | 3.3-V half-duplex RS-485 with IEC ESD, 250 kbps 8-SON -40 to 125 | SN65HVD72DRBR vs SN65HVD72DRBT |
