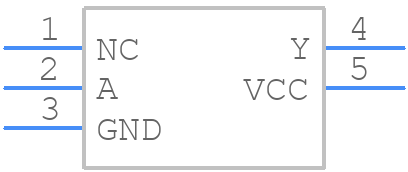

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SN74AHC1G14DBVR by Texas Instruments
Results Overview of SN74AHC1G14DBVR by Texas Instruments
- Distributor Offerings: (19 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (8 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
SN74AHC1G14DBVR Information
SN74AHC1G14DBVR by Texas Instruments is a Gate.
Gates are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for SN74AHC1G14DBVR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
33AH4808
|
Newark | 74Ahc Single Gate, Smd, 74Ahc1G14, Logic Family/Base Number:74Ahc1G14, Logic Type:Inverter Schmitt Trigger, Output Current:8Ma, No. Of Inputs:1, Supply Voltage Min:2V, Supply Voltage Max:5.5V, Logic Case Style:Sot-23, No. Of Rohs Compliant: Yes |Texas Instruments SN74AHC1G14DBVR RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 11398 |
|
$0.0580 / $0.3020 | Buy Now |
|
|
Bristol Electronics | 26356 |
|
RFQ | ||
|
|
Bristol Electronics | 18000 |
|
RFQ | ||
|
|
Bristol Electronics | 12336 |
|
RFQ | ||
|
|
Bristol Electronics | Min Qty: 34 | 7580 |
|
$0.0300 / $0.1500 | Buy Now |
|
DISTI #
SN74AHC1G14DBVR
|
TME | IC: digital, NOT, Ch: 1, SMD, SOT23-5, 2÷5.5VDC, -40÷125°C, reel,tape Min Qty: 1 | 3060 |
|
$0.0359 / $0.5289 | Buy Now |
|
|
Ameya Holding Limited | IC: digital, inverter,Schmitt trigger, NOT, Channels: 1, IN: 1, SMD | 1794154 |
|
RFQ | |
|
|
ComSIT USA | Inverter, AHC/VHC/H/U/V Series, 1-Func, 1-Input, CMOS, PDSO5 RoHS: Compliant |
|
|
RFQ | |
|
DISTI #
SMC-SN74AHC1G14DBVR
|
Sensible Micro Corporation | AS6081 Certified Vendor, 1 Yr Warranty RoHS: Not Compliant Min Qty: 25 Lead time: 2 Weeks, 0 Days | 2766 |
|
RFQ | |
|
DISTI #
SMC-SN74AHC1G14DBVR
|
Sensible Micro Corporation | Inverter Schmitt Trigger 1-Element Cmos 5-Pin Sot-23 T/R RoHS: Not Compliant Min Qty: 25 Lead time: 0 Weeks, 1 Days Date Code: 03+ Container: Tape & Reel | 2100 |
|
$0.0254 / $0.0275 | RFQ |
Part Details for SN74AHC1G14DBVR
SN74AHC1G14DBVR CAD Models
SN74AHC1G14DBVR Part Data Attributes
|
|
SN74AHC1G14DBVR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
SN74AHC1G14DBVR
Texas Instruments
Single 2-V to 5.5-V inverter with Schmitt-Trigger inputs 5-SOT-23 -40 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SOT-23 | |
| Package Description | GREEN, PLASTIC, SOT-23, 5 PIN | |
| Pin Count | 5 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Date Of Intro | 1996-05-01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Family | AHC/VHC/H/U/V | |
| JESD-30 Code | R-PDSO-G5 | |
| JESD-609 Code | e4 | |
| Length | 2.9 mm | |
| Load Capacitance (CL) | 50 pF | |
| Logic IC Type | INVERTER | |
| Max I(ol) | 0.008 A | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Inputs | 1 | |
| Number of Terminals | 5 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Characteristics | 3-STATE | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LSSOP | |
| Package Equivalence Code | TSOP5/6,.11,37 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, LOW PROFILE, SHRINK PITCH | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power Supply Current-Max (ICC) | 0.01 mA | |
| Prop. Delay@Nom-Sup | 12 ns | |
| Propagation Delay (tpd) | 18.5 ns | |
| Qualification Status | Not Qualified | |
| Schmitt Trigger | YES | |
| Seated Height-Max | 1.45 mm | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 2 V | |
| Supply Voltage-Nom (Vsup) | 3.3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.95 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Width | 1.6 mm |
Alternate Parts for SN74AHC1G14DBVR
This table gives cross-reference parts and alternative options found for SN74AHC1G14DBVR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SN74AHC1G14DBVR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| SN74AHC1G14DBV | Texas Instruments | Check for Price | AHC SERIES, 1-INPUT INVERT GATE, PDSO5, PLASTIC, SOT-5 | SN74AHC1G14DBVR vs SN74AHC1G14DBV |
| SN74AHC1G14DBVRE4 | Texas Instruments | $0.1186 | Single 2-V to 5.5-V inverter with Schmitt-Trigger inputs 5-SOT-23 -40 to 125 | SN74AHC1G14DBVR vs SN74AHC1G14DBVRE4 |
| SN74AHC1G14DBVRG4 | Texas Instruments | $0.0844 | Single 2-V to 5.5-V inverter with Schmitt-Trigger inputs 5-SOT-23 -40 to 125 | SN74AHC1G14DBVR vs SN74AHC1G14DBVRG4 |
| TC7SH14FTE85L | Toshiba America Electronic Components | Check for Price | IC HC/UH SERIES, 1-INPUT INVERT GATE, PDSO5, SSOP-5, Gate | SN74AHC1G14DBVR vs TC7SH14FTE85L |
| 74AHC1G14GV,125 | Nexperia | Check for Price | 74AHC1G14; 74AHCT1G14 - Inverting Schmitt trigger@en-us TSOP 5-Pin | SN74AHC1G14DBVR vs 74AHC1G14GV,125 |
| MC74VHC1G14DTT1G | onsemi | $0.2282 | Single Inverter, Schmitt Trigger Input, TSOP-5, 3000-REEL | SN74AHC1G14DBVR vs MC74VHC1G14DTT1G |
| TC7S14F(TE12L) | Toshiba America Electronic Components | Check for Price | IC HC/UH SERIES, 1-INPUT INVERT GATE, PDSO5, PLASTIC, SSOP-5, Gate | SN74AHC1G14DBVR vs TC7S14F(TE12L) |
| TC7S14F | Toshiba America Electronic Components | Check for Price | IC HC/UH SERIES, 1-INPUT INVERT GATE, PDSO5, 0.95 MM PITCH, PLASTIC, SSOP-5, Gate | SN74AHC1G14DBVR vs TC7S14F |
