Datasheets
SN74HC86N by:

4-ch, 2-input, 2-V to 6-V 5.2 mA drive strength XOR (exclusive OR) gate 14-PDIP -40 to 85

Part Details for SN74HC86N by Texas Instruments

Results Overview of SN74HC86N by Texas Instruments

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Industrial Automation Robotics and Drones

SN74HC86N Information

SN74HC86N by Texas Instruments is a Gate.
Gates are under the broader part category of Logic Components.

Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.

Available Datasheets

Part # Manufacturer Description Datasheet
SN74HC86N Texas Instruments Quadruple 2-Input Exclusive-OR Gates 14-PDIP -40 to 85
SN74HC86NSR Texas Instruments Quadruple 2-Input Exclusive-OR Gates 14-SO -40 to 85
SN74HC86NE4 Texas Instruments Quadruple 2-Input Exclusive-OR Gates 14-PDIP -40 to 85

Price & Stock for SN74HC86N

Part # Distributor Description Stock Price Buy
DISTI # 29AH7565
Newark Ic, Quad 2-Input Xor, 74Hc86, Logic Family/Base Number:74Hc86, Logic Type:Xor, Output Current:5.2Ma, No. Of Inputs:2, Supply Voltage Min:2V, Supply Voltage Max:6V, Logic Case Style:Dip, No. Of Pins:14Pins, Logic Ic Family:74Hc, Rohs Compliant: Yes |Texas Instruments SN74HC86N RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 825
  • 1 $0.9150
  • 10 $0.5880
  • 100 $0.4820
  • 500 $0.4620
  • 1,000 $0.4440
  • 3,000 $0.4270
  • 10,000 $0.4160
$0.4160 / $0.9150 Buy Now
Bristol Electronics   Min Qty: 9 3647
  • 9 $0.6000
  • 35 $0.3900
  • 130 $0.2250
  • 446 $0.1920
  • 965 $0.1680
  • 2,293 $0.1560
$0.1560 / $0.6000 Buy Now
Bristol Electronics   375
RFQ
Rochester Electronics SN74HC86 Quadruple 2-Input Exclusive-OR Gates RoHS: Compliant Status: Active Min Qty: 1 138355
  • 1 $0.4014
  • 25 $0.3934
  • 100 $0.3773
  • 500 $0.3613
  • 1,000 $0.3412
$0.3412 / $0.4014 Buy Now
DISTI # SN74HC86N
TME IC: digital, XOR, Ch: 4, IN: 2, THT, DIP14, 2÷6VDC, HC Min Qty: 1 852
  • 1 $0.6200
  • 5 $0.5800
  • 25 $0.5430
  • 100 $0.4960
  • 250 $0.4120
  • 1,000 $0.3880
$0.3880 / $0.6200 Buy Now
DISTI # C1S746200016444
Chip One Stop XOR Gate 4-Element 2-IN CMOS 14-Pin PDIP Tube RoHS: Compliant pbFree: Yes Container: Tube 745
  • 1 $0.8290
  • 10 $0.5380
  • 50 $0.4570
  • 100 $0.4380
  • 200 $0.4150
  • 500 $0.4110
$0.4110 / $0.8290 Buy Now
Component Electronics, Inc IN STOCK SHIP TODAY 94
  • 1 $2.3100
  • 100 $1.7300
  • 1,000 $1.5000
$1.5000 / $2.3100 Buy Now
LCSC 2V6V 2uA 4 17ns6V50pF XORGate DIP-14 Logic Gates ROHS 12
  • 1 $1.0659
  • 10 $0.8792
  • 25 $0.7497
  • 100 $0.6571
  • 500 $0.6016
  • 1,000 $0.5723
$0.5723 / $1.0659 Buy Now
Win Source Electronics QUADRUPLE 2-INPUT EXCLUSIVE-OR GATES | IC GATE XOR 4CH 2-INP 14DIP 2320
  • 90 $0.5757
  • 190 $0.5386
  • 290 $0.5200
  • 415 $0.4829
  • 540 $0.4643
  • 675 $0.4458
$0.4458 / $0.5757 Buy Now

Part Details for SN74HC86N

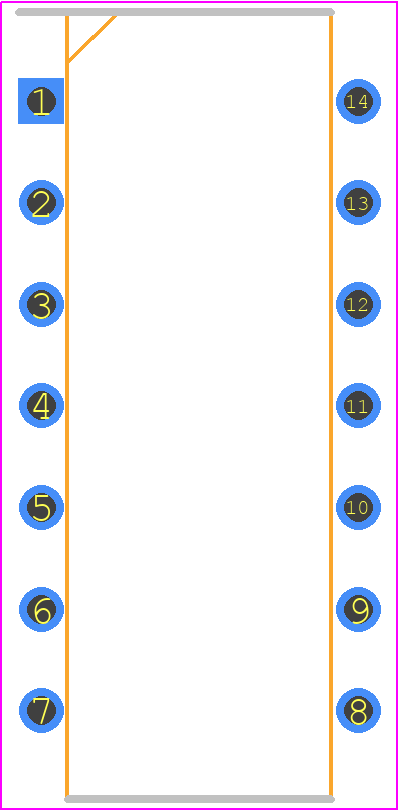

SN74HC86N CAD Models

SN74HC86N Part Data Attributes

SN74HC86N Texas Instruments
Buy Now Datasheet
Compare Parts:
SN74HC86N Texas Instruments 4-ch, 2-input, 2-V to 6-V 5.2 mA drive strength XOR (exclusive OR) gate 14-PDIP -40 to 85
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer TEXAS INSTRUMENTS INC
Part Package Code DIP
Pin Count 14
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Samacsys Manufacturer Texas Instruments
Family HC/UH
JESD-30 Code R-PDIP-T14
JESD-609 Code e4
Length 19.305 mm
Load Capacitance (CL) 50 pF
Logic IC Type XOR GATE
Max I(ol) 0.0052 A
Number of Functions 4
Number of Inputs 2
Number of Terminals 14
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP14,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Packing Method TUBE
Power Supply Current-Max (ICC) 0.02 mA
Prop. Delay@Nom-Sup 25 ns
Propagation Delay (tpd) 125 ns
Qualification Status Not Qualified
Schmitt Trigger NO
Seated Height-Max 5.08 mm
Supply Voltage-Max (Vsup) 6 V
Supply Voltage-Min (Vsup) 2 V
Supply Voltage-Nom (Vsup) 5 V
Surface Mount NO
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Width 7.62 mm

Alternate Parts for SN74HC86N

This table gives cross-reference parts and alternative options found for SN74HC86N. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SN74HC86N, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
SNJ54HC86J-00 Texas Instruments Check for Price HC/UH SERIES, QUAD 2-INPUT XOR GATE, CDIP14 SN74HC86N vs SNJ54HC86J-00
74HC86N,652 NXP Semiconductors Check for Price 74HC86N SN74HC86N vs 74HC86N,652
MM74HC86J Texas Instruments Check for Price HC/UH SERIES, QUAD 2-INPUT XOR GATE, CDIP14, CERDIP-14 SN74HC86N vs MM74HC86J
MC74HC86ND Motorola Semiconductor Products Check for Price XOR Gate, HC/UH Series, 4-Func, 2-Input, CMOS, PDIP14, PLASTIC, DIP-14 SN74HC86N vs MC74HC86ND
CD74HC86EE4 Texas Instruments Check for Price 4-ch, 2-input, 2-V to 6-V XOR (exclusive OR) gates 14-PDIP -55 to 125 SN74HC86N vs CD74HC86EE4
M74HC86F1 STMicroelectronics Check for Price HC/UH SERIES, QUAD 2-INPUT XOR GATE, CDIP14, FRIT SEALED, CERAMIC, DIP-14 SN74HC86N vs M74HC86F1
MM74HC86N Fairchild Semiconductor Corporation Check for Price XOR Gate, HC/UH Series, 4-Func, 2-Input, CMOS, PDIP14, 0.300 INCH, PLASTIC, MS-001, DIP-14 SN74HC86N vs MM74HC86N
M54HC86D STMicroelectronics Check for Price HC/UH SERIES, QUAD 2-INPUT XOR GATE, CDIP14, CERAMIC, DIP-14 SN74HC86N vs M54HC86D
CD74HC86E General Electric Solid State Check for Price Gate, SN74HC86N vs CD74HC86E
Part Number Manufacturer Composite Price Description Compare
GD74HC86 Goldstar Electron Co Ltd Check for Price XOR Gate, HC/UH Series, 4-Func, 2-Input, CMOS, PDIP14, SN74HC86N vs GD74HC86
74HC86D-Q100,118 NXP Semiconductors Check for Price 74HC(T)86-Q100 - Quad 2-input EXCLUSIVE-OR gate SOIC 14-Pin SN74HC86N vs 74HC86D-Q100,118
MC74AC86DCR1 Motorola Semiconductor Products Check for Price XOR Gate, AC Series, 4-Func, 2-Input, CMOS, PDSO14, PLASTIC, SOIC-14 SN74HC86N vs MC74AC86DCR1
CD74AC86M96G4 Texas Instruments Check for Price AC SERIES, QUAD 2-INPUT XOR GATE, PDSO14, GREEN, PLASTIC, SOIC-14 SN74HC86N vs CD74AC86M96G4
CD54HC86F3A Harris Semiconductor Check for Price XOR Gate, HC/UH Series, 4-Func, 2-Input, CMOS, CDIP14 SN74HC86N vs CD54HC86F3A
CD74HC86EX Harris Semiconductor Check for Price XOR Gate, HC/UH Series, 4-Func, 2-Input, CMOS, PDIP14 SN74HC86N vs CD74HC86EX
MC54HC86JD Motorola Semiconductor Products Check for Price XOR Gate, HC/UH Series, 4-Func, 2-Input, CMOS, CDIP14, CERAMIC, DIP-14 SN74HC86N vs MC54HC86JD
SN74HC86N-10 Texas Instruments Check for Price HC/UH SERIES, QUAD 2-INPUT XOR GATE, PDIP14 SN74HC86N vs SN74HC86N-10
MC74HC86ANG onsemi Check for Price IC HC/UH SERIES, QUAD 2-INPUT XOR GATE, PDIP14, HALOGEN FREE AND ROHS COMPLIANT, PLASTIC, DIP-14, Gate SN74HC86N vs MC74HC86ANG
MM74HC86J National Semiconductor Corporation Check for Price IC HC/UH SERIES, QUAD 2-INPUT XOR GATE, CDIP14, CERDIP-14, Gate SN74HC86N vs MM74HC86J

SN74HC86N Related Parts

SN74HC86N Frequently Asked Questions (FAQ)

  • The maximum frequency of operation for the SN74HC86N is typically around 100 MHz, but this can vary depending on the specific application and operating conditions.

  • To ensure proper operation, the SN74HC86N should be powered with a stable voltage supply between 2V and 6V, and decoupling capacitors (e.g. 0.1uF) should be placed as close as possible to the device to filter out noise and reduce electromagnetic interference (EMI).

  • The SN74HC86N can sink or source up to 25mA of current per output, but this should be limited to 15mA per output for reliable operation.

  • The SN74HC86N has a maximum junction temperature of 150°C. To prevent overheating, ensure good airflow around the device, and consider using a heat sink if the device will be operating at high frequencies or with high currents.

  • Yes, the SN74HC86N can be used in a 5V system, but ensure that the input and output voltage levels are within the recommended operating range of 2V to 6V.
