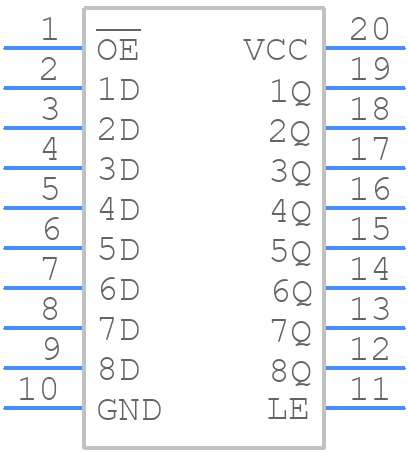

Part Symbol
-

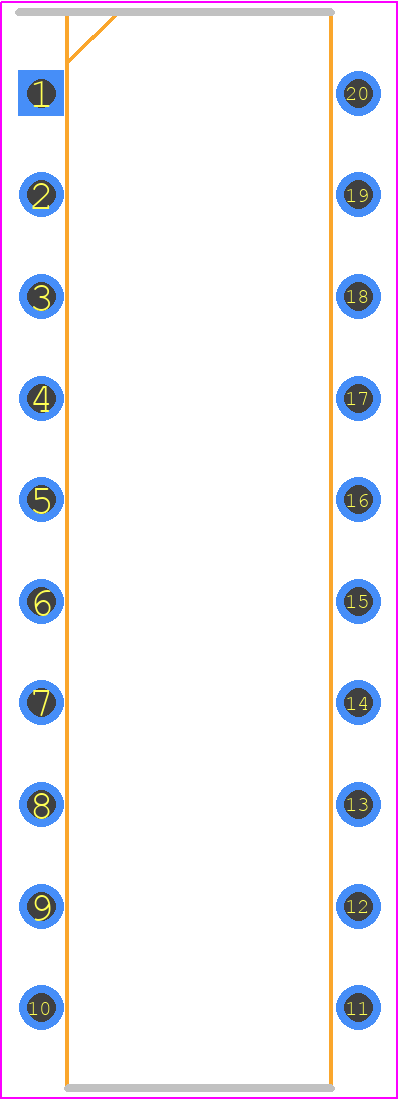

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SN74HCT573N by Texas Instruments
Overview of SN74HCT573N by Texas Instruments
- Distributor Offerings:
- Number of FFF Equivalents:
- CAD Models:
- Number of Functional Equivalents:
- Part Data Attributes
- Reference Designs:
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Internet of Things (IoT)
Telecommunications
Communication and Networking
Price & Stock for SN74HCT573N
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
26AJ9343
|
Newark | Ic, Octal D-Type Latch, 74Hct573, Logic Family/Base Number:74Hct573, Latch Type:D Type Transparent, Ic Output Type:Tri State Non Inverted, Propagation Delay:27Ns, Output Current:6Ma, Logic Case Style:Dip, No. Of Pins:20Pins, Supplyrohs Compliant: Yes |TEXAS INSTRUMENTS SN74HCT573N Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$0.7460 / $1.0500 | Buy Now |
|
DISTI #
296-1621-5-ND
|
DigiKey | IC D-TYPE TRANSP SGL 8:8 20DIP Min Qty: 1 Lead time: 6 Weeks Container: Tube |
3353 In Stock |
|
$0.4500 / $1.1200 | Buy Now |
|
DISTI #
595-SN74HCT573N
|
Mouser Electronics | Latches Tri-St Octal D-Type RoHS: Compliant | 10269 |
|
$0.4320 / $1.0800 | Buy Now |
|
DISTI #
V99:2348_07344814
|
Arrow Electronics | Latch Transparent 3-ST 8-CH D-Type 20-Pin PDIP Tube Min Qty: 1 Package Multiple: 1 Lead time: 6 Weeks Date Code: 2315 | Americas - 211 |
|
$0.4298 / $1.0402 | Buy Now |
|
DISTI #
69781603
|
Verical | Latch Transparent 3-ST 8-CH D-Type 20-Pin PDIP Tube Min Qty: 14 Package Multiple: 1 Date Code: 2315 | Americas - 211 |
|
$0.4298 / $0.8804 | Buy Now |
|
|
Bristol Electronics | 3 |
|
RFQ | ||
|
|
Bristol Electronics | 25 |
|
RFQ | ||
|
DISTI #
45090
|
Jameco Electronics | IC 74HCT573 Tri-State Octal D-type Transparent Latch Min Qty: 1 Container: Each | 408 |
|
$0.5500 / $0.7900 | Buy Now |
|
|
Quest Components | Latch, Single, 8 Bit, 20 Pin, Plastic, DIP | 50 |
|
$0.6075 / $1.0125 | Buy Now |
|
DISTI #
SN74HCT573N
|
TME | IC: digital, D-latch transparent, Ch: 8, CMOS,TTL, 4.5÷5.5VDC, THT Min Qty: 1 | 1671 |
|
$0.4910 / $0.8210 | Buy Now |
Part Details for SN74HCT573N
SN74HCT573N CAD Models
SN74HCT573N Part Data Attributes
|
|
SN74HCT573N
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
SN74HCT573N
Texas Instruments
Octal Transparent D-Type Latches With 3-State Outputs 20-PDIP -40 to 85
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | DIP | |
| Package Description | ROHS COMPLIANT, PLASTIC, DIP-20 | |
| Pin Count | 20 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Control Type | ENABLE LOW | |
| Count Direction | UNIDIRECTIONAL | |
| Family | HCT | |
| JESD-30 Code | R-PDIP-T20 | |
| JESD-609 Code | e4 | |
| Length | 25.4 mm | |
| Load Capacitance (CL) | 50 pF | |
| Logic IC Type | BUS DRIVER | |
| Max I(ol) | 0.006 A | |
| Number of Bits | 8 | |
| Number of Functions | 8 | |
| Number of Ports | 2 | |
| Number of Terminals | 20 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Characteristics | 3-STATE | |
| Output Polarity | TRUE | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | DIP | |
| Package Equivalence Code | DIP20,.3 | |
| Package Shape | RECTANGULAR | |
| Package Style | IN-LINE | |
| Packing Method | TUBE | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Power Supply Current-Max (ICC) | 0.08 mA | |
| Prop. Delay@Nom-Sup | 44 ns | |
| Propagation Delay (tpd) | 65 ns | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 5.08 mm | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 4.5 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | NO | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Pitch | 2.54 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Width | 7.62 mm |
