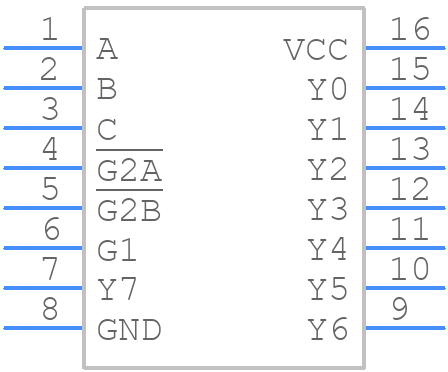

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SN74LS138N by Texas Instruments
Results Overview of SN74LS138N by Texas Instruments
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (9 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
SN74LS138N Information
SN74LS138N by Texas Instruments is a Decoder/Driver.
Decoder/Drivers are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| SN74LS138NSR | Texas Instruments | 3-line to 8-line decoder / demultiplexer 16-SO 0 to 70 | |
| SN74LS138NE4 | Texas Instruments | 3-line to 8-line decoder / demultiplexer 16-PDIP 0 to 70 | |
| SN74LS138N | Texas Instruments | 3-line to 8-line decoder / demultiplexer 16-PDIP 0 to 70 |
Price & Stock for SN74LS138N
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
37AJ1131
|
Newark | Logic, 3-8 Line Decoder/Demux, 16Dip, Logic Family/Base Number:74Ls138, Logic Type:3-To-8 Line Decoder/Demultiplexer, No. Of Channels:8Channels, Line Configuration:3:8, Supply Voltage Min:4.75V, Supply Voltage Max:5.25V, Logic Rohs Compliant: Yes |Texas Instruments SN74LS138N RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$0.9210 / $2.0800 | Buy Now |
|
|
Bristol Electronics | 379 |
|
RFQ | ||
|
|
Bristol Electronics | 94 |
|
RFQ | ||
|
|
Bristol Electronics | 1 |
|
RFQ | ||
|
DISTI #
SN74LS138N
|
TME | IC: digital, 3 to 8 line,decoder,demultiplexer, THT, DIP16, 74LS Min Qty: 1 | 658 |
|
$0.4750 / $0.7800 | Buy Now |
|
|
ComSIT USA | 3-LINE TO 8-LINE DECODER/DEMULTIPLEXER Decoder/Driver, LS Series, Inverted Output, TTL, PDIP16 ECCN: EAR99 RoHS: Compliant |
|
|
RFQ | |
|
DISTI #
SMC-SN74LS138N
|
Sensible Micro Corporation | XIC 74LS138 RoHS: Compliant Min Qty: 25 Lead time: 0 Weeks, 1 Days Date Code: 1723 Container: Tubes | 130 |
|
RFQ | |
|
DISTI #
SN74LS138N
|
Chip One Stop | Semiconductors RoHS: Compliant Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Tube | 532 |
|
$0.4300 / $0.5280 | Buy Now |
|
|
Win Source Electronics | IC DECODER/DEMUX 3-8LINE 16SO | 300 |
|
$0.5417 / $0.8124 | Buy Now |
Part Details for SN74LS138N
SN74LS138N CAD Models
SN74LS138N Part Data Attributes
|
|
SN74LS138N
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
SN74LS138N
Texas Instruments
3-line to 8-line decoder / demultiplexer 16-PDIP 0 to 70
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | DIP | |
| Pin Count | 16 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Additional Feature | 3 ENABLE INPUTS | |
| Family | LS | |
| Input Conditioning | STANDARD | |
| JESD-30 Code | R-PDIP-T16 | |
| JESD-609 Code | e4 | |
| Length | 19.305 mm | |
| Load Capacitance (CL) | 15 pF | |
| Logic IC Type | 3-LINE TO 8-LINE DECODER | |
| Max I(ol) | 0.008 A | |
| Number of Bits | 8 | |
| Number of Functions | 1 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Output Polarity | INVERTED | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | DIP | |
| Package Equivalence Code | DIP16,.3 | |
| Package Shape | RECTANGULAR | |
| Package Style | IN-LINE | |
| Packing Method | TUBE | |
| Power Supply Current-Max (ICC) | 10 mA | |
| Prop. Delay@Nom-Sup | 41 ns | |
| Propagation Delay (tpd) | 41 ns | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 5.08 mm | |
| Supply Voltage-Max (Vsup) | 5.25 V | |
| Supply Voltage-Min (Vsup) | 4.75 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | NO | |
| Technology | TTL | |
| Temperature Grade | COMMERCIAL | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Pitch | 2.54 mm | |
| Terminal Position | DUAL | |
| Width | 7.62 mm |
Alternate Parts for SN74LS138N
This table gives cross-reference parts and alternative options found for SN74LS138N. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SN74LS138N, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| GD54LS138 | Goldstar Electron Co Ltd | Check for Price | Decoder/Driver, LS Series, Inverted Output, TTL, PDIP16, | SN74LS138N vs GD54LS138 |
| SN74LS138NE4 | Texas Instruments | Check for Price | 3-line to 8-line decoder / demultiplexer 16-PDIP 0 to 70 | SN74LS138N vs SN74LS138NE4 |
| JM38510/30701SEA | Texas Instruments | Check for Price | 3-Line To 8-Line Decoders/Demultiplexers 16-CDIP -55 to 125 | SN74LS138N vs JM38510/30701SEA |
| SN74LS138NP3 | Texas Instruments | Check for Price | LS SERIES, OTHER DECODER/DRIVER, INVERTED OUTPUT, PDIP16, PLASTIC, MS-001BB, DIP-16 | SN74LS138N vs SN74LS138NP3 |
| SN74LS138NS | Motorola Semiconductor Products | Check for Price | Decoder/Driver, LS Series, Inverted Output, TTL, PDIP16, PLASTIC, DIP-16 | SN74LS138N vs SN74LS138NS |
| HD74LS138P | Hitachi Ltd | Check for Price | Decoder/Driver, LS Series, Inverted Output, TTL, PDIP16, DP-16 | SN74LS138N vs HD74LS138P |
| HD74LS138P | Renesas Electronics Corporation | Check for Price | LS SERIES, OTHER DECODER/DRIVER, INVERTED OUTPUT, PDIP16, DP-16 | SN74LS138N vs HD74LS138P |
| SN74LS138JD | Motorola Semiconductor Products | Check for Price | Decoder/Driver, LS Series, Inverted Output, TTL, CDIP16, CERAMIC, DIP-16 | SN74LS138N vs SN74LS138JD |
| SN74LS138ND | Motorola Semiconductor Products | Check for Price | Decoder/Driver, LS Series, Inverted Output, TTL, PDIP16, PLASTIC, DIP-16 | SN74LS138N vs SN74LS138ND |
SN74LS138N Frequently Asked Questions (FAQ)
-
The maximum frequency of operation for the SN74LS138N is typically around 20-25 MHz, but this can vary depending on the specific application and operating conditions.
-
To ensure proper operation, the SN74LS138N should be powered with a stable 5V supply, and decoupling capacitors (e.g. 0.1uF and 10uF) should be placed close to the device to filter out noise and reduce electromagnetic interference (EMI).
-
The SN74LS138N can sink up to 24mA and source up to 12mA per output, but it's recommended to keep the current within the absolute maximum ratings to ensure reliable operation.
-
The enable inputs (E1, E2, E3) should be driven with a valid logic level (either high or low) to enable or disable the decoder outputs. Floating or undefined enable inputs can cause unpredictable behavior.
-
The propagation delay of the SN74LS138N is typically around 10-15ns, but this can vary depending on the specific application and operating conditions.
