Inductors / Fixed Inductors / SRP4020TA-3R3M
Datasheets

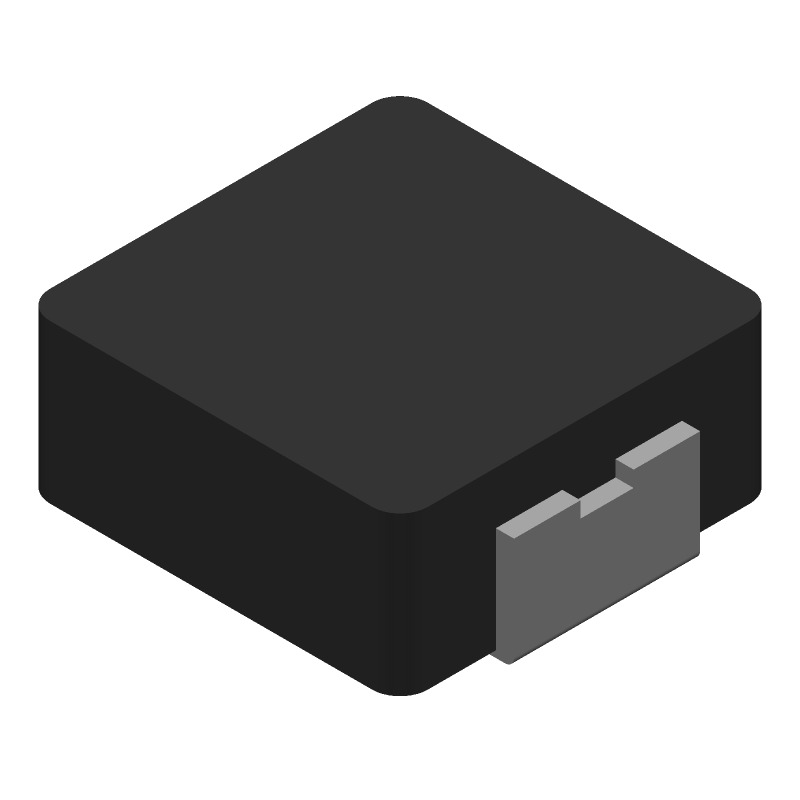

SRP4020TA-3R3M by: Bourns Inc

General Purpose Inductor, 3.3uH, 20%, 1 Element, Carbonyl Powder-Core, SMD, CHIP, 1816

Part Details for SRP4020TA-3R3M by Bourns Inc

Results Overview of SRP4020TA-3R3M by Bourns Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

SRP4020TA-3R3M Information

SRP4020TA-3R3M by Bourns Inc is a Fixed Inductor.
Fixed Inductors are under the broader part category of Inductors.

Inductors are passive components that resist sudden changes in current by storing and releasing energy in an electromagnetic fiel. They are often used in power circuits and energy storage. Read more about Inductors on our Inductors part category page.

Price & Stock for SRP4020TA-3R3M

Part # Distributor Description Stock Price Buy
DISTI # 79X2034
Newark Surface Mount Power Inductor, Aec-Q200 Srp4020Ta Series, 3.3 H, 20%, Shielded, 0.076 Ohm, 3.5 A Rohs Compliant: Yes |Bourns SRP4020TA-3R3M RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape 2910
  • 1 $1.3100
  • 10 $1.0000
  • 25 $0.9570
  • 50 $0.9130
  • 100 $0.8680
$0.8680 / $1.3100 Buy Now
DISTI # 78X2734
Newark Inductor, Shielded, 3.3Uh, 20%, 3.5A, Inductance:3.3Μh, Rms Current (Irms):3.5A, Inductor Construction:Shielded, Saturation Current (Isat):4A, Product Range:Srp4020Ta Series, Dc Resistance Max:0.076Ohm, Inductance Tolerance:± 20% Rohs Compliant: Yes |Bourns SRP4020TA-3R3M RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 3,000 $0.5410
$0.5410 Buy Now
DISTI # SRP4020TA-3R3M
Avnet Americas Power Inductor (SMD), 3.3 uH, ? 20%, 3.5 A, Shielded, 4 A, 4.45mm x 4.06mm x 1.8mm - Tape and Reel (Alt: SRP4020TA-3R3M) RoHS: Compliant Min Qty: 6000 Package Multiple: 3000 Lead time: 13 Weeks, 0 Days Container: Reel 0
  • 6,000 $0.4434
  • 12,000 $0.4411
  • 18,000 $0.4388
  • 30,000 $0.4366
  • 60,000 $0.4343
$0.4343 / $0.4434 Buy Now
DISTI # 70418817
RS Inductor, Power, Shielded, SMD, 3.3 uH, 4.0 A, 20% | Bourns SRP4020TA-3R3M RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 17 Weeks, 0 Days Container: Bulk 2960
  • 1 $1.0400
  • 5 $0.9600
  • 10 $0.9200
  • 100 $0.8300
  • 250 $0.7800
$0.7800 / $1.0400 Buy Now
Bristol Electronics   Min Qty: 4 1569
  • 4 $1.3125
  • 17 $0.8531
  • 60 $0.4922
  • 205 $0.4200
  • 442 $0.3675
  • 1,049 $0.3412
$0.3412 / $1.3125 Buy Now
DISTI # SRP4020TA-3R3M
Avnet Abacus Power Inductor SMD 33 uH 20 35 A Shielded 4 A 445mm x 406mm x 18mm - Tape and Reel (Alt: SRP4020TA-3R3M) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 16 Weeks, 0 Days Container: Reel Abacus - 0
Buy Now
DISTI # SRP4020TA-3R3M
Chip One Stop Passives RoHS: Compliant Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Cut Tape 674
  • 1 $0.8830
  • 10 $0.5360
  • 50 $0.5330
  • 100 $0.5320
  • 200 $0.5180
  • 1,000 $0.5160
$0.5160 / $0.8830 Buy Now
New Advantage Corporation IndPowerShieldedSMDCarbonylPowder3.3uH20%100KHz3.5AT&R RoHS: Compliant Min Qty: 1 Package Multiple: 3000 18000
  • 3,000 $0.7360
  • 18,000 $0.6810
$0.6810 / $0.7360 Buy Now
Vyrian Inductors 7259
RFQ

Part Details for SRP4020TA-3R3M

SRP4020TA-3R3M Part Data Attributes

Parametric Data
SRP4020TA-3R3M Bourns Inc
Buy Now Datasheet
Compare Parts:
SRP4020TA-3R3M Bourns Inc General Purpose Inductor, 3.3uH, 20%, 1 Element, Carbonyl Powder-Core, SMD, CHIP, 1816
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer BOURNS INC
Package Description CHIP
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8504.50.80.00
Factory Lead Time 13 Weeks
Samacsys Manufacturer Bourns
Case/Size Code 1816
Construction Rectangular
Core Material CARBONYL POWDER
DC Resistance 0.076 Ω
Inductance-Nom (L) 3.3 µH
Inductor Application POWER INDUCTOR
Inductor Type GENERAL PURPOSE INDUCTOR
JESD-609 Code e3
Number of Functions 1
Number of Terminals 2
Operating Temperature-Max 150 °C
Operating Temperature-Min -55 °C
Package Height 1.8 mm
Package Length 4.45 mm
Package Style SMT
Package Width 4.06 mm
Packing Method TR, Embossed , 13 Inch
Quality Factor-Min (at L-nom) 10
Rated Current-Max 3.5 A
Reference Standard AEC-Q200
Self Resonance Frequency 40 MHz
Shape/Size Description RECTANGULAR PACKAGE
Shielded YES
Surface Mount YES
Terminal Finish Tin (Sn)
Terminal Placement DUAL ENDED
Terminal Shape WRAPAROUND
Test Frequency 0.1 MHz
Tolerance 20%

SRP4020TA-3R3M Related Parts

SRP4020TA-3R3M Frequently Asked Questions (FAQ)

  • The recommended land pattern for the SRP4020TA-3R3M can be found in the Bourns application note AN204, which provides guidelines for PCB layout and land pattern design.

  • The SRP4020TA-3R3M has a maximum operating temperature of 125°C. To ensure reliable operation, it's essential to provide adequate heat dissipation through proper PCB design, thermal vias, and heat sinks if necessary.

  • The maximum current rating for the SRP4020TA-3R3M is 2A. However, it's essential to consider the derating curve and temperature coefficient to ensure the component operates within its specified limits.

  • The SRP4020TA-3R3M is designed for general-purpose use and may not be suitable for high-frequency applications. For high-frequency applications, consider using a component specifically designed for high-frequency use, such as the Bourns SRP1035A-3R3M.

  • To ensure the SRP4020TA-3R3M meets your specific application's requirements, review the datasheet and application notes, and consult with a Bourns representative or a qualified engineer to determine the component's suitability for your design.
