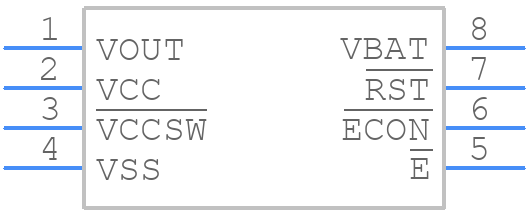

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for STM795SM6F by STMicroelectronics
Results Overview of STM795SM6F by STMicroelectronics
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (7 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Internet of Things (IoT)
Smart Cities
STM795SM6F Information
STM795SM6F by STMicroelectronics is a Power Management Circuit.
Power Management Circuits are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for STM795SM6F
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
51AC9584
|
Newark | Supervisor W/Sw Over, 2.925V, Soic-8, Threshold Voltage:2.925V, No. Of Supervisors/Monitors:1Monitors, Supply Voltage Min:1V, Supply Voltage Max:5.5V, Reset Type:Active-Low, Open-Drain, Digital Ic Case:Soic, No. Of Pins:8Pins, Rohs Compliant: Yes |Stmicroelectronics STM795SM6F RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 0 |
|
$1.8000 / $3.2700 | Buy Now |
|
DISTI #
STM795SM6F
|
Avnet Americas | Processor Supervisor 2.925V 1V to 5.5V 8-Pin SO N T/R - Tape and Reel (Alt: STM795SM6F) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 24 Weeks, 0 Days Container: Reel | 0 |
|
$0.8736 / $0.8918 | Buy Now |
|
|
STMicroelectronics | 3 V supervisor with battery switchover COO: Morocco RoHS: Compliant Min Qty: 1 | 5297 |
|
$1.6900 / $2.3000 | Buy Now |
|
|
Bristol Electronics | 73 |
|
RFQ | ||
|
|
Future Electronics | STM795 Series 2.925 V 140 ms 3 V Supervisor with Battery Switchover - SOIC-8 Min Qty: 2500 Package Multiple: 2500 |
5000 null |
|
$0.9100 | Buy Now |
|
|
Future Electronics | STM795 Series 2.925 V 140 ms 3 V Supervisor with Battery Switchover - SOIC-8 Min Qty: 2500 Package Multiple: 2500 |
2500 null |
|
$0.6200 / $0.6450 | Buy Now |
|
DISTI #
STM795SM6F
|
Avnet Silica | Processor Supervisor 2925V 1V to 55V 8Pin SO N TR (Alt: STM795SM6F) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 17 Weeks, 0 Days | Silica - 32500 |
|
Buy Now | |
|
DISTI #
STM795SM6F
|
EBV Elektronik | Processor Supervisor 2925V 1V to 55V 8Pin SO N TR (Alt: STM795SM6F) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 25 Weeks, 0 Days | EBV - 15000 |
|
Buy Now | |
|
|
LCSC | 200ms Active Low 1V5.5V 1 SOIC-8 Supervisor and Reset ICs ROHS | 27 |
|
$6.6609 / $7.2991 | Buy Now |
Part Details for STM795SM6F
STM795SM6F CAD Models
STM795SM6F Part Data Attributes
|
|
STM795SM6F
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
STM795SM6F
STMicroelectronics
3 V supervisor with battery switchover
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Part Package Code | SOIC | |
| Pin Count | 8 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 24 Weeks | |
| Samacsys Manufacturer | STMicroelectronics | |
| Additional Feature | RESET THRESHOLD VOLTAGE IS 2.925V | |
| Adjustable Threshold | NO | |
| Analog IC - Other Type | VOLTAGE SUPERVISOR/RESET IC | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e4 | |
| Length | 4.9 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Channels | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 mm | |
| Supply Current-Max (Isup) | 0.06 mA | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 1.1 V | |
| Supply Voltage-Nom (Vsup) | 3.6 V | |
| Surface Mount | YES | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Threshold Voltage-Nom | +2.925V | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3.9 mm |
