STP13N95K3 by: STMicroelectronics

N-channel 950 V, 0.68 Ohm typ., 10 A Zener-protected SuperMESH3(TM) Power MOSFET in TO-220

Part Details for STP13N95K3 by STMicroelectronics

Results Overview of STP13N95K3 by STMicroelectronics

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Audio and Video Systems

STP13N95K3 Information

STP13N95K3 by STMicroelectronics is a Power Field-Effect Transistor.
Power Field-Effect Transistors are under the broader part category of Transistors.

A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.

Price & Stock for STP13N95K3

Part # Distributor Description Stock Price Buy
DISTI # 94T3453
Newark Mosfet Transistor, N Channel, 10 A, 950 V, 0.68 Ohm, 10 V, 4 V Rohs Compliant: Yes |Stmicroelectronics STP13N95K3 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 204
  • 1 $5.1700
  • 10 $4.8500
  • 25 $4.5300
  • 50 $4.2100
  • 100 $3.9200
$3.9200 / $5.1700 Buy Now
DISTI # STP13N95K3
Avnet Americas Trans MOSFET N-CH 950V 10A 3-Pin(3+Tab) TO-220 Tube - Rail/Tube (Alt: STP13N95K3) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 13 Weeks, 0 Days Container: Tube 0
  • 1,000 $3.5544
  • 2,000 $3.4677
  • 4,000 $3.4259
  • 6,000 $3.3851
  • 8,000 $3.3453
$3.3453 / $3.5544 Buy Now
STMicroelectronics N-channel 950 V, 0.68 Ohm typ., 10 A Zener-protected SuperMESH3(TM) Power MOSFET in TO-220 RoHS: Compliant Min Qty: 1 379
  • 1 $4.7000
  • 10 $4.7000
  • 25 $3.4900
  • 100 $3.4900
  • 250 $3.4900
  • 500 $3.4900
$3.4900 / $4.7000 Buy Now
DISTI # STP13N95K3
TME Transistor: N-MOSFET, SuperMESH3™, unipolar, 950V, 6A, Idm: 40A Min Qty: 1 0
  • 1 $3.6900
  • 5 $3.3200
  • 25 $2.9300
  • 100 $2.6300
  • 500 $2.4500
$2.4500 / $3.6900 RFQ
ComSIT USA 950 V, 10 A N-CHANNEL POWER MOSFET Power Field-Effect Transistor, 10A I(D), 950V, 0.85ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-220AB RoHS: Compliant Stock DE - 150
Stock ES - 0
Stock US - 0
Stock MX - 0
Stock CN - 0
Stock HK - 0
RFQ
DISTI # STP13N95K3
Avnet Silica Trans MOSFET N-CH 950V 10A 3-Pin(3+Tab) TO-220 Tube (Alt: STP13N95K3) RoHS: Compliant Min Qty: 50 Package Multiple: 50 Lead time: 14 Weeks, 0 Days Silica - 350
Buy Now
DISTI # STP13N95K3
EBV Elektronik Trans MOSFET N-CH 950V 10A 3-Pin(3+Tab) TO-220 Tube (Alt: STP13N95K3) RoHS: Compliant Min Qty: 50 Package Multiple: 50 Lead time: 14 Weeks, 0 Days EBV - 0
Buy Now

Part Details for STP13N95K3

STP13N95K3 CAD Models

  • Part Symbol

    Part Symbol

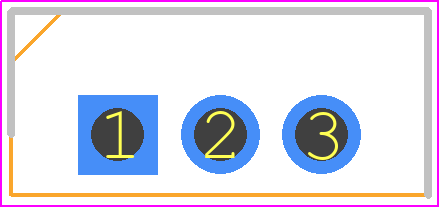

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

STP13N95K3 Part Data Attributes

Parametric Data
STP13N95K3 STMicroelectronics
Buy Now Datasheet
Compare Parts:
STP13N95K3 STMicroelectronics N-channel 950 V, 0.68 Ohm typ., 10 A Zener-protected SuperMESH3(TM) Power MOSFET in TO-220
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer STMICROELECTRONICS
Part Package Code TO-220AB
Package Description ROHS COMPLIANT, TO-220, 3 PIN
Pin Count 3
Reach Compliance Code compliant
ECCN Code EAR99
Factory Lead Time 13 Weeks
Samacsys Manufacturer STMicroelectronics
Additional Feature ULTRA-LOW RESISTANCE
Avalanche Energy Rating (Eas) 400 mJ
Configuration SINGLE WITH BUILT-IN DIODE
DS Breakdown Voltage-Min 950 V
Drain Current-Max (ID) 10 A
Drain-source On Resistance-Max 0.85 Ω
FET Technology METAL-OXIDE SEMICONDUCTOR
JEDEC-95 Code TO-220AB
JESD-30 Code R-PSFM-T3
Number of Elements 1
Number of Terminals 3
Operating Mode ENHANCEMENT MODE
Operating Temperature-Max 150 °C
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style FLANGE MOUNT
Peak Reflow Temperature (Cel) NOT SPECIFIED
Polarity/Channel Type N-CHANNEL
Power Dissipation-Max (Abs) 190 W
Pulsed Drain Current-Max (IDM) 40 A
Qualification Status Not Qualified
Surface Mount NO
Terminal Form THROUGH-HOLE
Terminal Position SINGLE
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Transistor Application SWITCHING
Transistor Element Material SILICON

Alternate Parts for STP13N95K3

This table gives cross-reference parts and alternative options found for STP13N95K3. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of STP13N95K3, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
STP10N62K3 STMicroelectronics Check for Price 8.4A, 620V, 0.75ohm, N-CHANNEL, Si, POWER, MOSFET, TO-220AB, ROHS COMPLIANT, TO-220, 3 PIN STP13N95K3 vs STP10N62K3
STP7NM60N STMicroelectronics Check for Price 5A, 600V, 0.9ohm, N-CHANNEL, Si, POWER, MOSFET, TO-220AB, ROHS COMPLIANT, TO-220, 3 PIN STP13N95K3 vs STP7NM60N
IRFSL4127PBF International Rectifier Check for Price Power Field-Effect Transistor, 72A I(D), 200V, 0.022ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-262AA, LEAD FREE, TO-262, 3 PIN STP13N95K3 vs IRFSL4127PBF
STP10NM60N STMicroelectronics $1.3801 N-channel 600 V, 0.53 Ohm typ., 10 A, MDmesh II Power MOSFET in TO-220 package STP13N95K3 vs STP10NM60N
STP12NM60N STMicroelectronics Check for Price 10A, 600V, 0.41ohm, N-CHANNEL, Si, POWER, MOSFET, TO-220AB, ROHS COMPLIANT, TO-220, 3 PIN STP13N95K3 vs STP12NM60N
STP80N20M5 STMicroelectronics Check for Price 65A, 200V, 0.02ohm, N-CHANNEL, Si, POWER, MOSFET, TO-220AB, ROHS COMPLIANT, TO-220, 3 PIN STP13N95K3 vs STP80N20M5
STP95N2LH5 STMicroelectronics Check for Price 95A, 25V, 0.007ohm, N-CHANNEL, Si, POWER, MOSFET, TO-220AB, ROHS COMPLIANT, TO-220, 3 PIN STP13N95K3 vs STP95N2LH5
STP19NM50N STMicroelectronics $0.9631 N-channel 500 V, 0.2 Ohm, 14 A MDmesh(TM) II Power MOSFET in TO-220 STP13N95K3 vs STP19NM50N
STP95N3LLH6 STMicroelectronics Check for Price N-channel 30 V, 4.2 mOhm typ., 80 A STripFET(TM) VI DeepGATE(TM) Power MOSFET in TO-220 package STP13N95K3 vs STP95N3LLH6
STP75NF20 STMicroelectronics $2.5808 N-channel 200 V, 0.028 Ohm typ., 75 A STripFET(TM) Power MOSFET in TO-220 package STP13N95K3 vs STP75NF20
