STR2550 by: STMicroelectronics

High voltage fast-switching PNP power transistor

Part Details for STR2550 by STMicroelectronics

Results Overview of STR2550 by STMicroelectronics

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

STR2550 Information

STR2550 by STMicroelectronics is a Small Signal Bipolar Transistor.
Small Signal Bipolar Transistors are under the broader part category of Transistors.

A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.

Price & Stock for STR2550

Part # Distributor Description Stock Price Buy
DISTI # 24AC0039
Newark Ptd High Voltage Rohs Compliant: Yes |Stmicroelectronics STR2550 RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Reel 24000
  • 3,000 $0.1670
  • 6,000 $0.1600
  • 12,000 $0.1530
  • 18,000 $0.1450
  • 30,000 $0.1360
$0.1360 / $0.1670 Buy Now
DISTI # 98Y2501
Newark Transistor, Pnp, 500V, 0.5A, Sot-23, Transistor Polarity:Pnp, Collector Emitter Voltage Max:500V, Continuous Collector Current:500Ma, Power Dissipation:500Mw, Transistor Mounting:Surface Mount, No. Of Pins:3Pins, Product Range:- Rohs Compliant: Yes |Stmicroelectronics STR2550 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape 3500
  • 1 $0.4410
  • 10 $0.3780
  • 25 $0.3430
  • 50 $0.3070
  • 100 $0.2720
  • 250 $0.2460
  • 500 $0.2190
  • 1,000 $0.1830
$0.1830 / $0.4410 Buy Now
DISTI # 86AK6518
Newark Transistor, Pnp, 500V, 0.5A, Sot-23 Rohs Compliant: Yes |Stmicroelectronics STR2550 RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 1 Container: Reel 0
  • 3,000 $0.1670
  • 6,000 $0.1610
  • 12,000 $0.1560
  • 18,000 $0.1490
  • 30,000 $0.1460
$0.1460 / $0.1670 Buy Now
DISTI # STR2550
Avnet Americas Trans GP BJT PNP 500V 0.5A 3-Pin SOT-23 T/R - Tape and Reel (Alt: STR2550) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 14 Weeks, 0 Days Container: Reel 21000
  • 3,000 $0.1485
  • 6,000 $0.1477
  • 12,000 $0.1133
  • 18,000 $0.1113
  • 24,000 $0.1093
$0.1093 / $0.1485 Buy Now
DISTI # 98Y2501
Avnet Americas Trans GP BJT PNP 500V 0.5A 3-Pin SOT-23 T/R - Product that comes on tape, but is not reeled (Alt: 98Y2501) RoHS: Compliant Min Qty: 5 Package Multiple: 5 Container: Ammo Pack 0
  • 5 $0.4260
  • 10 $0.3630
  • 20 $0.3280
  • 30 $0.2920
  • 40 $0.2570
$0.2570 / $0.4260 Buy Now
STMicroelectronics High voltage fast-switching PNP power transistor RoHS: Compliant Min Qty: 1 22648
  • 1 $0.6100
  • 10 $0.3700
  • 100 $0.2600
  • 500 $0.2000
$0.2000 / $0.6100 Buy Now
DISTI # STR2550
TME Transistor: PNP, bipolar, 500V, 0.5A, 0.5W, SOT23 Min Qty: 1 5634
  • 1 $0.4380
  • 10 $0.2920
  • 50 $0.2500
  • 100 $0.1980
  • 500 $0.1550
  • 1,000 $0.1410
  • 1,500 $0.1360
  • 3,000 $0.1180
  • 6,000 $0.1110
  • 9,000 $0.1040
$0.1040 / $0.4380 Buy Now
DISTI # STR2550
Avnet Silica Trans GP BJT PNP 500V 0.5A 3-Pin SOT-23 T/R (Alt: STR2550) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 15 Weeks, 0 Days Silica - 33000
Buy Now
DISTI # STR2550
EBV Elektronik Trans GP BJT PNP 500V 0.5A 3-Pin SOT-23 T/R (Alt: STR2550) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 15 Weeks, 0 Days EBV - 21000
Buy Now
LCSC 500V 500mW 10050mA10V 500mA PNP SOT-23 Bipolar (BJT) ROHS 2010
  • 5 $0.1776
  • 50 $0.1398
  • 150 $0.1188
  • 500 $0.1062
  • 3,000 $0.0953
  • 6,000 $0.0894
$0.0894 / $0.1776 Buy Now
Win Source Electronics TRANS PNP 500V 0.5A SOT-23 52518
  • 215 $0.2334
  • 525 $0.1916
  • 810 $0.1856
  • 1,115 $0.1796
  • 1,445 $0.1736
  • 1,930 $0.1556
$0.1556 / $0.2334 Buy Now

Part Details for STR2550

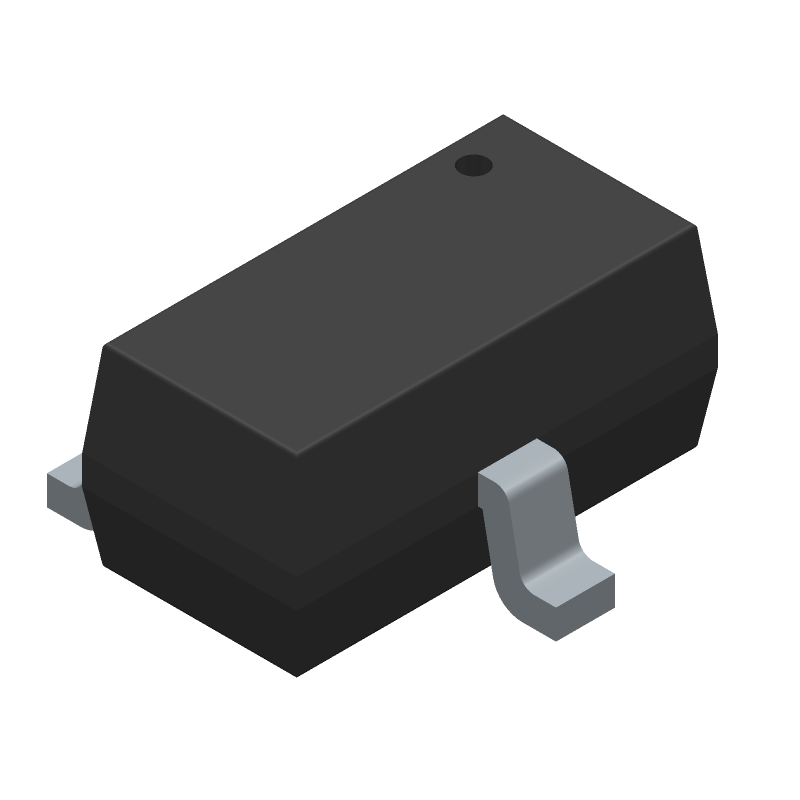

STR2550 CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

STR2550 Part Data Attributes

Parametric Data
STR2550 STMicroelectronics
Buy Now Datasheet
Compare Parts:
STR2550 STMicroelectronics High voltage fast-switching PNP power transistor
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer STMICROELECTRONICS
Reach Compliance Code compliant
ECCN Code EAR99
Samacsys Manufacturer STMicroelectronics
Collector Current-Max (IC) 0.5 A
Collector-Emitter Voltage-Max 500 V
Configuration SINGLE
DC Current Gain-Min (hFE) 10
JESD-30 Code R-PDSO-G3
JESD-609 Code e3
Moisture Sensitivity Level 1
Number of Elements 1
Number of Terminals 3
Operating Temperature-Max 150 °C
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 260
Polarity/Channel Type PNP
Power Dissipation-Max (Abs) 0.5 W
Surface Mount YES
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Transistor Application SWITCHING
Transistor Element Material SILICON
