STTH1506DPI by: STMicroelectronics

600 V, 15 A 2-lead tandem Hyperfast Boost Diode

Part Details for STTH1506DPI by STMicroelectronics

Results Overview of STTH1506DPI by STMicroelectronics

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Energy and Power Systems Renewable Energy

STTH1506DPI Information

STTH1506DPI by STMicroelectronics is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.

A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.

Price & Stock for STTH1506DPI

Part # Distributor Description Stock Price Buy
DISTI # 98Y2503
Newark Rectifier, 15A, 600V, Dop-3I, Repetitive Reverse Voltage Vrrm Max:600V, Forward Current If(Av):15A, Diode Configuration:Single, Forward Voltage Vf Max:3.6V, Reverse Recovery Time Trr Max:35Ns, Forward Surge Current Ifsm Max:130A, Rohs Compliant: Yes |Stmicroelectronics STTH1506DPI RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 409
  • 1 $6.8000
  • 10 $5.9300
  • 25 $5.0500
  • 50 $4.1800
  • 100 $3.8700
  • 250 $3.5700
$3.5700 / $6.8000 Buy Now
DISTI # STTH1506DPI
Avnet Americas Diode Switching 600V 15A 2-Pin(2+Tab) DOP3I Tube - Rail/Tube (Alt: STTH1506DPI) RoHS: Compliant Min Qty: 600 Package Multiple: 600 Lead time: 25 Weeks, 0 Days Container: Tube 0
  • 600 $3.5235
  • 1,200 $3.4693
  • 2,400 $3.4151
  • 3,600 $3.3609
  • 4,800 $3.3202
$3.3202 / $3.5235 Buy Now
STMicroelectronics 600 V, 15 A 2-lead tandem Hyperfast Boost Diode RoHS: Compliant Min Qty: 1 323
  • 1 $7.1600
  • 10 $4.2400
  • 100 $3.6300
  • 250 $3.3200
$3.3200 / $7.1600 Buy Now
Bristol Electronics   30
RFQ
DISTI # STTH1506DPI
TME Diode: rectifying, THT, 600V, 15A, tube, Ifsm: 130A, DOP3I, 16ns Min Qty: 1 38
  • 1 $6.7700
  • 3 $6.0900
  • 10 $4.8400
  • 30 $4.5100
  • 90 $4.1900
$4.1900 / $6.7700 Buy Now
DISTI # STTH1506DPI
Avnet Silica Diode Switching 600V 15A 2-Pin(2+Tab) DOP3I Tube (Alt: STTH1506DPI) RoHS: Compliant Min Qty: 30 Package Multiple: 30 Lead time: 17 Weeks, 0 Days Silica - 1620
Buy Now
DISTI # STTH1506DPI
EBV Elektronik Diode Switching 600V 15A 2-Pin(2+Tab) DOP3I Tube (Alt: STTH1506DPI) RoHS: Compliant Min Qty: 30 Package Multiple: 30 Lead time: 26 Weeks, 0 Days EBV - 1110
Buy Now
LCSC 15A Independent Type 3.6V15A 600V DOP-3I Diodes - General Purpose ROHS 27
  • 1 $7.3966
  • 10 $6.2389
  • 30 $5.6030
  • 90 $4.8844
  • 510 $4.5650
  • 1,200 $4.4211
$4.4211 / $7.3966 Buy Now
Win Source Electronics DIODE GEN PURP 600V 15A DOP3I 22000
  • 11 $4.8532
  • 26 $3.9822
  • 39 $3.8577
  • 54 $3.7333
  • 70 $3.6088
  • 93 $3.2355
$3.2355 / $4.8532 Buy Now

Part Details for STTH1506DPI

STTH1506DPI CAD Models

  • Part Symbol

    Part Symbol

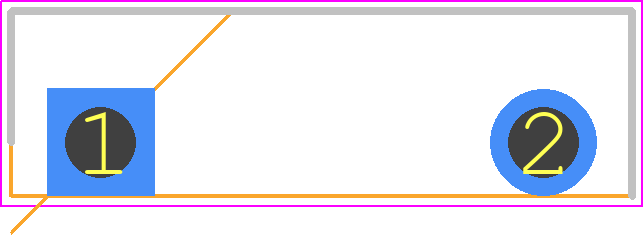

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

STTH1506DPI Part Data Attributes

Parametric Data
STTH1506DPI STMicroelectronics
Buy Now Datasheet
Compare Parts:
STTH1506DPI STMicroelectronics 600 V, 15 A 2-lead tandem Hyperfast Boost Diode
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer STMICROELECTRONICS
Package Description PLASTIC, DOP31, 2 PIN
Pin Count 2
Reach Compliance Code not_compliant
ECCN Code EAR99
HTS Code 8541.10.00.80
Factory Lead Time 25 Weeks
Samacsys Manufacturer STMicroelectronics
Application HYPER FAST RECOVERY
Case Connection ISOLATED
Configuration SINGLE
Diode Element Material SILICON
Diode Type RECTIFIER DIODE
Forward Voltage-Max (VF) 2.4 V
JESD-30 Code R-PSFM-T2
JESD-609 Code e3
Non-rep Pk Forward Current-Max 130 A
Number of Elements 1
Number of Phases 1
Number of Terminals 2
Operating Temperature-Max 150 °C
Output Current-Max 15 A
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style FLANGE MOUNT
Peak Reflow Temperature (Cel) NOT SPECIFIED
Qualification Status Not Qualified
Rep Pk Reverse Voltage-Max 600 V
Reverse Recovery Time-Max 0.035 µs
Surface Mount NO
Terminal Finish Matte Tin (Sn) - annealed
Terminal Form THROUGH-HOLE
Terminal Position SINGLE
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED

Alternate Parts for STTH1506DPI

This table gives cross-reference parts and alternative options found for STTH1506DPI. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of STTH1506DPI, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
STTH15L06FP STMicroelectronics $1.1368 600 V, 15 A Low Drop Ultrafast Diode STTH1506DPI vs STTH15L06FP
