SY100EP11UKG Information

SY100EP11UKG by Microchip Technology Inc is a Clock Driver.
Clock Drivers are under the broader part category of Logic Components.

Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.

Price & Stock for SY100EP11UKG

Part # Distributor Description Stock Price Buy
DISTI # 71Y4415
Newark 2.5-5V 1:2 Pecl Fanout Buffer 8 Msop 3X3Mm Tube Rohs Compliant: Yes |Microchip SY100EP11UKG RoHS: Compliant Min Qty: 400 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 100 $1.7700
$1.7700 Buy Now
DISTI # SY100EP11UKG
Avnet Americas Clock Buffer, Fanout, 2 Outputs, 4.5 V to 5.5 V, 8 Pins, MSOP - Rail/Tube (Alt: SY100EP11UKG) RoHS: Compliant Min Qty: 400 Package Multiple: 100 Lead time: 4 Weeks, 0 Days Container: Tube 0
  • 400 $1.8125
  • 600 $1.7833
  • 1,000 $1.7544
  • 2,000 $1.7254
  • 4,000 $1.6965
$1.6965 / $1.8125 Buy Now
DISTI # SY100EP11UKG
Microchip Technology Inc 2.5-5V 1:2 PECL Fanout Buffer, MSOP, Projected EOL: 2034-05-17 COO: Thailand ECCN: EAR99 RoHS: Compliant Lead time: 7 Weeks, 0 Days Container: Tube 44500
  • 1 $2.2500
  • 25 $1.8800
  • 100 $1.7100
  • 1,000 $1.6500
  • 5,000 $1.6300
$1.6300 / $2.2500 Buy Now
NAC 2.5-5V 1:2 PECL Fanout Buffer - Package: 8 MSOP 3x3mm TUBE RoHS: Compliant Min Qty: 200 Package Multiple: 100 Container: Tube 0
  • 1 $2.2300
  • 100 $2.0100
  • 500 $1.8600
  • 1,000 $1.8100
$1.8100 / $2.2300 Buy Now
DISTI # SY100EP11UKG
Avnet Silica Clock Buffer Fanout 2 Outputs 45 V to 55 V 8 Pins MSOP (Alt: SY100EP11UKG) RoHS: Compliant Min Qty: 100 Package Multiple: 100 Lead time: 6 Weeks, 0 Days Silica - 0
Buy Now
DISTI # SY100EP11UKG
EBV Elektronik Clock Buffer Fanout 2 Outputs 45 V to 55 V 8 Pins MSOP (Alt: SY100EP11UKG) RoHS: Compliant Min Qty: 100 Package Multiple: 100 Lead time: 5 Weeks, 0 Days EBV - 0
Buy Now

Part Details for SY100EP11UKG

SY100EP11UKG CAD Models

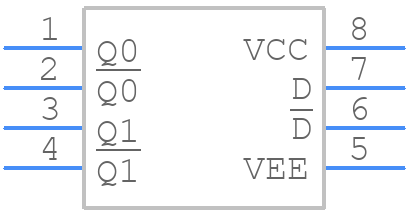

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

SY100EP11UKG Part Data Attributes

Parametric Data
SY100EP11UKG Microchip Technology Inc
Buy Now Datasheet
Compare Parts:
SY100EP11UKG Microchip Technology Inc 100E SERIES, LOW SKEW CLOCK DRIVER, 2 TRUE OUTPUT(S), 0 INVERTED OUTPUT(S), PDSO8
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MICROCHIP TECHNOLOGY INC
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Factory Lead Time 4 Weeks
Samacsys Manufacturer Microchip
Additional Feature CAN ALSO OPERATES WITH 3.3V, 5V NOMINAL SUPPLY
Family 100E
Input Conditioning DIFFERENTIAL
JESD-30 Code S-PDSO-G8
JESD-609 Code e4
Length 3 mm
Logic IC Type LOW SKEW CLOCK DRIVER
Moisture Sensitivity Level 1
Number of Functions 1
Number of Inverted Outputs
Number of Terminals 8
Number of True Outputs 2
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Package Body Material PLASTIC/EPOXY
Package Code TSSOP
Package Shape SQUARE
Package Style SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Packing Method TUBE
Peak Reflow Temperature (Cel) 260
Propagation Delay (tpd) 0.31 ns
Qualification Status Not Qualified
Same Edge Skew-Max (tskwd) 0.02 ns
Seated Height-Max 1.1 mm
Supply Voltage-Max (Vsup) 2.625 V
Supply Voltage-Min (Vsup) 2.375 V
Supply Voltage-Nom (Vsup) 2.5 V
Surface Mount YES
Technology ECL
Temperature Grade INDUSTRIAL
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form GULL WING
Terminal Pitch 0.65 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 40
Width 3 mm
fmax-Min 3000 MHz

Alternate Parts for SY100EP11UKG

This table gives cross-reference parts and alternative options found for SY100EP11UKG. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SY100EP11UKG, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
853S011BMILF Renesas Electronics Corporation $4.0208 Low Skew,1-to-2,Differential-to-2.5V,3.3V LVPECL/ECL Fanout Buffer, SOIC97/Tube SY100EP11UKG vs 853S011BMILF
SY100EP11UKG-TR Microchip Technology Inc $3.6350 100E SERIES, LOW SKEW CLOCK DRIVER, 2 TRUE OUTPUT(S), 0 INVERTED OUTPUT(S), PDSO8 SY100EP11UKG vs SY100EP11UKG-TR
853S011BGILF Renesas Electronics Corporation $3.6323 Low Skew,1-to-2,Differential-to-2.5V,3.3V LVPECL/ECL Fanout Buffer, TSSOP96/Tube SY100EP11UKG vs 853S011BGILF
853S011BGILFT Renesas Electronics Corporation Check for Price Low Skew,1-to-2,Differential-to-2.5V,3.3V LVPECL/ECL Fanout Buffer, TSSOP0/Reel SY100EP11UKG vs 853S011BGILFT

SY100EP11UKG Related Parts

SY100EP11UKG Frequently Asked Questions (FAQ)

  • The recommended operating voltage range for the SY100EP11UKG is 3.3V ± 10%.

  • To ensure reliable data transmission, ensure that the input signal is within the specified voltage range, and that the output is properly terminated. Also, ensure that the clock frequency is within the specified range and that the device is properly powered.

  • The SY100EP11UKG supports data rates up to 3.2 Gbps.

  • To handle signal integrity issues, ensure that the PCB layout is designed to minimize signal reflections and crosstalk. Also, use proper termination and ensure that the signal traces are properly matched.

  • The power consumption of the SY100EP11UKG is typically around 150 mW, but this can vary depending on the operating frequency and voltage.
