Capacitors / Tantalum Capacitors / T520X337M010ATE010
Datasheets
T520X337M010ATE010 by: KEMET Corporation

Tantalum Capacitor, Polarized, Tantalum (solid Polymer), 10V, 20% +Tol, 20% -Tol, 330uF, Surface Mount, 2917, CHIP

Part Details for T520X337M010ATE010 by KEMET Corporation

Results Overview of T520X337M010ATE010 by KEMET Corporation

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

T520X337M010ATE010 Information

T520X337M010ATE010 by KEMET Corporation is a Tantalum Capacitor.
Tantalum Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for T520X337M010ATE010

Part # Distributor Description Stock Price Buy
DISTI # 18AC8008
Newark Cap, 330Μf, 10V, 20% Rohs Compliant: Yes |Kemet T520X337M010ATE010 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 1988
  • 1 $5.5000
  • 10 $5.2600
  • 25 $5.0600
  • 50 $4.8800
  • 100 $4.6600
  • 250 $4.4800
  • 500 $4.3300
$4.3300 / $5.5000 Buy Now
DISTI # 68K7054
Newark Tantalum Capacitor, 330Uf, 10V, Full Reel, Capacitance:330Μf, Capacitance Tolerance:± 20%, Voltage(Dc):10V, Manufacturer Size Code:X, Esr:0.01Ohm, Capacitor Case/Package:2917 [7343 Metric], Product Length:7.3Mm, Product Width:4.3Mmrohs Compliant: Yes |Kemet T520X337M010ATE010 RoHS: Compliant Min Qty: 500 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 400 $4.3600
  • 800 $4.2400
  • 1,600 $3.9900
  • 2,400 $3.8000
$3.8000 / $4.3600 Buy Now
DISTI # T520X337M010ATE010
Avnet Americas Tantalum Polymer Capacitor, 330 uF, 10 V, ? 20%, X, 10 mohm, 2917 [7343-43 Metric] - Tape and Reel (Alt: T520X337M010ATE010) RoHS: Compliant Min Qty: 500 Package Multiple: 500 Lead time: 23 Weeks, 0 Days Container: Reel 0
  • 500 $1.5406
  • 1,000 $1.5327
  • 2,000 $1.5035
  • 3,000 $1.4957
  • 4,000 $1.4880
$1.4880 / $1.5406 Buy Now
Bristol Electronics   1000
RFQ
Bristol Electronics   768
RFQ
DISTI # T520X337M010ATE010
TME Capacitor: tantalum-polymer, low ESR, 330uF, 10VDC, X, 2917, SMD Min Qty: 1 29
  • 1 $10.4700
  • 10 $8.3700
  • 100 $6.5900
  • 500 $4.7900
  • 2,000 $4.1900
$4.1900 / $10.4700 Buy Now
Velocity Electronics Our Stock 10
RFQ
DISTI # T520X337M010ATE010
Avnet Abacus Tantalum Polymer Capacitor 330 uF 10 V 20 X 10 mohm 2917 734343 Metric - Tape and Reel (Alt: T520X337M010ATE010) RoHS: Compliant Min Qty: 500 Package Multiple: 500 Lead time: 40 Weeks, 0 Days Container: Reel Abacus - 1000
Buy Now
Vyrian Capacitors 10780
RFQ

Part Details for T520X337M010ATE010

T520X337M010ATE010 CAD Models

  • Part Symbol

    Part Symbol

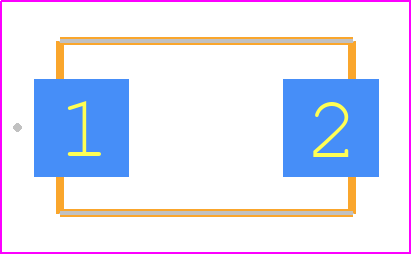

  • Footprint

    footprint

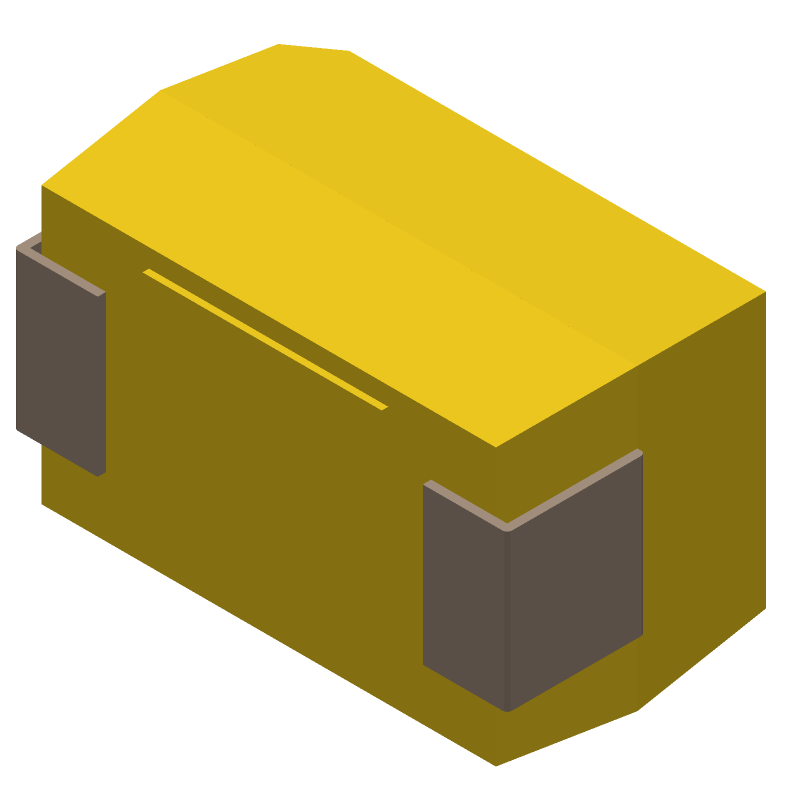

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

T520X337M010ATE010 Part Data Attributes

Parametric Data
T520X337M010ATE010 KEMET Corporation
Buy Now Datasheet
Compare Parts:
T520X337M010ATE010 KEMET Corporation Tantalum Capacitor, Polarized, Tantalum (solid Polymer), 10V, 20% +Tol, 20% -Tol, 330uF, Surface Mount, 2917, CHIP
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer KEMET ELECTRONICS CORP
Package Description CHIP
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8532.21.00.50
Factory Lead Time 21 Weeks
Samacsys Manufacturer KEMET
Additional Feature ESR AND RIPPLE CURRENT IS MEASURED AT 100KHZ
Capacitance 330 µF
Capacitor Type TANTALUM CAPACITOR
Dielectric Material TANTALUM (SOLID POLYMER)
ESR 10 mΩ
Height 4 mm
JESD-609 Code e3
Leakage Current 0.33 mA
Length 7.3 mm
Mounting Feature SURFACE MOUNT
Negative Tolerance 20%
Number of Terminals 2
Operating Temperature-Max 105 °C
Operating Temperature-Min -55 °C
Package Shape RECTANGULAR PACKAGE
Package Style SMT
Packing Method TR, Embossed Plastic, 7 Inch
Polarity POLARIZED
Positive Tolerance 20%
Rated (DC) Voltage (URdc) 10 V
Ripple Current 1250 mA
Size Code 2917
Surface Mount YES
Tan Delta 0.1
Terminal Finish Matte Tin (Sn)
Terminal Shape J BEND
Width 4.3 mm

Alternate Parts for T520X337M010ATE010

This table gives cross-reference parts and alternative options found for T520X337M010ATE010. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of T520X337M010ATE010, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
T520X337M010AME010 KEMET Corporation Check for Price Tantalum Capacitor, Tantalum (solid Polymer), T520X337M010ATE010 vs T520X337M010AME010
T543X337M010AKS0067280 KEMET Corporation Check for Price Tantalum Capacitor, Polarized, Tantalum, 10V, 20% +Tol, 20% -Tol, 330uF, 2917, T520X337M010ATE010 vs T543X337M010AKS0067280
T520X337M010AME035 KEMET Corporation Check for Price Tantalum Capacitor, Tantalum (solid Polymer), T520X337M010ATE010 vs T520X337M010AME035
T543X337M010AKS006 KEMET Corporation Check for Price Tantalum Capacitor, Polarized, Tantalum, 10V, 20% +Tol, 20% -Tol, 330uF, 2917, T520X337M010ATE010 vs T543X337M010AKS006
T520X337M010AHE0407280 KEMET Corporation Check for Price Tantalum Capacitor, Polarized, Tantalum (solid Polymer), 10V, 20% +Tol, 20% -Tol, 330uF, Surface Mount, 2917, CHIP T520X337M010ATE010 vs T520X337M010AHE0407280
T520X337M010ATE025 KEMET Corporation $0.6846 Tantalum Capacitor, Polarized, Tantalum (solid Polymer), 10V, 20% +Tol, 20% -Tol, 330uF, Surface Mount, 2917, CHIP T520X337M010ATE010 vs T520X337M010ATE025
T543X337M010AKE005 KEMET Corporation Check for Price Tantalum Capacitor, Polarized, Tantalum, 10V, 20% +Tol, 20% -Tol, 330uF, 2917, T520X337M010ATE010 vs T543X337M010AKE005
T520Y337M010AHE035C-7280 KEMET Corporation Check for Price Tantalum Capacitor, Polarized, Tantalum, 10V, 20% +Tol, 20% -Tol, 330uF, 2917, T520X337M010ATE010 vs T520Y337M010AHE035C-7280
T543X337M010AKE006 KEMET Corporation Check for Price Tantalum Capacitor, Polarized, Tantalum, 10V, 20% +Tol, 20% -Tol, 330uF, 2917, T520X337M010ATE010 vs T543X337M010AKE006
T520X337M010APE035 KEMET Corporation Check for Price Tantalum Capacitor, Tantalum (solid Polymer), T520X337M010ATE010 vs T520X337M010APE035

T520X337M010ATE010 Related Parts

T520X337M010ATE010 Frequently Asked Questions (FAQ)

  • The recommended soldering temperature for the T520X337M010ATE010 is 260°C for 10 seconds or less, with a peak temperature of 240°C.

  • Yes, the T520X337M010ATE010 is a high-reliability capacitor that meets the requirements of various industries, including aerospace, defense, and medical devices.

  • Yes, the T520X337M010ATE010 is designed to withstand high-vibration environments and meets the requirements of various vibration tests, including IEC 60068-2-6.

  • The ESR of the T520X337M010ATE010 is typically around 10-20 mohms, depending on the frequency and operating conditions.

  • Yes, the T520X337M010ATE010 is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.
