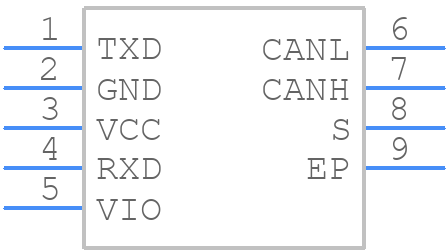

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TJA1051TK/3,118 by NXP Semiconductors
Overview of TJA1051TK/3,118 by NXP Semiconductors
- Distributor Offerings: (11 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Price & Stock for TJA1051TK/3,118
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
31AC7109
|
Newark | Can Transceiver, 5Mbps, -40 To 150Deg C, Ic Interface Type:Can, No. Of Tx Buffers:-, No. Of Rx Buffers:-, Supply Voltage Min:4.5V, Supply Voltage Max:5.5V, Interface Case Style:Hvson, No. Of Pins:8Pins, Product Range:-, Msl:- Rohs Compliant: Yes |Nxp TJA1051TK/3,118 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 20228 |
|
$0.7860 / $0.9280 | Buy Now |
|
DISTI #
41T4483
|
Newark | High-Speed Can Transceiver/ Reel Rohs Compliant: Yes |Nxp TJA1051TK/3,118 RoHS: Compliant Min Qty: 6000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.6010 / $0.7100 | Buy Now |
|
DISTI #
SMC-TJA1051TK/3,118
|
Sensible Micro Corporation | AS6081 Certified Vendor, 1 Yr Warranty RoHS: Not Compliant Min Qty: 25 Lead time: 2 Weeks, 0 Days | 3398 |
|
RFQ | |
|
|
Chip 1 Exchange | INSTOCK | 660 |
|
RFQ | |
|
DISTI #
TJA1051TK/3,118
|
Avnet Silica | CAN 1Mbps Normal/Silent 5V 8-Pin HVSON EP T/R (Alt: TJA1051TK/3,118) RoHS: Compliant Min Qty: 6000 Package Multiple: 6000 Lead time: 12 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
C1S537100628644
|
Chip1Stop | High-speed CAN transceiver RoHS: Compliant pbFree: Yes | 12000 |
|
$0.6075 / $0.6313 | Buy Now |
|
DISTI #
C1S537100745738
|
Chip1Stop | High-speed CAN transceiver RoHS: Compliant pbFree: Yes Container: Cut Tape | 8214 |
|
$0.5540 / $1.4100 | Buy Now |
|
DISTI #
C1S537100944320
|
Chip1Stop | High-speed CAN transceiver RoHS: Compliant pbFree: Yes | 1020 |
|
$0.6376 / $1.5360 | Buy Now |
|
|
CHIPMALL.COM LIMITED | 5Mbps Transceiver HVSON-8-EP(3x3) CAN ICs ROHS | 7723 |
|
$0.5045 / $0.9906 | Buy Now |
|
DISTI #
TJA1051TK/3,118
|
EBV Elektronik | CAN 1Mbps Normal/Silent 5V 8-Pin HVSON EP T/R (Alt: TJA1051TK/3,118) RoHS: Compliant Min Qty: 6000 Package Multiple: 6000 Lead time: 12 Weeks, 0 Days | EBV - 18000 |
|
Buy Now |
Part Details for TJA1051TK/3,118
TJA1051TK/3,118 CAD Models
TJA1051TK/3,118 Part Data Attributes
|
|
TJA1051TK/3,118
NXP Semiconductors
Buy Now
Datasheet
|
Compare Parts:
TJA1051TK/3,118
NXP Semiconductors
TJA1051 - High-speed CAN transceiver SON 8-Pin
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Not Recommended | |
| Ihs Manufacturer | NXP SEMICONDUCTORS | |
| Part Package Code | SON | |
| Package Description | HVSON-8 | |
| Pin Count | 8 | |
| Manufacturer Package Code | SOT782-1 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | NXP | |
| Data Rate | 1000 Mbps | |
| JESD-30 Code | S-PDSO-N8 | |
| JESD-609 Code | e4 | |
| Length | 3 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Number of Transceivers | 1 | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HVSON | |
| Package Equivalence Code | SOLCC8,.12,25 | |
| Package Shape | SQUARE | |
| Package Style | SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Screening Level | AEC-Q100 | |
| Seated Height-Max | 1 mm | |
| Supply Current-Max | 70 mA | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | YES | |
| Telecom IC Type | CAN TRANSCEIVER | |
| Terminal Finish | Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3 mm |
Alternate Parts for TJA1051TK/3,118
This table gives cross-reference parts and alternative options found for TJA1051TK/3,118. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TJA1051TK/3,118, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Description | Manufacturer | Compare |
|---|---|---|---|
| TLE8250SJ | Interface Circuit, PDSO8, SOP-8 | Infineon Technologies AG | TJA1051TK/3,118 vs TLE8250SJ |
| MAX13052AUT | Interface Circuit, 1-Trnsvr, BICMOS, PDSO8, 0.150 INCH, MS-012AA, SOIC-8 | Maxim Integrated Products | TJA1051TK/3,118 vs MAX13052AUT |
| TLE62543GXUMA2 | Interface Circuit, PDSO14, GREEN, PLASTIC, SOP-14 | Infineon Technologies AG | TJA1051TK/3,118 vs TLE62543GXUMA2 |
| TJA1050TD | Interface Circuit, PDSO8, SOP-8 | YAGEO Corporation | TJA1051TK/3,118 vs TJA1050TD |
| ADM3055EBRIZ | 5 kV rms, Signal and Power Isolated, CAN Transceiver for CAN FD | Analog Devices Inc | TJA1051TK/3,118 vs ADM3055EBRIZ |
| 935277283112 | DATACOM, INTERFACE CIRCUIT, PDSO8, 3.90 MM, PLASTIC, MS-012AA, SOT-96-1, SOP-8 | NXP Semiconductors | TJA1051TK/3,118 vs 935277283112 |
| HI-5113PCI | Interface Circuit, PQCC44, QFN-44 | Holt Integrated Circuits Inc | TJA1051TK/3,118 vs HI-5113PCI |
| 935302721112 | DATACOM, INTERFACE CIRCUIT, PDSO8 | NXP Semiconductors | TJA1051TK/3,118 vs 935302721112 |
| HI-5111PSIF | Interface Circuit, PDSO18, WSOIC-18 | Holt Integrated Circuits Inc | TJA1051TK/3,118 vs HI-5111PSIF |
| 935277284512 | DATACOM, INTERFACE CIRCUIT, PDSO14, 3.90 MM, PLASTIC, MS-012, SOT108-1, SOP-14 | NXP Semiconductors | TJA1051TK/3,118 vs 935277284512 |
