TK39N60W by: Toshiba America Electronic Components

TRANSISTOR POWER, FET, FET General Purpose Power

Part Details for TK39N60W by Toshiba America Electronic Components

Overview of TK39N60W by Toshiba America Electronic Components

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Industrial Automation Energy and Power Systems Renewable Energy

Price & Stock for TK39N60W

Part # Distributor Description Stock Price Buy
Bristol Electronics   Min Qty: 1 10
  • 1 $8.9600
  • 4 $5.8240
$5.8240 / $8.9600 Buy Now

Part Details for TK39N60W

TK39N60W CAD Models

  • Part Symbol

    Part Symbol

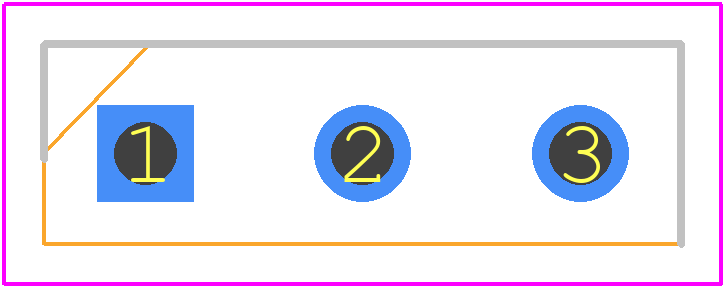

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

TK39N60W Part Data Attributes

Parametric Data
TK39N60W Toshiba America Electronic Components
Buy Now Datasheet
Compare Parts:
TK39N60W Toshiba America Electronic Components TRANSISTOR POWER, FET, FET General Purpose Power
Part Life Cycle Code Active
Ihs Manufacturer TOSHIBA CORP
Package Description FLANGE MOUNT, R-PSFM-T3
Reach Compliance Code unknown
ECCN Code EAR99
Samacsys Manufacturer Toshiba
Avalanche Energy Rating (Eas) 608 mJ
Case Connection DRAIN
Configuration SINGLE WITH BUILT-IN DIODE
DS Breakdown Voltage-Min 600 V
Drain Current-Max (ID) 38.8 A
Drain-source On Resistance-Max 0.065 Ω
FET Technology METAL-OXIDE SEMICONDUCTOR
JEDEC-95 Code TO-247
JESD-30 Code R-PSFM-T3
Number of Elements 1
Number of Terminals 3
Operating Mode ENHANCEMENT MODE
Operating Temperature-Max 150 °C
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style FLANGE MOUNT
Peak Reflow Temperature (Cel) NOT SPECIFIED
Polarity/Channel Type N-CHANNEL
Power Dissipation-Max (Abs) 270 W
Pulsed Drain Current-Max (IDM) 155 A
Surface Mount NO
Terminal Form THROUGH-HOLE
Terminal Position SINGLE
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Transistor Application SWITCHING
Transistor Element Material SILICON

Alternate Parts for TK39N60W
