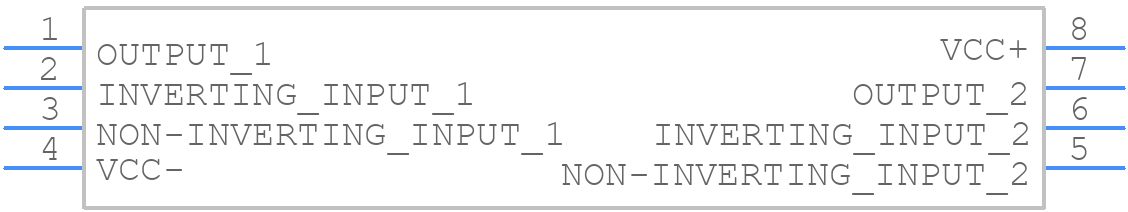

Part Symbol
-
Footprint
-

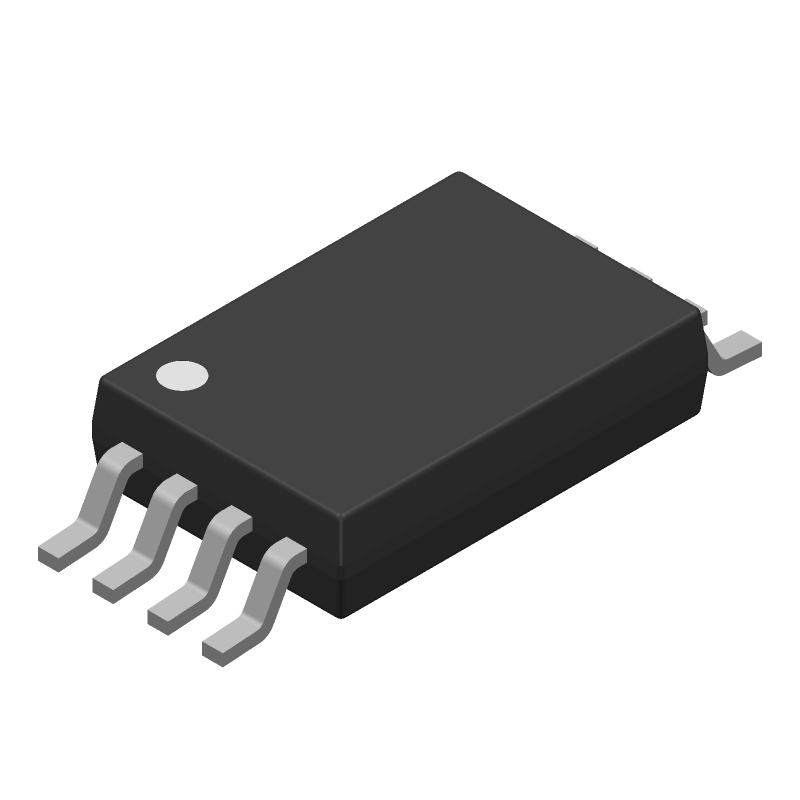

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TL082CPT by STMicroelectronics
Results Overview of TL082CPT by STMicroelectronics
- Distributor Offerings: (10 listings)
- Number of FFF Equivalents: (10 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Industrial Automation
Electronic Manufacturing
TL082CPT Information
TL082CPT by STMicroelectronics is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for TL082CPT
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
07AH7189
|
Newark | Op-Amp, 4Mhz, 70Deg C, Tssop-8, No. Of Channels:2Channels, Gain Bandwidth Product:4Mhz, Supply Voltage Range:6V To 36V, ± 3V To ± 18V, Ic Case/Package:Tssop, No. Of Pins:8Pins, Amplifier Type:General Purpose, Rail To Rail:- Rohs Compliant: Yes |Stmicroelectronics TL082CPT RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 31426 |
|
$0.1610 / $0.2050 | Buy Now |
|
DISTI #
24AC0261
|
Newark | Conditioning & Interfaces Rohs Compliant: Yes |Stmicroelectronics TL082CPT RoHS: Compliant Min Qty: 4000 Package Multiple: 1 Date Code: 0 Container: Reel | 8000 |
|
$0.1350 | Buy Now |
|
DISTI #
TL082CPT
|
Avnet Americas | OP Amp Dual GP ?18V 8-Pin TSSOP T/R - Tape and Reel (Alt: TL082CPT) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 9 Weeks, 0 Days Container: Reel | 8000 |
|
$0.1269 / $0.1349 | Buy Now |
|
DISTI #
07AH7189
|
Avnet Americas | OP Amp Dual GP ?18V 8-Pin TSSOP T/R - Product that comes on tape, but is not reeled (Alt: 07AH7189) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 16 Weeks, 4 Days Container: Ammo Pack | 4267 Partner Stock |
|
$0.2020 / $0.3800 | Buy Now |
|
|
STMicroelectronics | JFET inputs, low input bias current COO: China RoHS: Compliant Min Qty: 1 | 40318 |
|
$0.1600 / $0.2700 | Buy Now |
|
DISTI #
TL082CPT
|
TME | IC: operational amplifier, 4MHz, Ch: 2, TSSOP8, 6÷36VDC, reel,tape Min Qty: 1 | 0 |
|
$0.2270 / $0.4830 | RFQ |
|
DISTI #
TL082CPT
|
Avnet Silica | OP Amp Dual GP 18V 8Pin TSSOP TR (Alt: TL082CPT) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 10 Weeks, 0 Days | Silica - 12000 |
|
Buy Now | |
|
DISTI #
TL082CPT
|
EBV Elektronik | OP Amp Dual GP 18V 8Pin TSSOP TR (Alt: TL082CPT) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 10 Weeks, 0 Days | EBV - 24000 |
|
Buy Now | |
|
|
LCSC | 3mV 4MHz 20pA 2 TSSOP-8 FET Input Amplifiers ROHS | 3365 |
|
$0.1677 / $0.3399 | Buy Now |
|
|
Vyrian | Amplifiers | 24964 |
|
RFQ |
Part Details for TL082CPT
TL082CPT CAD Models
TL082CPT Part Data Attributes
|
|
TL082CPT
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
TL082CPT
STMicroelectronics
JFET inputs, low input bias current
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Part Package Code | SOIC | |
| Package Description | ROHS COMPLIANT, TSSOP-8 | |
| Pin Count | 8 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Factory Lead Time | 16 Weeks, 4 Days | |
| Samacsys Manufacturer | STMicroelectronics | |
| Amplifier Type | OPERATIONAL AMPLIFIER | |
| Architecture | VOLTAGE-FEEDBACK | |
| Average Bias Current-Max (IIB) | 0.02 µA | |
| Bias Current-Max (IIB) @25C | 0.0004 µA | |
| Common-mode Reject Ratio-Nom | 86 dB | |
| Frequency Compensation | YES | |
| Input Offset Current-Max (IIO) | 0.0001 µA | |
| Input Offset Voltage-Max | 13000 µV | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e4 | |
| Length | 4.4 mm | |
| Low-Bias | YES | |
| Low-Offset | NO | |
| Moisture Sensitivity Level | 1 | |
| Neg Supply Voltage Limit-Max | -18 V | |
| Neg Supply Voltage-Nom (Vsup) | -15 V | |
| Number of Functions | 2 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP8,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Packing Method | TAPE AND REEL | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.2 mm | |
| Slew Rate-Min | 8 V/us | |
| Slew Rate-Nom | 16 V/us | |
| Supply Current-Max | 5 mA | |
| Supply Voltage Limit-Max | 18 V | |
| Supply Voltage-Nom (Vsup) | 15 V | |
| Surface Mount | YES | |
| Technology | BIPOLAR | |
| Temperature Grade | COMMERCIAL | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Unity Gain BW-Nom | 4000 | |
| Voltage Gain-Min | 15000 | |
| Width | 3 mm |
Alternate Parts for TL082CPT
This table gives cross-reference parts and alternative options found for TL082CPT. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TL082CPT, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MC34002DR2 | Motorola Mobility LLC | Check for Price | DUAL OP-AMP, 13000uV OFFSET-MAX, 4MHz BAND WIDTH, PDSO8, PLASTIC, SO-8 | TL082CPT vs MC34002DR2 |
| TL081MJG | Motorola Semiconductor Products | Check for Price | Operational Amplifier, 1 Func, 6000uV Offset-Max, JFET, CDIP8, CERAMIC, DIP-8 | TL082CPT vs TL081MJG |
| TL082MJG | Freescale Semiconductor | Check for Price | IC,OP-AMP,DUAL,BIPOLAR/JFET,DIP,8PIN,CERAMIC | TL082CPT vs TL082MJG |
| MC4558U | Motorola Semiconductor Products | Check for Price | Operational Amplifier, 2 Func, 5000uV Offset-Max, BIPolar, CDIP8, CERAMIC, DIP-8 | TL082CPT vs MC4558U |
| TL072MJG883B | Texas Instruments | Check for Price | DUAL OP-AMP, 0uV OFFSET-MAX, 3MHz BAND WIDTH, CDIP8, CERAMIC, DIP-8 | TL082CPT vs TL072MJG883B |
| TL082MJG | Motorola Semiconductor Products | Check for Price | Operational Amplifier, 2 Func, 6000uV Offset-Max, JFET, CDIP8, CERAMIC, DIP-8 | TL082CPT vs TL082MJG |
| NE5532 | Texas Instruments | Check for Price | DUAL OP-AMP, 4000uV OFFSET-MAX, 10MHz BAND WIDTH, PDIP8, 0.300 INCH, PLASTIC, DIP-8 | TL082CPT vs NE5532 |
| 5962-9851502QPX | Texas Instruments | Check for Price | OP-AMP, 6000uV OFFSET-MAX, CDIP8, CERAMIC, DIP-8 | TL082CPT vs 5962-9851502QPX |
| MC1558N | NXP Semiconductors | Check for Price | IC DUAL OP-AMP, 6000 uV OFFSET-MAX, 1 MHz BAND WIDTH, PDIP8, 0.300 INCH, PLASTIC, DIP-8, Operational Amplifier | TL082CPT vs MC1558N |
| MC1558SU | Freescale Semiconductor | Check for Price | IC,OP-AMP,DUAL,BIPOLAR,DIP,8PIN,CERAMIC | TL082CPT vs MC1558SU |
TL082CPT Frequently Asked Questions (FAQ)
-
The maximum power dissipation of the TL082CPT is 670mW, which is calculated based on the maximum junction temperature (TJ) of 150°C and the thermal resistance (RthJA) of 125°C/W.
-
To ensure stability in a unity-gain buffer configuration, it's recommended to add a capacitor (typically 10-100pF) between the output and the inverting input to compensate for the op-amp's internal capacitance and prevent oscillations.
-
For optimal performance, it's recommended to use a symmetrical layout, keep the input and output traces short and away from noise sources, and use a solid ground plane to reduce electromagnetic interference (EMI).
-
The TL082CPT is rated for operation up to 125°C, but its performance may degrade at higher temperatures. If you need to operate in high-temperature environments, consider using a more temperature-resistant op-amp or taking additional thermal management measures.
-
To prevent electrostatic discharge (ESD) damage, use ESD-protective equipment, such as wrist straps and mats, when handling the TL082CPT. You can also add external ESD protection devices, like TVS diodes, to the circuit.
